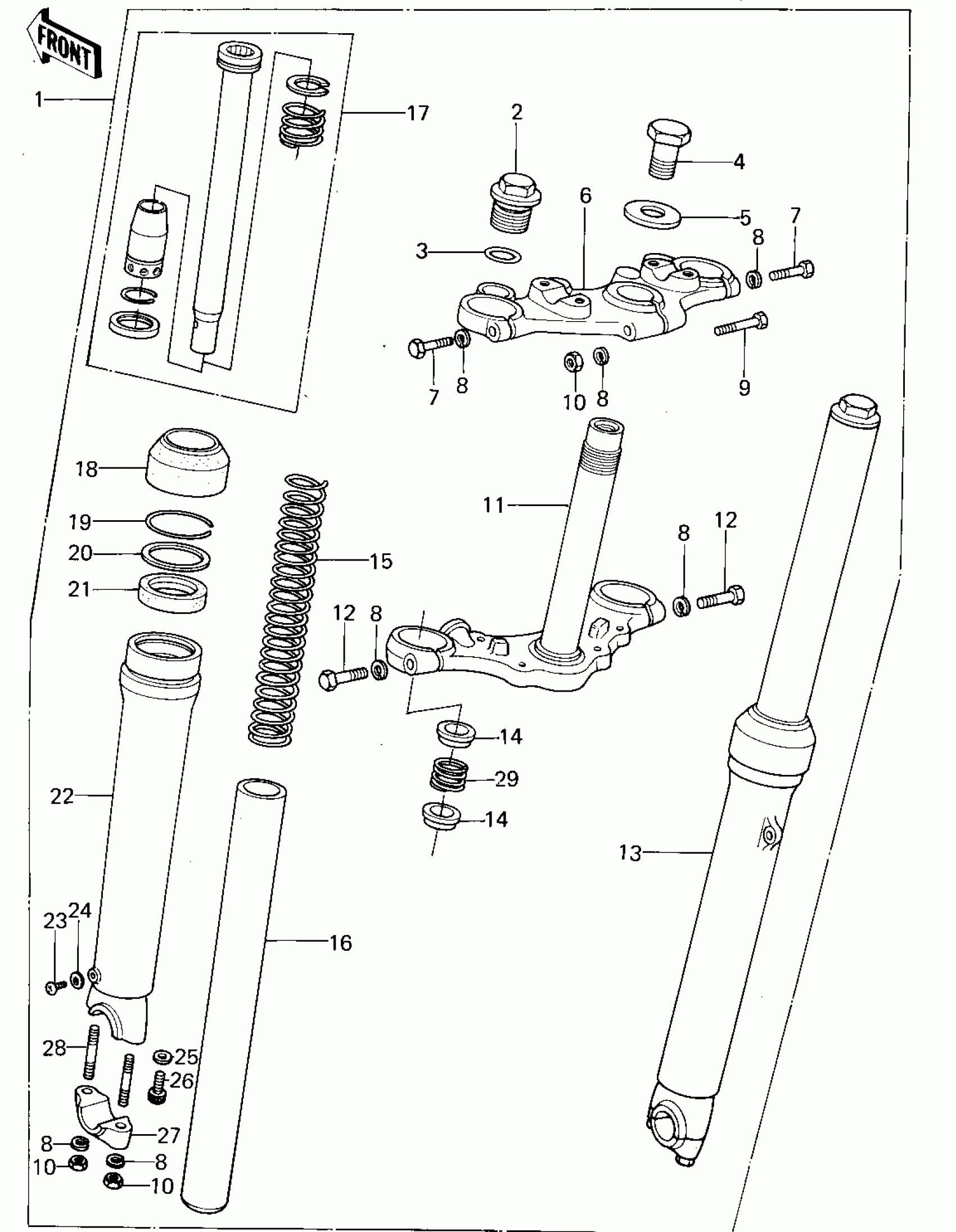

Kawasaki KLR250 FRONT FORK ('78-'79 KL250-A1/A1A/A2) Diagram

#

Description
Price

1

FORK-FRONT

44001-1697

$1,435.25

1

FORK-FRONT

44001-1697

$1,435.25

1

FORK-FRONT

44001-1697

$1,435.25

2

BOLT,FORK TOP

44062-010

$44.40

3

RING-O,FORK TOP

92055-1012

$7.15

4

BOLT STRNG STEM HEAD

44041-007

Unavailable

5

WASHER STRNG STEM HD

44043-016

$10.56

6

HEAD,STEERING STEM

44039-080

$189.06

6

HEAD,STEERING STEM

44039-080

$189.06

7

BOLT-STEERING STEM HD

44041-044

Unavailable

8

WASHER SPRING 8MM

461F0800

Unavailable

9

BOLT-STEERING STEM HD

44041-042

Unavailable

10

NUT,LOCK,8MM

92017-013

$7.89

11

STEM,STEERING

44037-1006

$300.00

12

BOLT,8X3?

92001-1076

Unavailable

13

TUBE,RH,FORK OUTER

44006-1007

$175.98

14

GUIDE,FORK SPRING

44028-033

Unavailable

15

SPRING,FORK INNER,LOW

44026-1015

$36.93

16

TUBE,FORK INNER

44013-1006

$193.96

16

TUBE,FORK INNER

44013-1013

$188.15

17

CYLINDER-FORK

44022-1010

$84.20

17

CYLINDER-FORK

44022-1014

$84.20

16

TUBE,FORK INNER

44013-1006

$193.96

17

CYLINDER-FORK

44022-1010

$84.20

18

DUST SHIELD,FORK

44010-036

Unavailable

19

CIRCLIP-OIL SEAL FIT

44044-012

$31.04

20

WASHER-OIL SEAL FIT

44043-044

$12.86

21

OIL SEAL

44009-016

Unavailable

22

TUBE,LH,FORK OUTER

44005-1007

$159.46

23

SCREW PAN HEAD 4X8

220B0408

Unavailable

24

GASKET,FORK DRAIN PLUG

44045-002

$3.95

25

GASKET

44045-057

$3.71

26

BOLT,SOCKET,FORK CYLINDER

44041-040

$4.93

27

HOLDER-FRONT AXLE

44063-011

$37.23

28

BOLT-STUD,8X30

172G0830

$1.82

29

SPRING,FORK INNER UPP

44026-1014

$9.15
