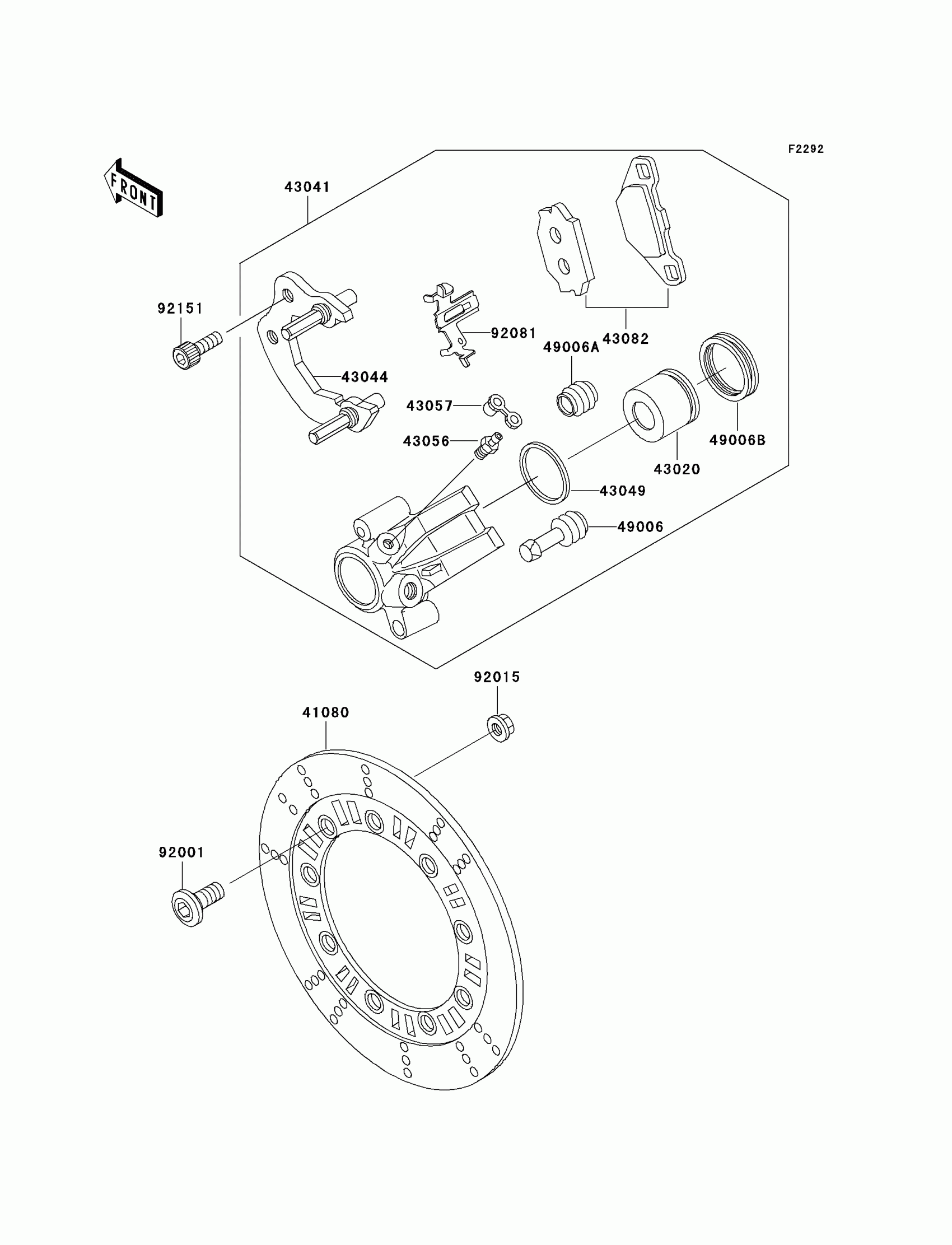

Kawasaki KLR250 Front Brake(D20) Diagram

Description

Price

41080

DISC,FR,SILVER

41080-1145

$359.29

43020

PISTON-COMP-BRAKE

43020-1082

$74.19

43041

CALIPER-ASSY,FR,LH,BLACK

43041-1911-DJ

$433.79

43044

HOLDER-COMP-CALIPER,FR,LH

43044-1027

$141.34

43049

PACKING,PISTON SEAL

43049-1095

$10.38

43056

BREATHER-BRAKE

43056-1054

$22.74

43057

CAP-BREATHER

43057-003

$2.02

43082

PAD-ASSY-BRAKE,FR

43082-1056

$60.03

49006

BOOT,CALIPER

49006-1054

$9.20

49006A

BOOT,CALIPER

49006-1055

$5.78

49006B

BOOT,PISTON

49006-1091

$13.67

92001

BOLT,DISC PLATE,6X16

92001-1987

Unavailable

92015

NUT,LOCK,FLANGED,6MM

92015-1339

$1.20

92081

SPRING,PAD

92081-1341

$12.00

92151

BOLT,SOCKET,8X20

92151-1289

$1.88
