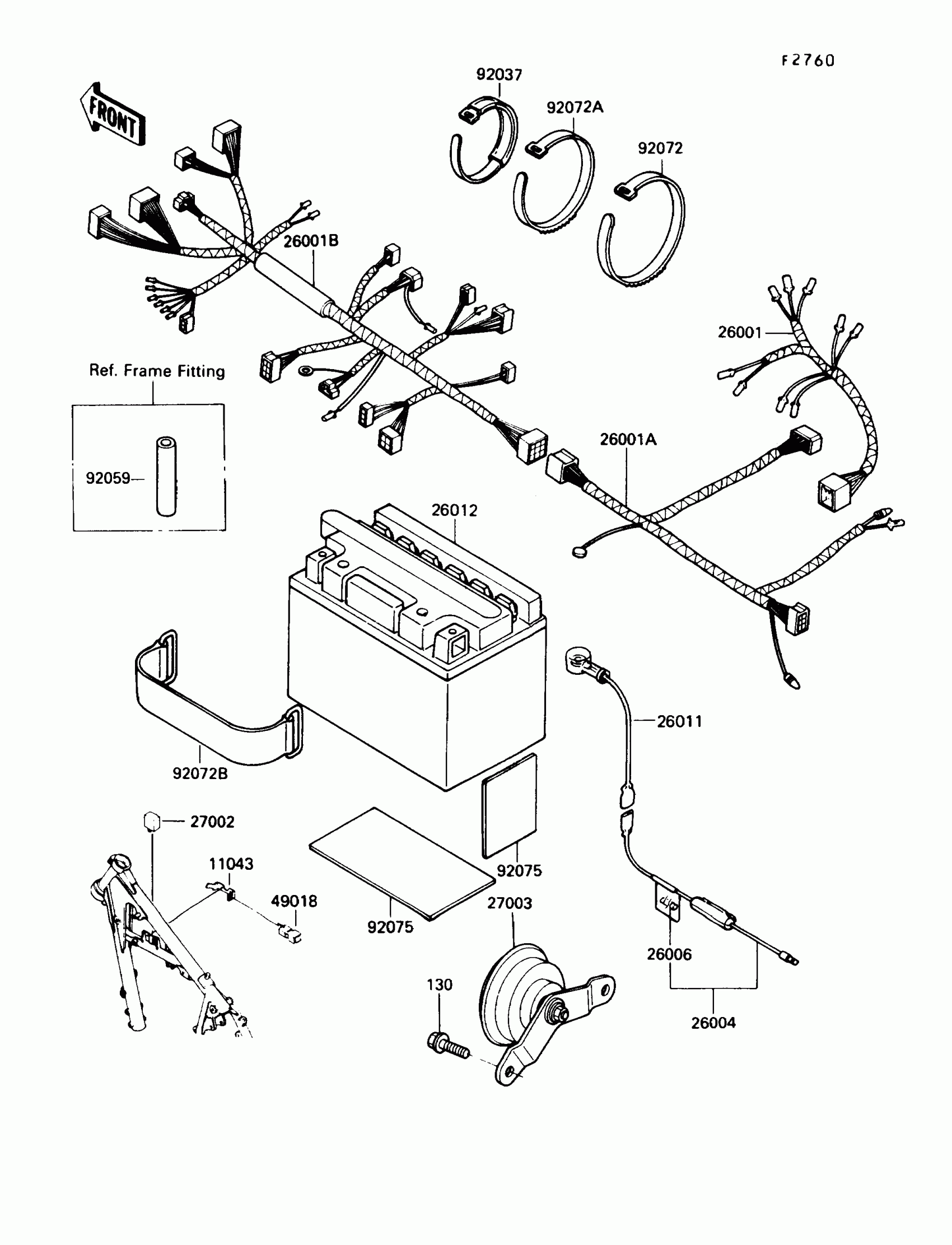

Kawasaki KLR250 Electrical Equipment Diagram

Description

Price

11043

BRACKET,DIODE

11043-1376

$11.49

26001

HARNESS,RR

26001-1586

$48.28

26001A

HARNESS,CNT

26001-1677

Unavailable

26001B

HARNESS,FR(MAIN)

26001-1698

Unavailable

26004

FUSE-ASSY

26004-1055

Unavailable

26006

FUSE,20A,L=30

26006-1056

Unavailable

26011

WIRE-LEAD,BATTERY

26011-1264

$11.15

26012

BATTERY,12V 4AH,FB4L-A

26012-1195

$54.68

27002

RELAY-ASSY,TURN SIGNAL

27002-1053

$53.03

27003

HORN

27003-1306

Unavailable

49018

DIODE

49018-1052

Unavailable

92037

CLAMP,BAND,L=120

92037-1483

Unavailable

92059

TUBE,8X9X38

92059-1799

$2.64

92072

BAND,L=218

92072-032

$3.97

92072A

BAND,L=186

92072-056

$3.97

92072B

BAND,BATTERY,L=105

92072-1173

$10.88

92075

DAMPER,MAT

92075-1582

$7.81

130

BOLT-FLANGED,6X14

130D0614

Unavailable
