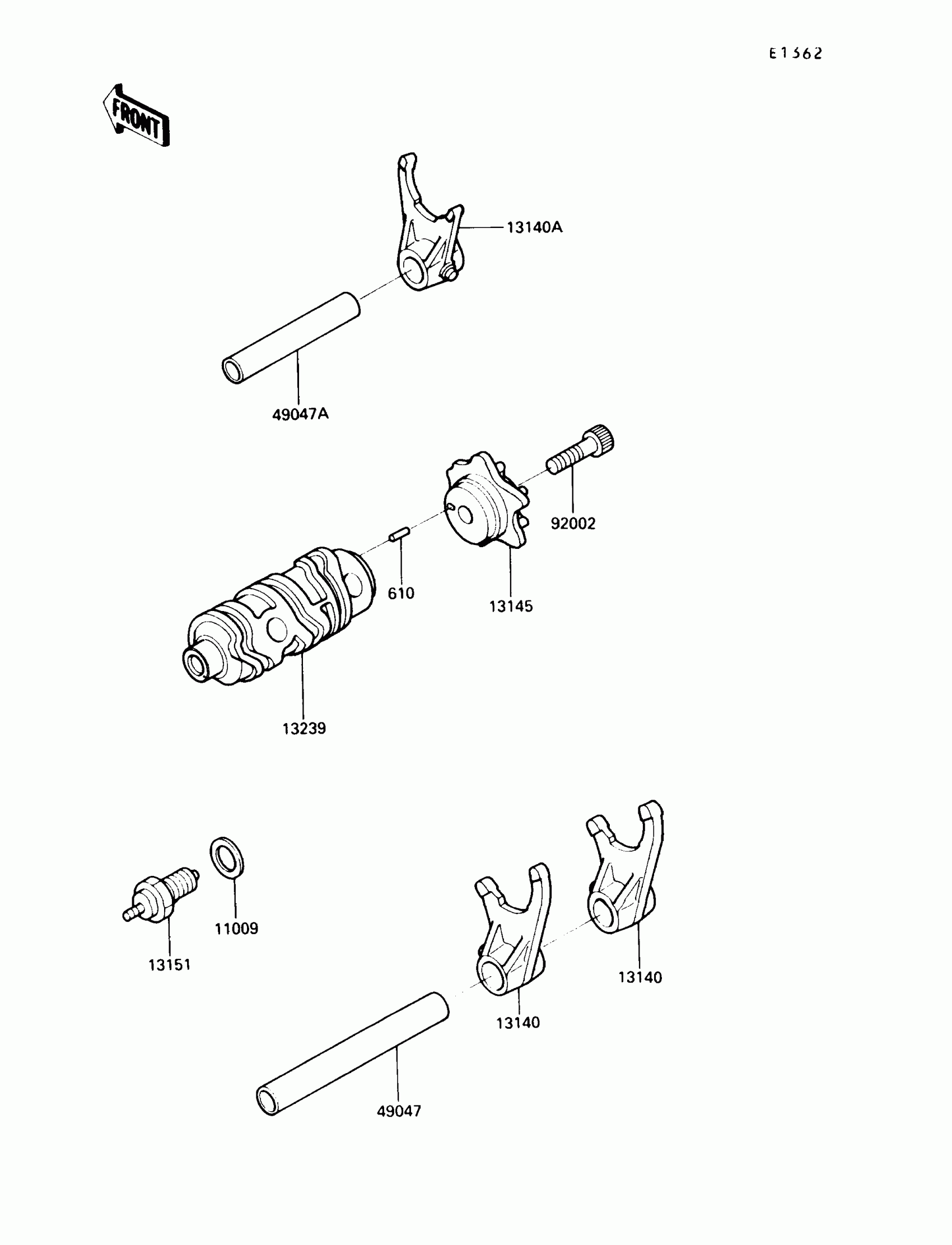

Kawasaki KLR250 Change Drum/Shift Fork Diagram

#

Description
Price

11009

GASKET,10.5X16X1

92065-058

$3.16

13140

FORK-SHIFT

13140-1116

$112.13

13140A

FORK-SHIFT

13140-1117

$96.53

13145

CAM-CHANGE DRUM

13145-1054

$47.30

13151

SWITCH-COMP,NEUTRAL

13151-1007

Unavailable

13239

DRUM-ASSY-CHANGE

13239-1113

$190.36

49047

ROD-SHIFT,L=106.7

49047-1056

$21.76

49047A

ROD-SHIFT,L=71.7

49047-1057

$16.34

92002

BOLT,SOCKET,6X25

92002-1696

$1.66

610

ROLLER,4X10

610A0410

$3.43
