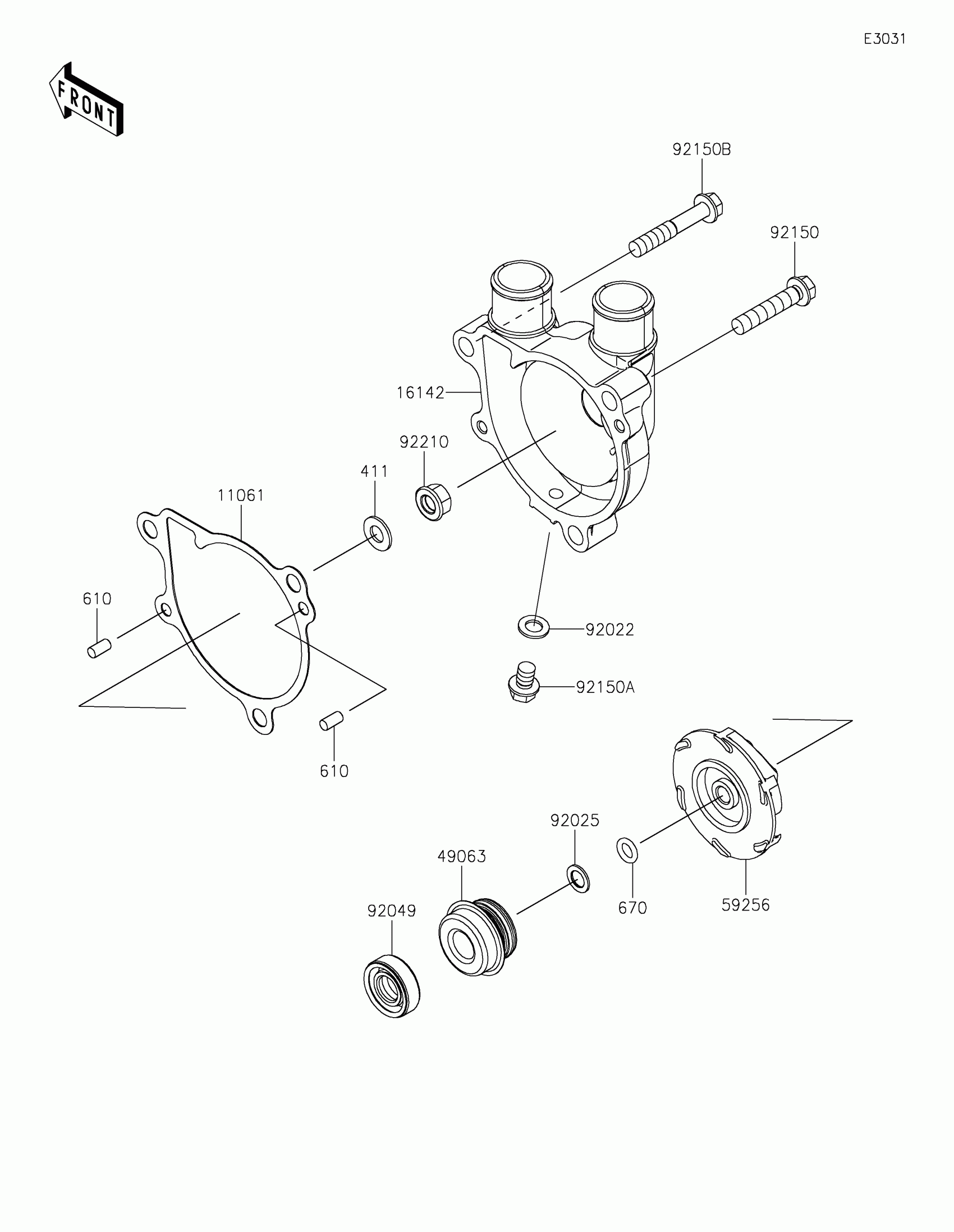

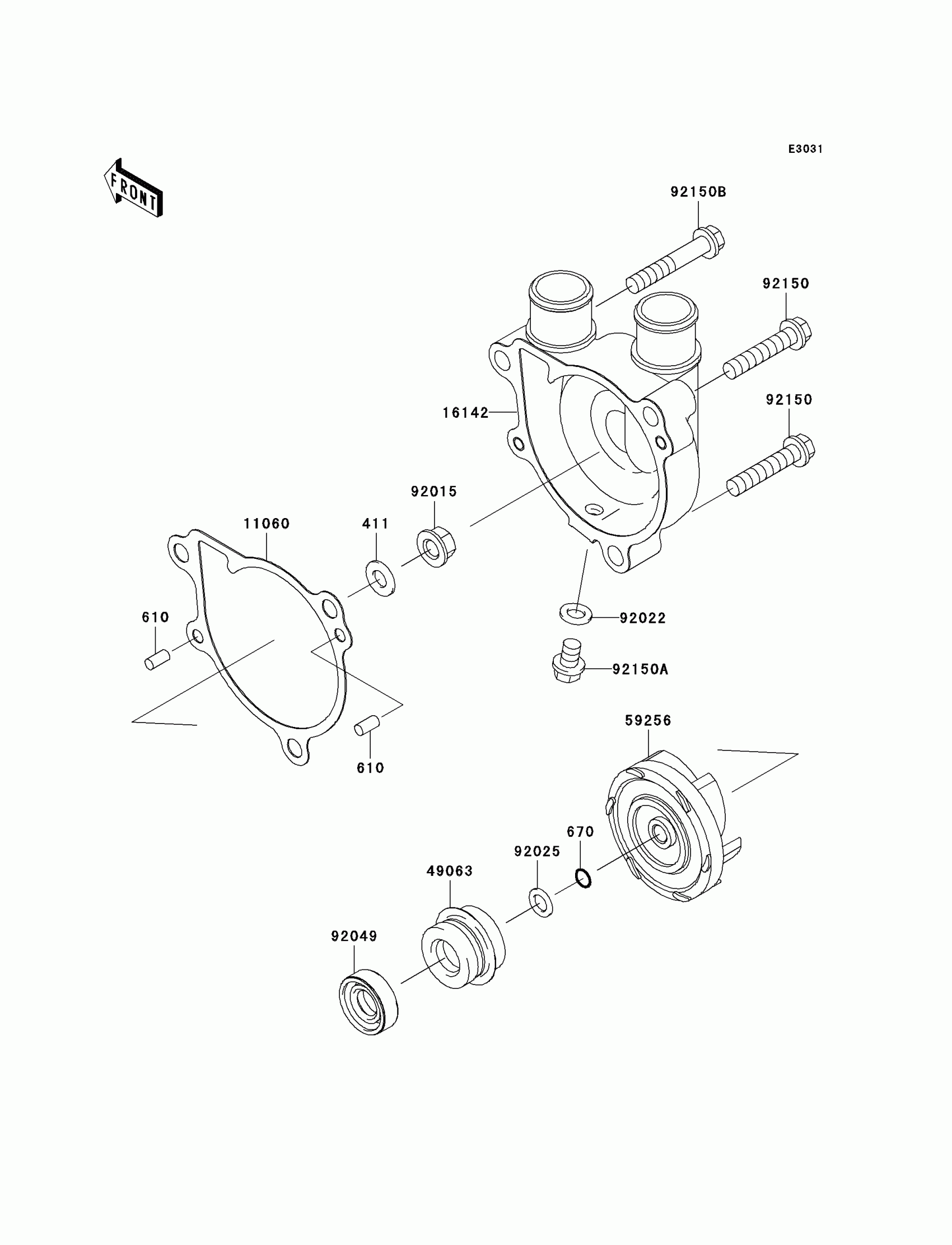

Kawasaki KLR™650 Water Pump Diagram

Description

Price

411

WASHER-PLAIN,6MM

411AB0600

$0.95

610

ROLLER,4X8

610A0408

$3.29

670

O RING,6MM

670B1506

$0.98

11060

GASKET,WATER PUMP COVER

11060-1114

$6.13

16142

COVER-PUMP,WATER

16142-0045

$140.04

49063

SEAL-MECHANICAL

49063-1056

$12.56

59256

IMPELLER

59256-1055

$27.07

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,6.2X11X1

92022-304

$2.76

92025

SHIM,T=0.8

92025-1503

$2.23

92049

SEAL-OIL,SC10227

92049-1157

$7.08

92150

BOLT,6X30

92150-1021

Unavailable

92150A

BOLT,6X8

92150-1966

$3.53

92150B

BOLT,6X35

92150-1967

$3.85
