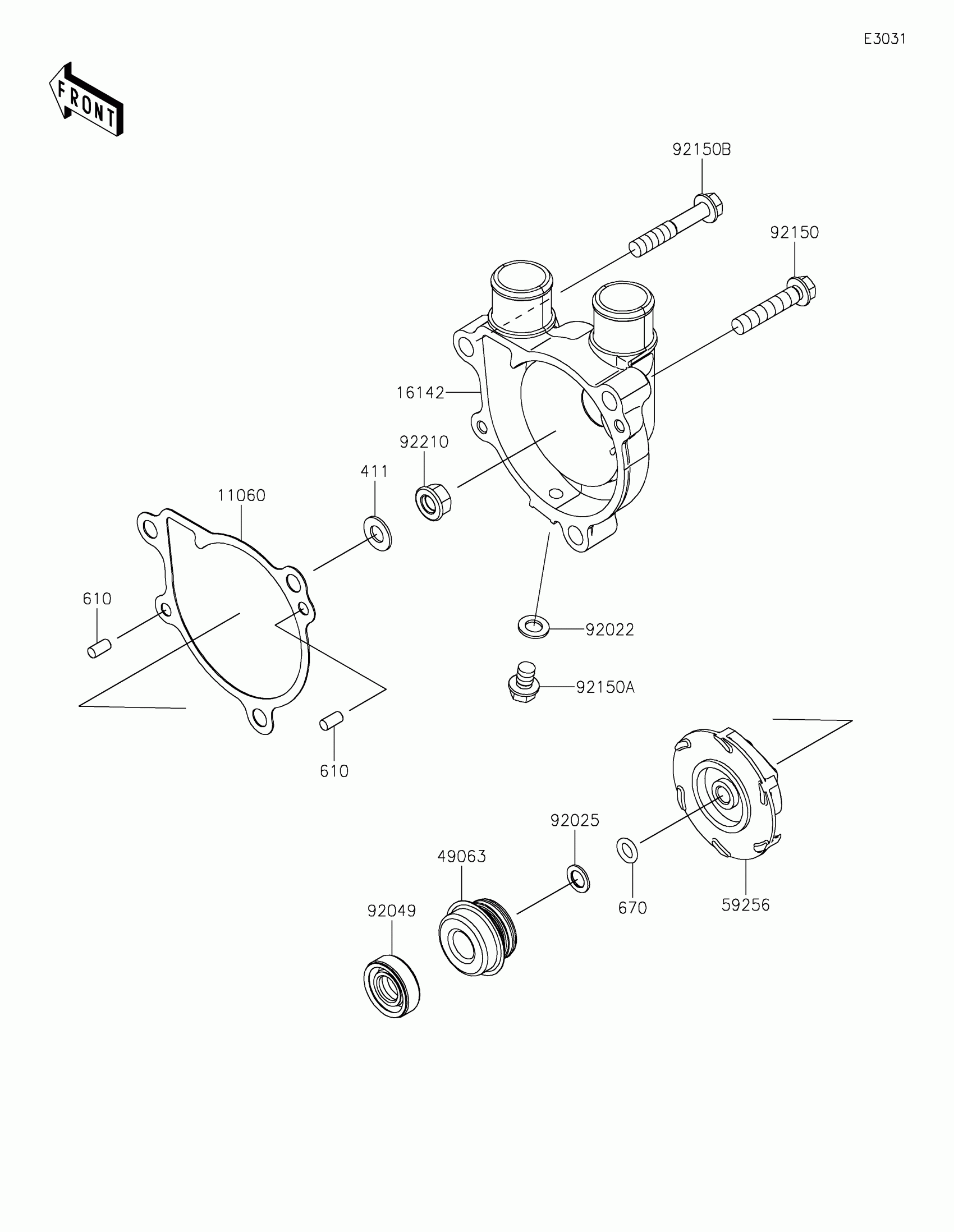

Kawasaki KLR®650 TRAVELER Water Pump Diagram

Description

Price

11060

GASKET,WATER PUMP COVER

11060-1114

$6.39

16142

COVER-PUMP

16142-0067

$113.95

49063

SEAL-MECHANICAL

49063-0002

$13.09

59256

IMPELLER

59256-1055

$27.71

92022

WASHER,6.2X11X1

92022-304

$2.92

92025

SHIM,T=0.8

92025-1503

$2.59

92049

SEAL-OIL,SC10227

92049-1157

$7.38

92150

BOLT,6X30

92150-1021

Unavailable

92150A

BOLT,6X8

92150-1966

$3.53

92150B

BOLT,6X35

92150-1967

$3.85

92210

NUT,FLANGED,6MM

92210-0630

$1.69

411

WASHER-PLAIN,6MM

411AB0600

$1.08

610

ROLLER,4X8

610A0408

$3.43

670

O RING,6MM

670B1506

$1.14
