Description

Price

12004

VALVE-INTAKE

12004-0727

$45.97

12005

VALVE-EXHAUST

12005-0740

$81.93

12009

RETAINER-VALVE SPRING

12009-005

$10.37

12011

COLLET,RETAINER

12011-004

$4.34

12032

TAPPET

12032-1002

$64.28

12037

SHIM,T=2.00

12037-001

$18.02

12037A

SHIM,T=2.05

12037-002

$18.02

12037B

SHIM,T=2.10

12037-003

$18.02

12037C

SHIM,T=2.15

12037-004

$18.02

12037D

SHIM,T=2.20

12037-005

$18.02

12037E

SHIM,T=2.25

12037-006

$18.02

12037F

SHIM,T=2.30

12037-007

Unavailable

12037G

SHIM,T=2.35

12037-008

$18.02

12037H

SHIM,T=2.40

12037-009

$18.02

12037I

SHIM,T=2.45

12037-010

$18.02

12037J

SHIM,T=2.50

12037-011

$18.02

12037K

SHIM,T=2.55

12037-012

$18.02

12037L

SHIM,T=2.60

12037-013

$18.02

12037M

SHIM,T=2.65

12037-014

$18.02

12037N

SHIM,T=2.70

12037-015

$18.02

12037O

SHIM,T=2.75

12037-016

$18.02

12037P

SHIM,T=2.80

12037-017

$15.15

12037Q

SHIM,T=2.85

12037-018

$18.02

12037R

SHIM,T=2.90

12037-019

$18.02

12037S

SHIM,T=2.95

12037-020

$18.02

12037T

SHIM,T=3.00

12037-021

$15.15

12037U

SHIM,T=3.05

12037-022

$18.02

12037V

SHIM,T=3.10

12037-023

$18.02

12037W

SHIM,T=3.15

12037-024

$18.02

12037X

SHIM,T=3.20

12037-025

$18.02

16007

SEAT-SPRING,VALVE

16007-1024

$5.15

49078

SPRING-ENGINE VALVE,INNER

49078-1065

$14.00

49078A

SPRING-ENGINE VALVE,OUTER

49078-1066

$14.00

92049

SEAL-OIL,RV37129.5

92049-016

$14.42

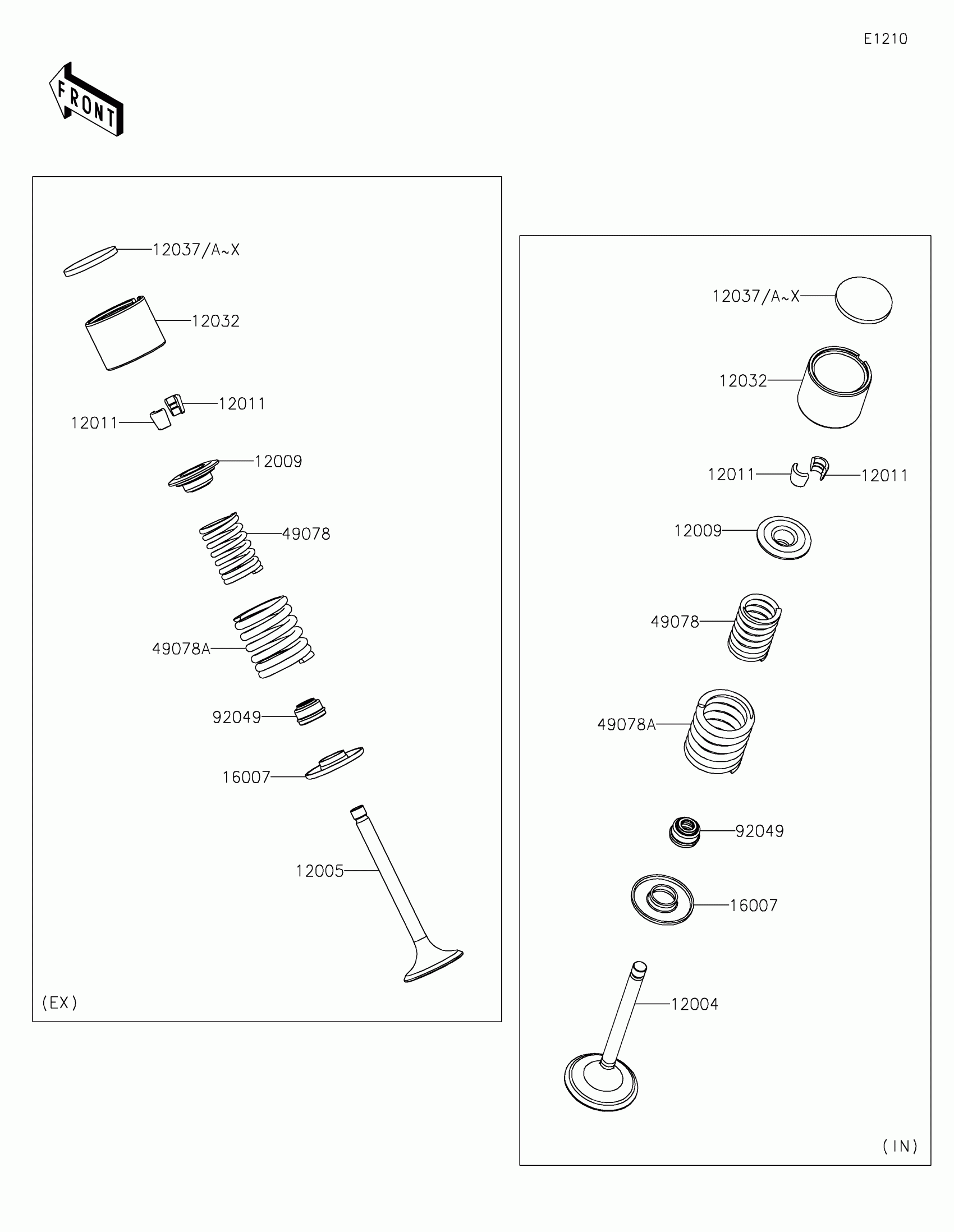

Kawasaki KLR®650 TRAVELER Valve(s) Diagram

SHIM,T=2.30
