Description

Price

13127

SHAFT-TRANSMISSION INPUT,15T

13127-0711

$226.53

13128

SHAFT-TRANSMISSION OUTPUT

13128-0727

$222.24

13144

SPROCKET-OUTPUT,15T

13144-0597

$50.11

13262

GEAR,INPUT 2ND,18T

13262-1489

$86.98

13262A

GEAR,INPUT 4TH,22T

13262-1491

$121.56

13262B

GEAR,INPUT TOP,24T

13262-1492

$128.81

13262C

GEAR,OUTPUT LOW,34T

13262-1493

$132.95

13262D

GEAR,OUTPUT 2ND,26T

13262-1494

$131.21

13262E

GEAR,OUTPUT 3RD,25T

13262-1495

$131.21

13262F

GEAR,OUTPUT 4TH,21T

13262-1618

$124.74

13262G

GEAR,OUTPUT TOP,19T

13262-1619

$127.61

13262H

GEAR,INPUT 3RD,22T

13262-1620

$72.23

92022

WASHER,20.3X30X0.7,STEEL

92022-1026

$5.37

92022A

WASHER,20.5X30X1,STEEL

92022-112

$7.04

92022B

WASHER,TOOTHED,25.3X29.5X0.5

92022-1482

$4.17

92022C

WASHER,25.3X30X0.5

92022-159

$8.37

92022D

WASHER,25.3X32X0.5

92022-225

$4.37

92022E

WASHER,20.5X25.5X0.5

92022-252

$4.93

92024

WASHER,TOOTHED,22.5X31X0.5

92024-038

$4.93

92027

COLLAR,25X32X15.3

92027-1800

$26.36

92028

BUSHING,26X35X14

92028-131

$34.76

92033

RING-SNAP,24MM

92033-026

$6.98

92033A

RING-SNAP,18MM

92033-029

$7.79

92046

BEARING-NEEDLE,KT202614

92046-1170

$14.27

92055

RING-O,21.5X1.5

92055-0196

$3.53

92143

COLLAR,25X32X3.0

92143-1721

$10.25

92200

WASHER

92200-0851

$4.74

92200A

WASHER,2ND GEAR

92200-1170

$3.85

92210

NUT,M20

92210-0605

$30.76

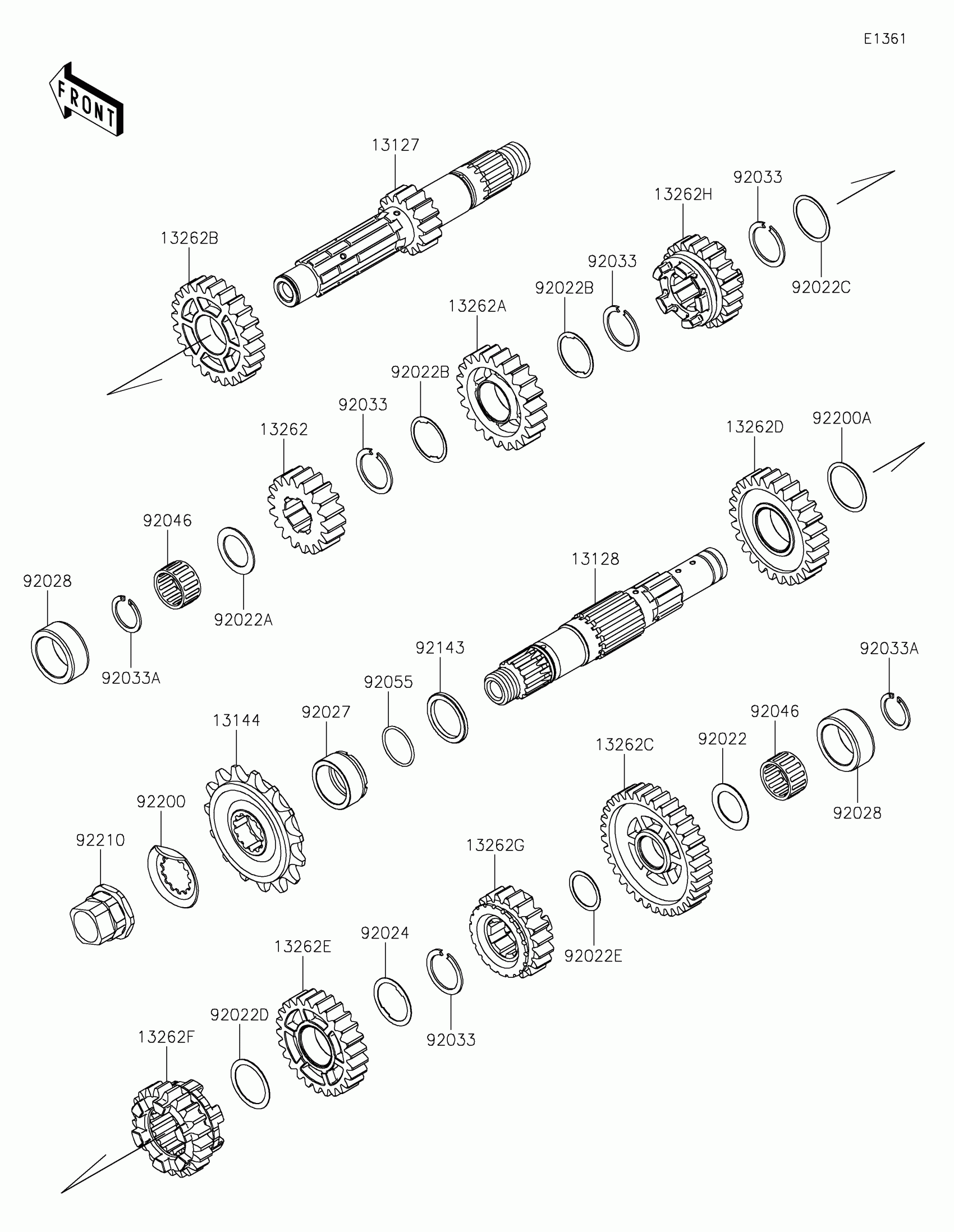

Kawasaki KLR®650 TRAVELER Transmission Diagram
