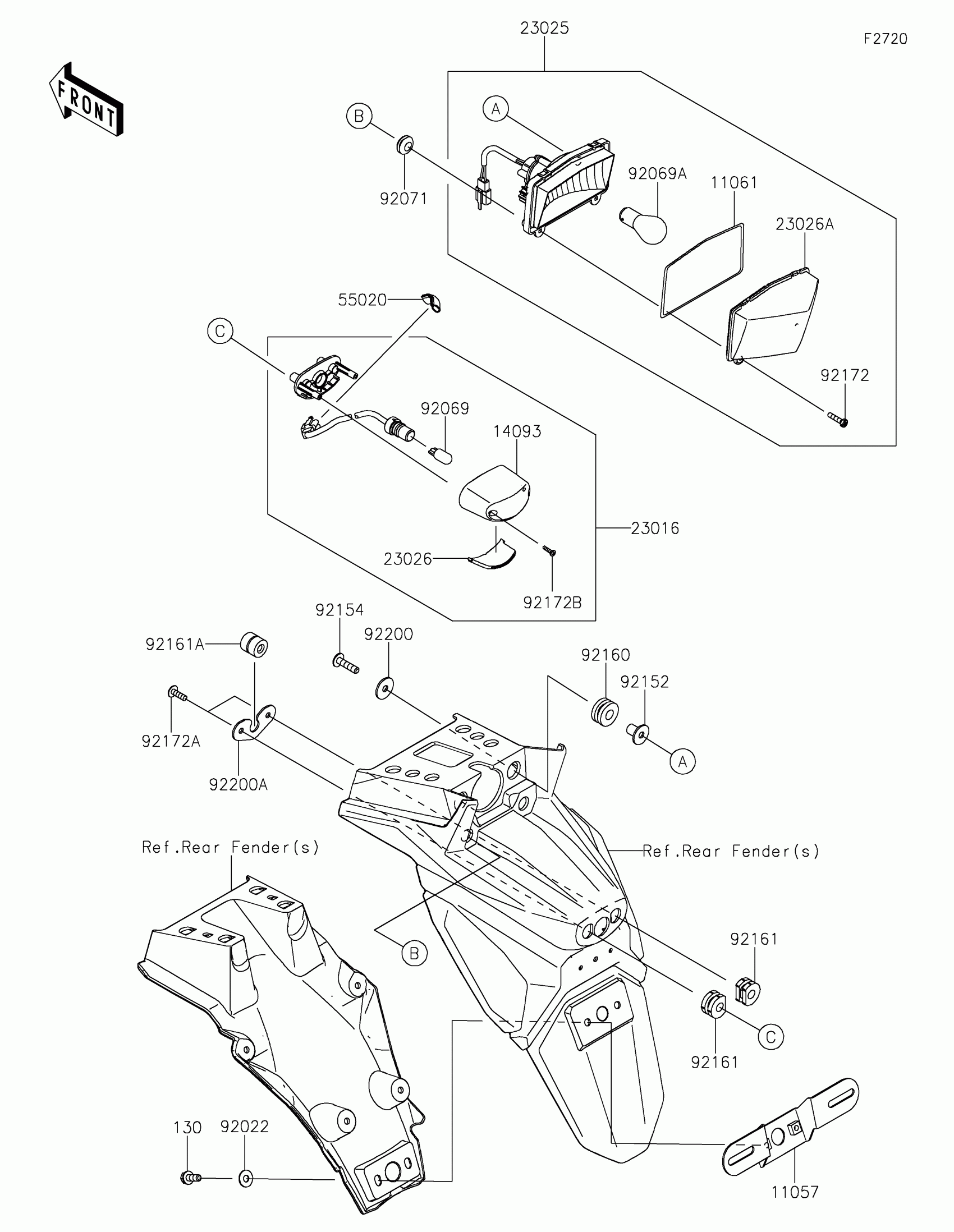

Kawasaki KLR®650 TRAVELER Taillight(s) Diagram

Description

Price

11057

BRACKET,LICENSE PLATE

11057-1046

$12.71

11061

GASKET,TAIL LAMP LENS

11061-0393

$9.34

14093

COVER,LICENSE LAMP

14093-0525

Unavailable

23016

LAMP-ASSY,LICENCE

23016-0604

$73.13

23025

LAMP-TAIL

23025-0392

$65.60

23026

LENS,LICENSE LAMP

23026-0025

$21.16

23026A

LENS,TAIL LAMP

23026-0036

$17.75

55020

GUARD,50X30

55020-2334

$2.80

92022

WASHER,6.5X16X1.0

92022-1093

$1.49

92069

BULB,12V 5W

92069-1016

$4.88

92069A

BULB,12V 21/5W

92069-1084

$5.61

92071

GROMMET

92071-024

$4.14

92152

COLLAR,6.3X9.5X13.5

92152-1942

$5.66

92154

BOLT,SOCKET,6X25

92154-0071

$1.54

92160

DAMPER

92160-1162

$3.82

92161

DAMPER

92161-0776

$4.18

92161A

DAMPER,6X18X18.2

92161-1809

$1.32

92172

SCREW,4.2X19

92172-0411

Unavailable

92172A

SCREW,TAPPING,5X16

92172-0427

$1.81

92172B

SCREW,4X12

92172-0904

$1.32

92200

WASHER,6.5X22X1.6

92200-1087

$3.07

92200A

WASHER

92200-1773

$1.88

130

BOLT-FLANGED,6X16

130BA0616

$0.97
