Description

Price

13107

SHAFT,IDLER

13107-1135

$17.39

13194

CLUTCH-ONEWAY

13194-1089

$111.60

13216

GEAR-COMP,ONEWAY CLUTCH

13216-0044

$409.61

13280

HOLDER

13280-0710

$13.75

14093

COVER

14093-0199

$17.54

16073

INSULATOR

16073-0053

$11.42

21039

BRUSH,CARBON

21039-0004

$120.17

21040

SPRING-BRUSH

21040-0003

$9.47

21163

STARTER-ELECTRIC

21163-0790

$444.78

26006

FUSE,BLADE,30A,GREEN

26006-1006

$4.39

26011

WIRE-LEAD,STARTER

26011-1938

$35.00

27010

SWITCH,MAGNETIC

27010-0948

$133.03

39076

LIMITER,STARTER IDLE GEAR

39076-0021

$219.02

42034

COUPLING

42034-1094

$138.51

59051

GEAR-SPUR,20T & 37T

59051-1133

$118.06

92002

BOLT,FLANGED,6X25

92002-1086

$4.37

92015

NUT,FLANGED,6MM

92015-1367

$2.93

92015A

NUT,STARTER MOTOR

92015-1476

$3.85

92022

WASHER,10.2X20X0.5

92022-1649

$3.43

92026

SPACER

92026-1474

$20.39

92046

BEARING-NEEDLE,K10X14X10

92046-1134

$15.07

92055

RING-O

92055-0136

$6.16

92055A

RING-O

92055-1276

$7.86

92055B

RING-O,4.5X2.0

92055-1370

$4.17

92071

GROMMET

92071-0705

$5.97

92150

BOLT,6X10

92150-1577

$3.17

92153

BOLT

92153-1850

$11.42

92153A

BOLT

92153-1866

$4.14

92172

SCREW

92172-0334

$4.14

92200

WASHER

92200-0386

$4.14

92200A

WASHER,32.2X50

92200-0555

$3.29

120

BOLT-SOCKET,8X18

120CA0818

$2.29

461

WASHER-SPRING,6MM

461DB0600

$0.66

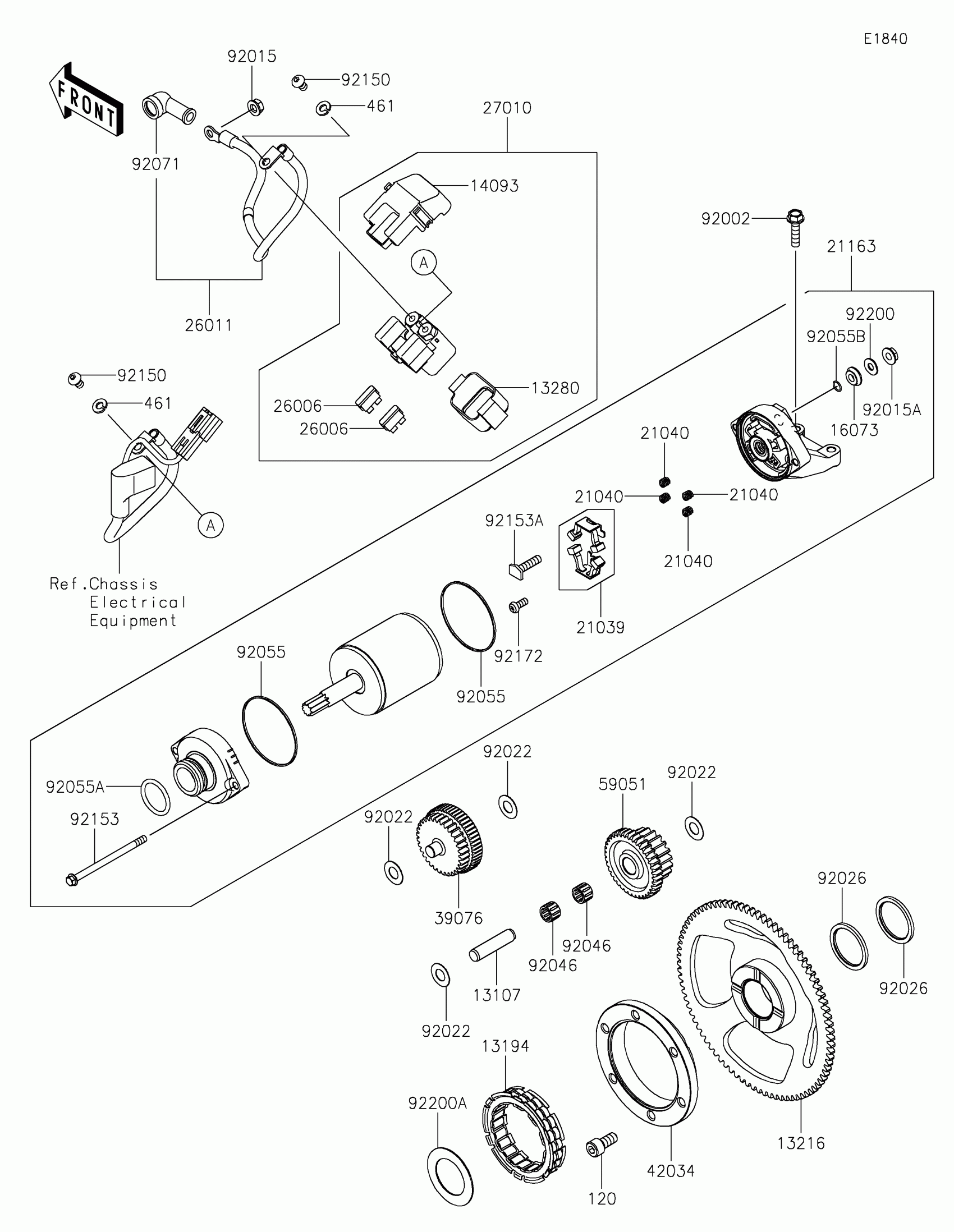

Kawasaki KLR®650 TRAVELER Starter Motor Diagram
