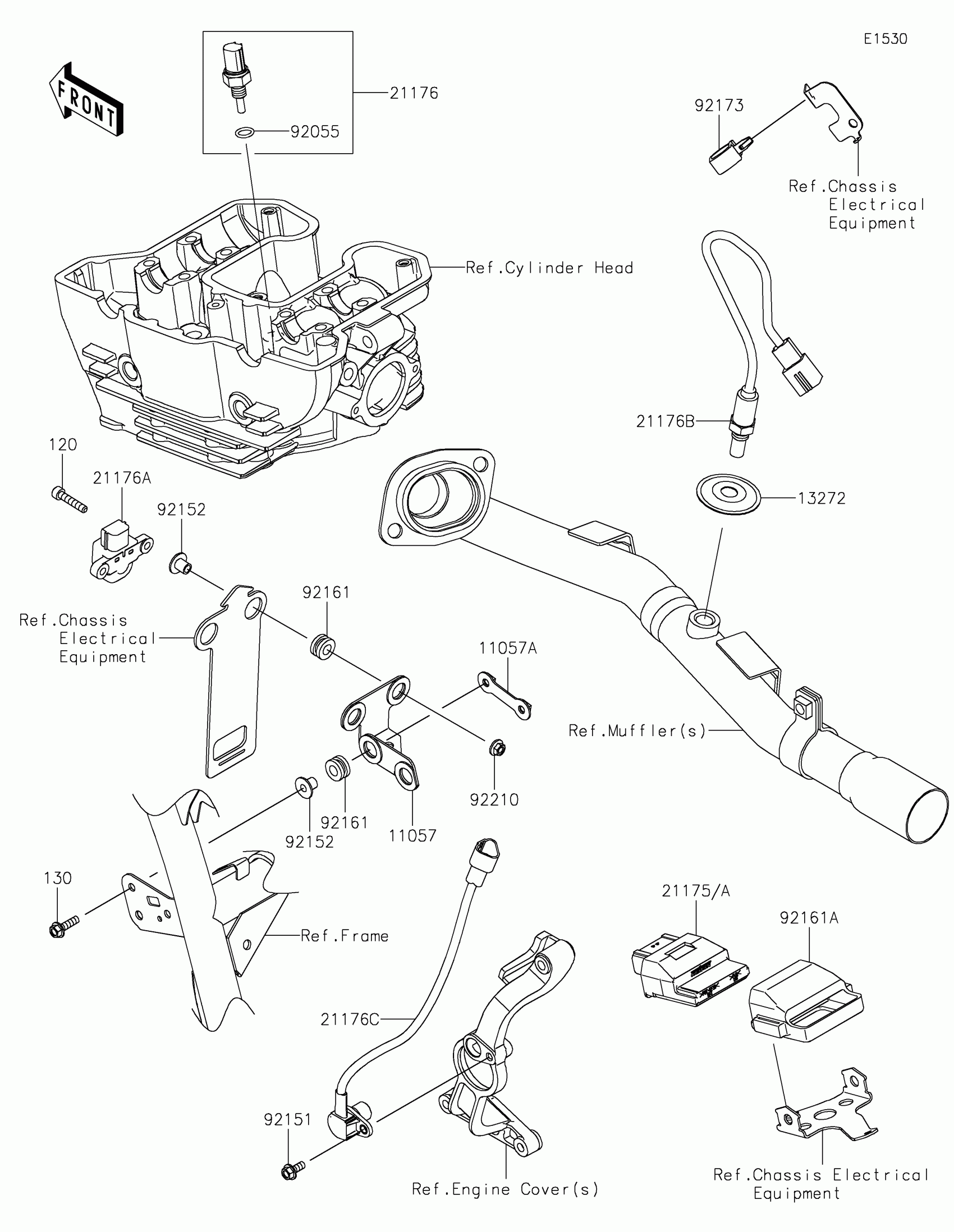

Kawasaki KLR®650 TRAVELER Fuel Injection Diagram

Description

Price

11057

BRACKET,VEHICLE DOWN SENSOR

11057-7429

$2.46

11057A

BRACKET

11057-7434

$2.12

13272

PLATE,O2 SENSOR

13272-3888

$1.59

21175

CONTROL UNIT-ELECTRONIC

21175-1665

$388.27

21175A

CONTROL UNIT-ELECTRONIC

21175-1666

$388.27

21176

SENSOR,WATER TEMP

21176-0009

$63.44

21176A

SENSOR,VEHICLE-DOWN

21176-0067

$92.11

21176B

SENSOR,OXYGEN

21176-0993

$239.98

21176C

SENSOR,SPEED SENSOR

21176-0996

Unavailable

92055

RING-O,9.5X1.9

92055-0016

$7.06

92151

BOLT,FLANGED,5X12

92151-1305

$1.39

92152

COLLAR

92152-1592

$2.44

92161

DAMPER,8X16X8.6

92161-0685

$5.24

92161A

DAMPER,ECU

92161-2358

$7.20

92173

CLAMP

92173-2462

$1.59

92210

NUT,FLANGED,5MM

92210-0007

$2.20

120

BOLT-SOCKET,5X25

120CA0525

$3.86

130

BOLT-FLANGED,5X18

130BB0518

$1.71
