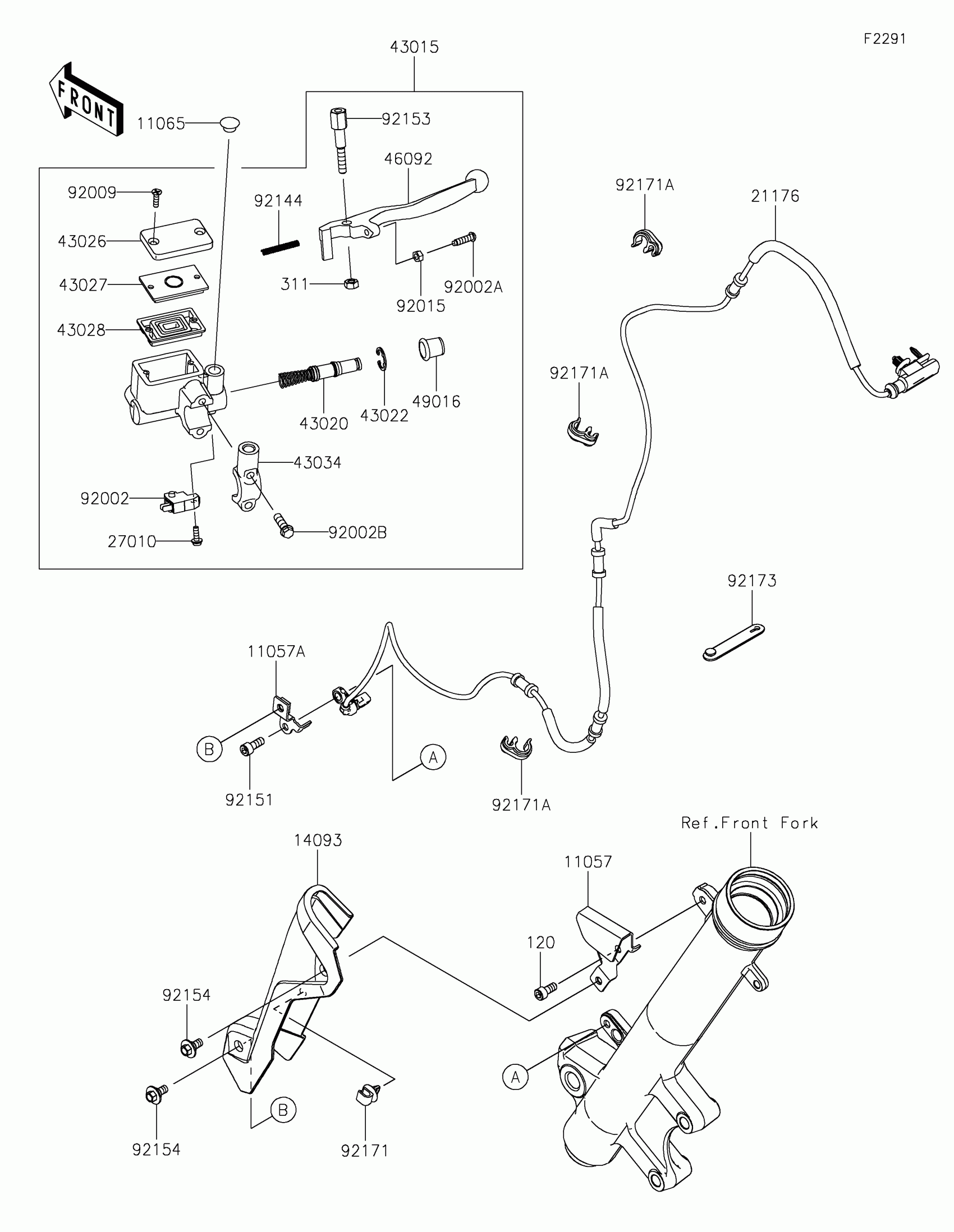

Kawasaki KLR®650 TRAVELER Front Master Cylinder Diagram

Description

Price

11057

BRACKET,ABS SENSOR COVER

11057-4375

$3.90

11057A

BRACKET,SPEED SENSOR

11057-4376

$3.90

11065

CAP,DUMMY

11065-0218

$4.44

14093

COVER,ABS SENSOR

14093-0863

$4.44

21176

SENSOR,SPEED,FR

21176-0994

$271.23

27010

SWITCH,BRAKE

27010-0762

$32.10

43015

CYLINDER-ASSY-MASTER,FR

43015-0788

$312.92

43020

PISTON-COMP-BRAKE

43020-1104

Unavailable

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.69

43026

CAP-BRAKE

43026-1082

$19.58

43027

PLATE-DIAPHRAGM

43027-1057

$3.69

43028

DIAPHRAGM

43028-1061

$12.79

43034

HOLDER-BRAKE

43034-0145

$15.29

46092

LEVER-GRIP,FRONT BRAKE

46092-1175

$20.31

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.90

92002

BOLT,SCREW,4X12

92002-1323

$3.12

92002A

BOLT,ADJUST

92002-1893

$7.36

92002B

BOLT

92002-1894

$4.37

92009

SCREW,4MM

92009-1458

$2.59

92015

NUT,ADJUST

92015-1642

$3.12

92144

SPRING,RETURN

92144-1103

$7.48

92151

BOLT

92151-1166

$1.88

92153

BOLT,LEVER SET

92153-0790

$17.97

92154

BOLT,FLANGED,6X9

92154-0546

$2.97

92171

CLAMP

92171-0640

$3.51

92171A

CLAMP,BRAKE HOSE

92171-1819

$4.85

92173

CLAMP

92173-2199

$1.32

120

BOLT-SOCKET,6X14

120CA0614

$3.68

311

NUT-HEX,6MM

311BB0600

$0.98
