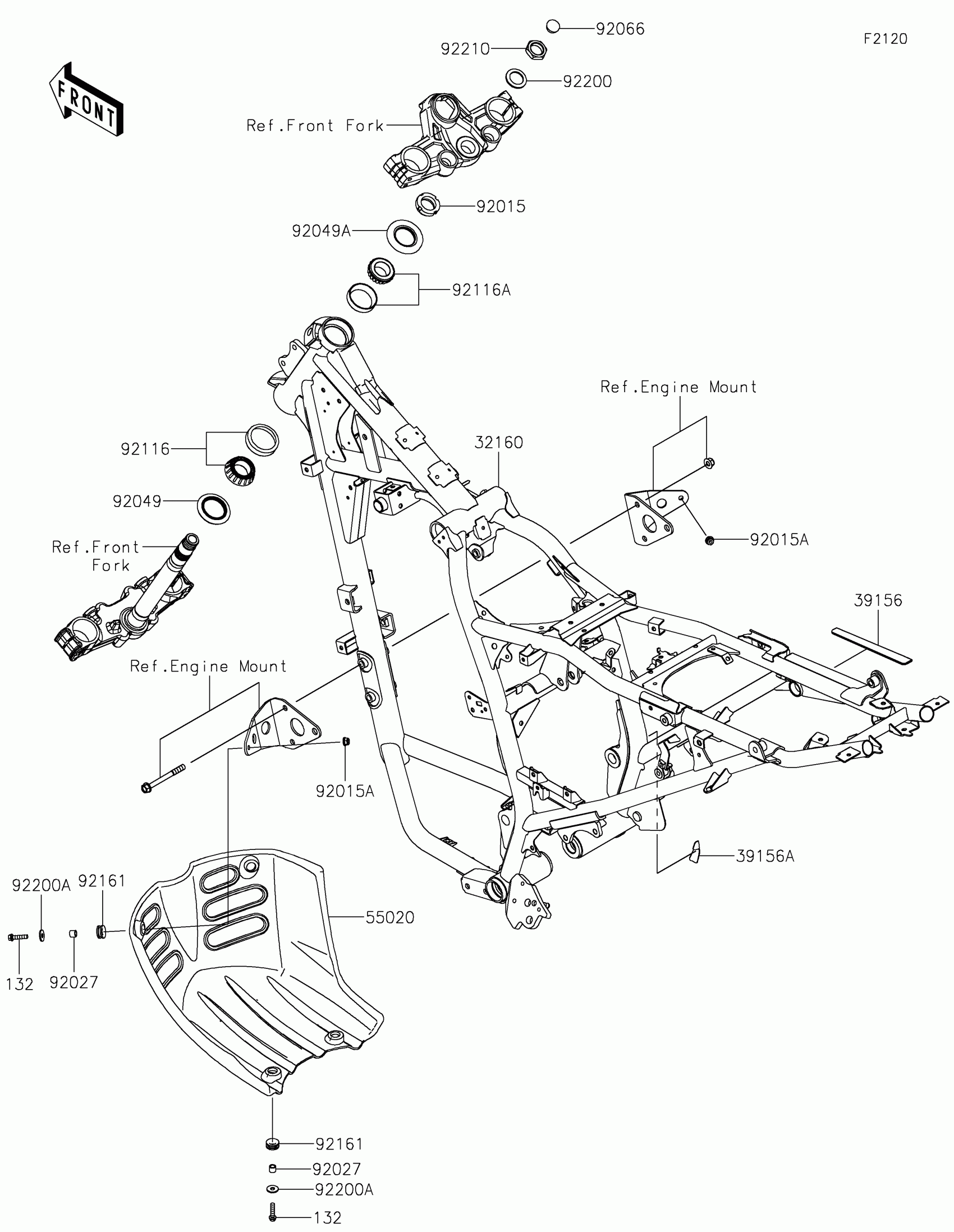

Kawasaki KLR®650 TRAVELER Frame Diagram

Description

Price

32160

FRAME-COMP,F.S.BLACK

32160-1906-18R

$2,588.04

39156

PAD,RH

39156-2775

$5.92

39156A

PAD

39156-2794

$2.32

55020

GUARD,ENGINE,F.BLACK

55020-2372-6Z

$162.78

92015

NUT,25MM,T=12

92015-1546

$19.66

92015A

NUT,LOCK,FLANGED,6MM

92015-1603

$3.72

92027

COLLAR,6.8X10X8.5

92027-129

$3.97

92049

SEAL-OIL,XMHE36X52X4J

92049-1162

$7.38

92049A

SEAL-OIL,STEERING STEM

92049-1214

$13.20

92066

PLUG

92066-1306

$4.34

92116

BEARING-ROLLER,HR320/28XJ

92116-1009

$33.21

92116A

BEARING-ROLLER,HICAP 32005JR

92116-1052

$37.01

92161

DAMPER,10X20X8

92161-1828

$1.10

92200

WASHER,STEERING STEM

92200-0517

$7.47

92200A

WASHER,6.5X18X1.6

92200-0766

$1.44

92210

NUT,STEERING STEM,22MM

92210-1521

$13.20

132

BOLT-FLANGED-SMALL,6X25

132BB0625

$2.29
