Description

Price

11057

BRACKET,WINDSHIELD,LH

11057-4397

$4.68

11057A

BRACKET,WINDSHIELD,RH

11057-4398

$4.68

11057B

BRACKET,DASHBOARD,LH

11057-7243

$9.61

11057C

BRACKET,DASHBOARD,RH

11057-7245

$11.39

14093

COVER,FOG SW.

14093-0565

$2.37

14093A

COVER,SHROUD,LH

14093-1074

$43.54

14093B

COVER,SHROUD,RH

14093-1075

$43.54

14093C

COVER,DASHBOARD

14093-1076

$226.54

39137

STAY-COMP,COWLING

39137-0712

$352.90

39154

WINDSHIELD

39154-0391

$142.66

39156

PAD

39156-0632

$3.78

39156A

PAD,20X15X150

39156-2762

$4.83

49089

SHROUD-ENGINE,LH,P.L.ORANGE

49089-0995-36V

$198.37

49089A

SHROUD-ENGINE,RH,P.L.ORANGE

49089-0996-36V

$198.37

55028

COWLING,UPP

55028-0800

$119.60

92015

NUT,CAP,8MM

92015-1151

$3.97

92015A

NUT,WELL,5MM

92015-1757

$5.81

92039

RIVET

92039-0709

$2.19

92150

BOLT,FLANGED,6X14

92150-1689

$3.14

92152

COLLAR

92152-2770

$3.07

92153

BOLT,6X18

92153-0816

$1.81

92154

BOLT,SOCKET,5X20

92154-0216

$1.78

92154A

BOLT,SOCKET,5X18

92154-1945

$1.47

92154B

BOLT,SOCKET,8X20

92154-2314

$2.02

92154C

BOLT,SOCKET,6X12

92154-2355

$1.66

92160

DAMPER

92160-1613

$2.97

92161

DAMPER,12X23

92161-1367

$1.10

92161A

DAMPER,10X18X6.5

92161-2091

$2.02

92172

SCREW,5X12

92172-0821

$0.85

92172A

SCREW,5X10

92172-0864

$1.20

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.59

92200A

WASHER,5.2X10X1

92200-2286

$0.44

92210

NUT,5MM

92210-0001

$4.90

120

BOLT-SOCKET,5X12

120CB0512

$1.51

130

BOLT-FLANGED,6X12

130BA0612

$1.46

130A

BOLT-FLANGED,8X40

130BA0840

$1.68

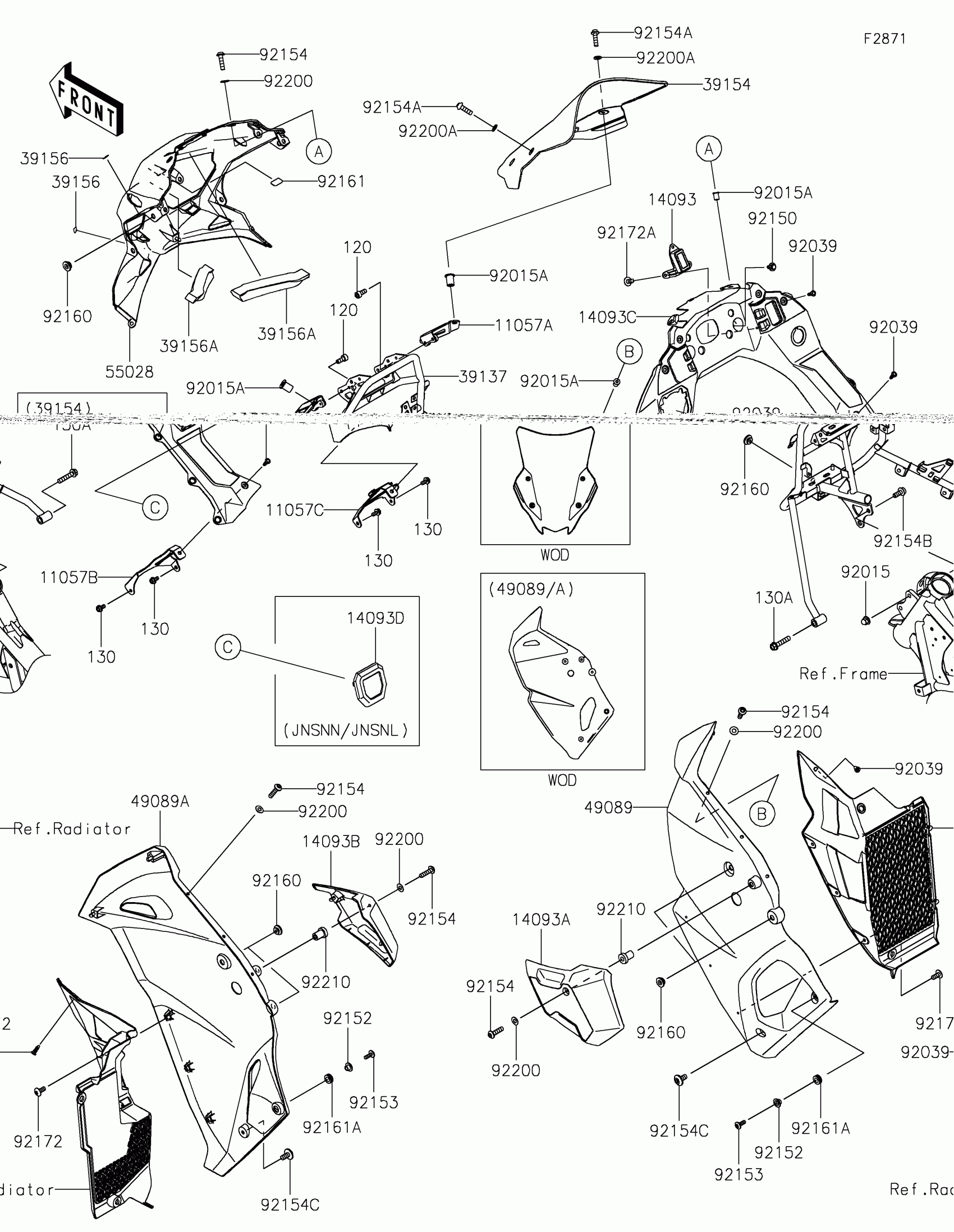

Kawasaki KLR®650 TRAVELER Cowling Diagram
