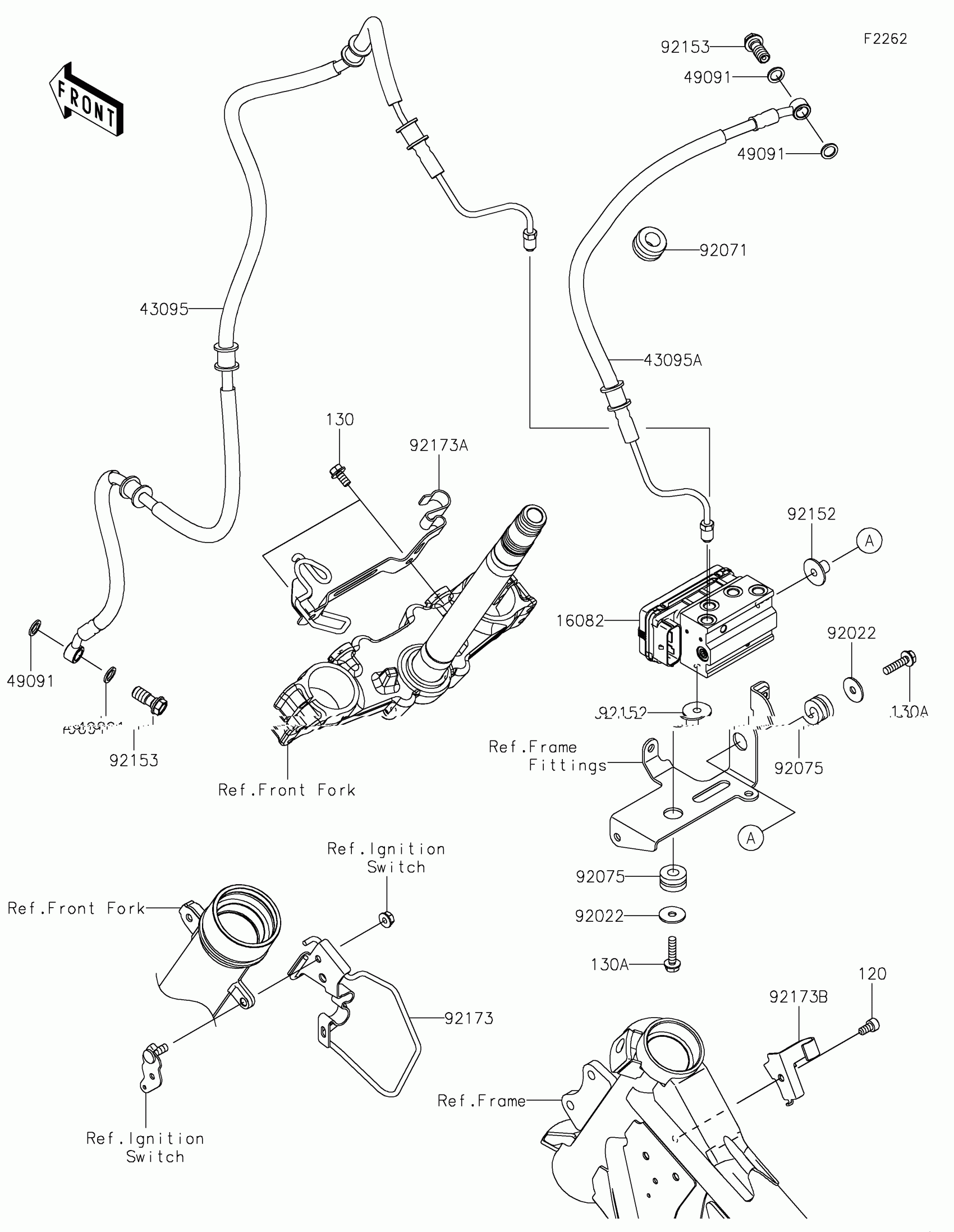

Kawasaki KLR®650 TRAVELER Brake Piping Diagram

Description

Price

16082

PUMP-ASSY-OIL,ABS,BOSCH,10MB

16082-0852

$1,340.31

43095

HOSE-BRAKE,ABS UNIT-FR CALIPER

43095-1757

$211.56

43095A

HOSE-BRAKE,FR M/C-ABS UNIT

43095-1859

$144.55

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.81

92022

WASHER,6.5X22X1.6

92022-237

$3.12

92071

GROMMET,12.2X26X16

92071-0785

$1.81

92075

DAMPER RUBBER,RR FENR

92075-209

$3.72

92152

COLLAR,6.5X10X13.6

92152-2204

$2.41

92153

BOLT,OIL,L=23

92153-0627

$4.35

92173

CLAMP

92173-2348

$11.61

92173A

CLAMP

92173-2350

$21.56

92173B

CLAMP

92173-2352

$3.90

120

BOLT-SOCKET,6X12

120CA0612

$1.47

130

BOLT-FLANGED,6X12

130BA0612

$1.46

130A

BOLT-FLANGED,6X25

130BA0625

$1.01
