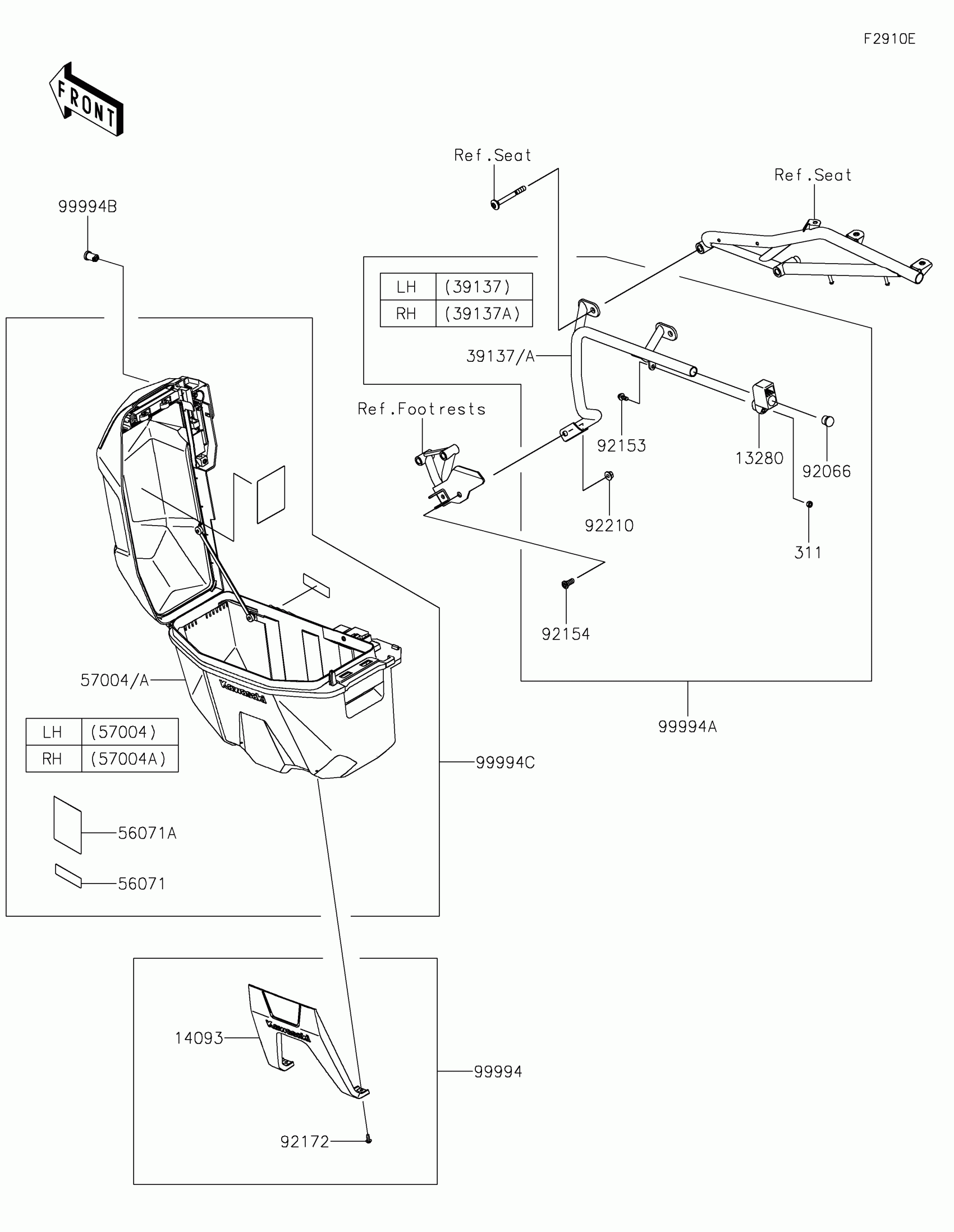

Kawasaki KLR®650 TRAVELER Accessory(Pannier Case) Diagram

Description

Price

13280

HOLDER,PANNIER

13280-1314

$34.17

14093

COVER,PANNIER,M.P.SILVER

14093-1068-GU

$157.76

39137

STAY-COMP,LH

39137-0708

$83.61

39137A

STAY-COMP,RH

39137-0709

$83.61

56071

LABEL-WARNING,PICTOGRAM

56071-0457

$7.32

56071A

LABEL-WARNING,PICTOGRAM

56071-1042

$44.95

57004

BAG-ASSY,PANNIER,LH

57004-0019

Unavailable

57004A

BAG-ASSY,PANNIER,RH

57004-0020

$346.63

92066

PLUG

92066-1484

Unavailable

92153

BOLT,FLANGED,6X14

92153-1571

$1.81

92154

BOLT,SOCKET8X20

92154-1711

$1.68

92172

SCREW,SOCKET,5X14

92172-0823

$0.85

92210

NUT,FLANGED,8MM

92210-0304

$2.71

99994

PANEL-SIDECASES,M.P.SILVER

99994-1491-GU

$118.99

99994A

FITTING-SIDECASES

99994-1492

$26.42

99994B

ROTOR(2PC)

99994-1566

$60.78

99994C

SIDECASES

99994-1863

$735.59

311

NUT-HEX,6MM

311BA0600

$1.64
