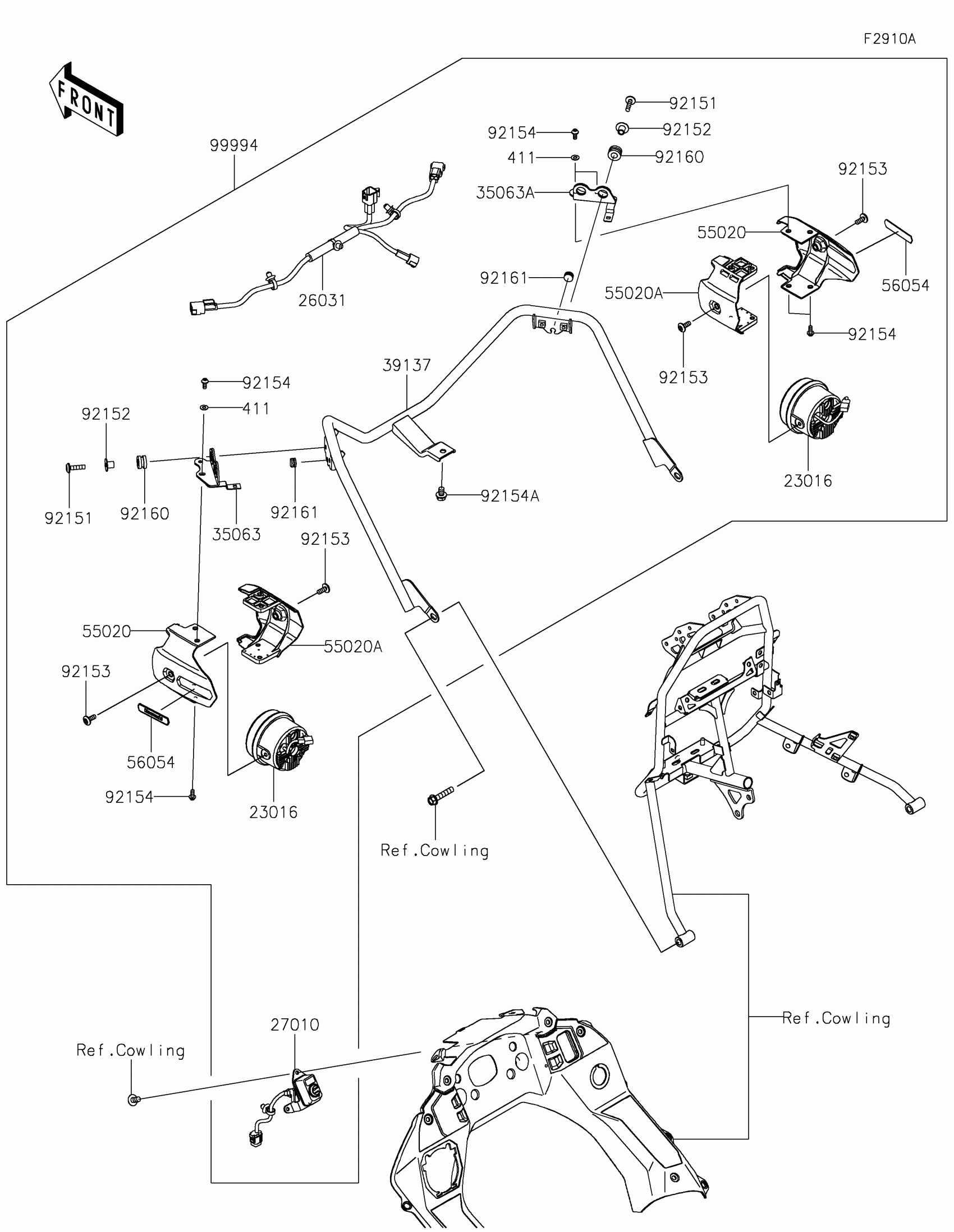

Kawasaki KLR®650 TRAVELER Accessory(Fog Lamp) Diagram

Description

Price

23016

LAMP-ASSY,LED,FOG,PIAA

23016-0599

$402.17

26031

HARNESS,FOG LAMP

26031-3860

$65.94

27010

SWITCH,FOG LAMP

27010-0968

$83.88

35063

STAY,LH

35063-1537

$9.08

35063A

STAY,RH

35063-1538

$7.13

39137

STAY-COMP,MAIN

39137-0713

$95.96

55020

GUARD,OUTER

55020-1825

$12.07

55020A

GUARD,INNER

55020-1826

$4.42

56054

MARK,FOG LAMP,KAWASAKI

56054-1695

$10.36

92151

BOLT,SOCKET,6X25

92151-1611

$1.68

92152

COLLAR,6.5X20X12

92152-2262

$7.25

92153

BOLT,SOCKET,6X16

92153-1526

$1.32

92154

BOLT,SOCKET,5X12

92154-0917

$3.61

92154A

BOLT,FLANGED,8X12

92154-4252

$1.20

92160

DAMPER,10X20X12

92160-1167

$3.60

92161

DAMPER,8X14X8.9

92161-1666

$1.32

99994

FOG LAMP

99994-1498

$477.30

411

WASHER-PLAIN,5MM

411AB0500

$0.71
