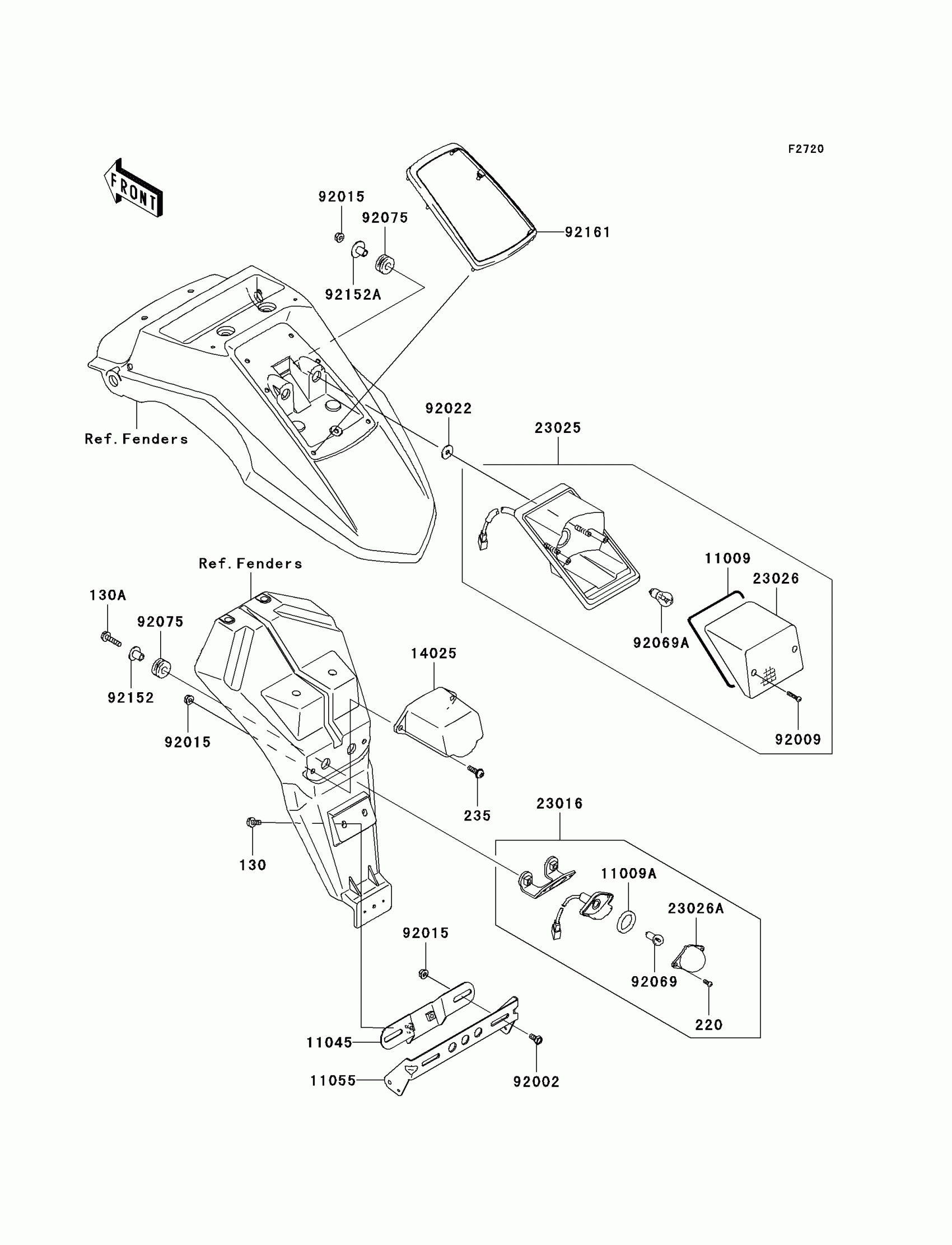

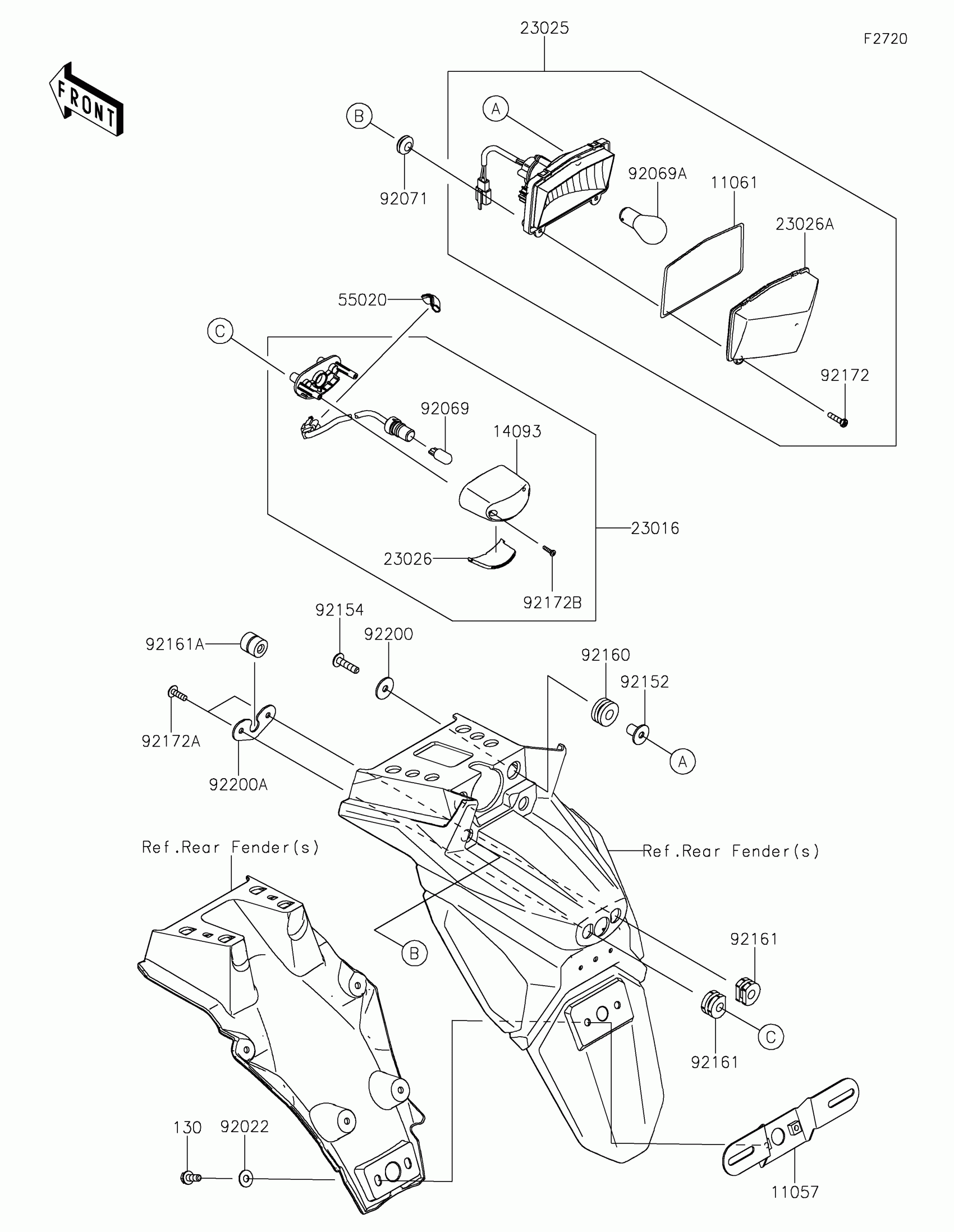

Kawasaki KLR™650 Taillight(s) Diagram

#

Description
Price

130

BOLT-FLANGED,6X12

130BB0612

$1.68

130A

BOLT-FLANGED,6X25

130BB0625

$1.84

220

SCREW-PAN-CROS,4X10

220AA0410

$1.68

235

SCREW-PAN-WP-CROS,6X20

235AB0620

$2.08

11009

GASKET,TAIL LAMP

11009-1371

$10.31

11009A

GASKET,LICENSE PLATE LAMP

11009-1372

$4.14

11045

BRACKET,LICENSE

11045-1387

$12.66

11055

BRACKET,REFLECTOR

11055-1092

$33.99

14025

COVER,LICENSE PLATE LAMP

14025-1821

$18.66

23016

LAMP-ASSY,LICENSE

23016-0011

$77.13

23025

LAMP-TAIL

23025-0031

$122.60

23026

LENS,TAIL LAMP

23026-1053

$46.31

23026A

LENS,LAMP

23026-1054

$9.02

92002

BOLT,6X12

92002-1132

$1.14

92009

SCREW,TAPPING,4X20

92009-1378

$3.68

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92022

WASHER,6.5X20X1.6

92022-1557

$1.08

92069

BULB,12V 5W

92069-1055

$3.95

92069A

BULB,12V 21/5W

92069-1084

$5.61

92075

DAMPER,10X24X12

92075-1690

$3.81

92152

COLLAR

92152-0344

$5.92

92152A

COLLAR

92152-0562

$5.00

92161

DAMPER,TAIL LAMP

92161-0504

$29.94
