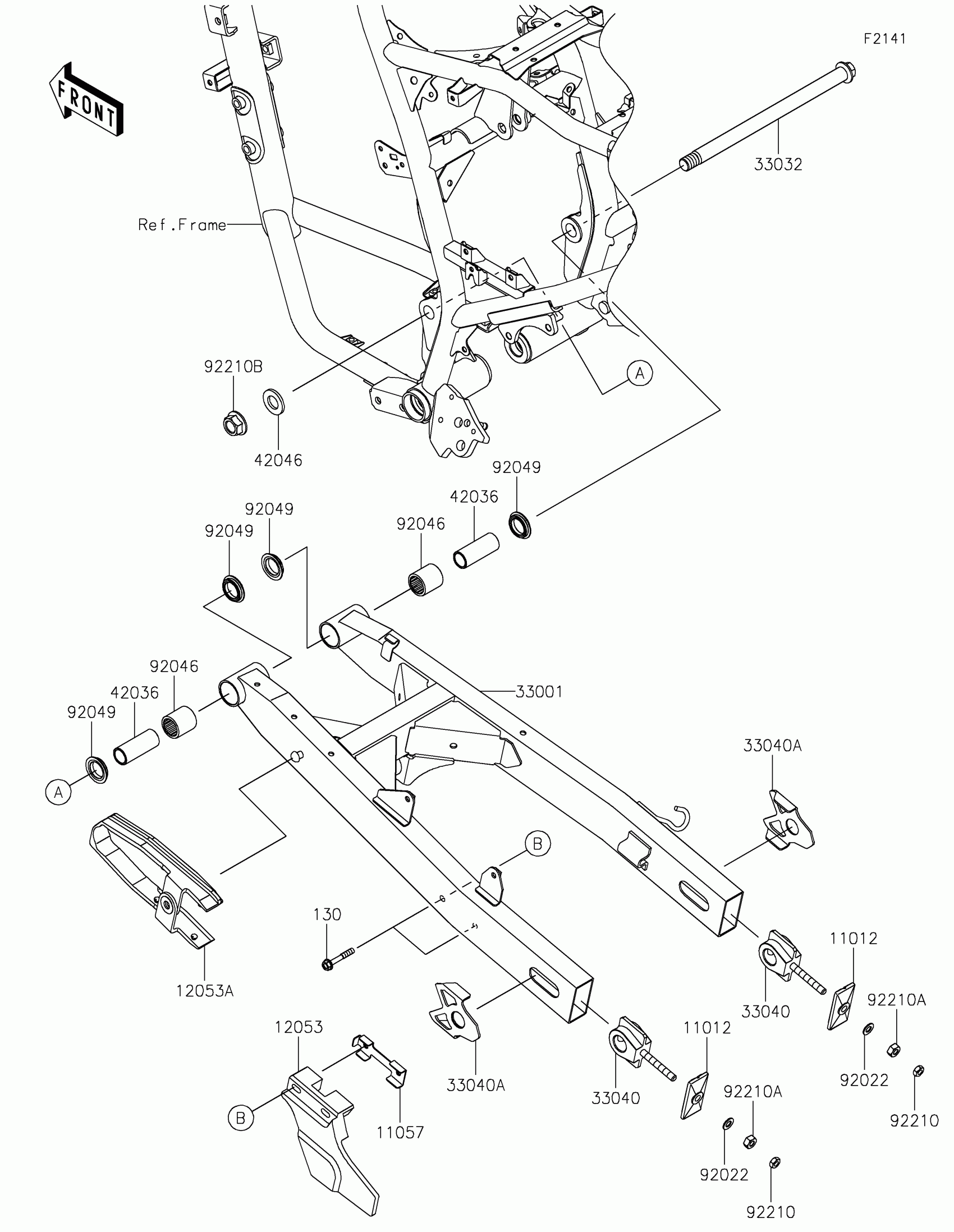

Kawasaki KLR®650 S ABS Swingarm Diagram

Description

Price

11012

CAP,CHAIN ADJUSTER,F.S.BLACK

11012-1871-18R

$24.26

11057

BRACKET,CHAIN GUIDE

11057-7405

$4.08

12053

GUIDE-CHAIN,RR

12053-0222

$66.65

12053A

GUIDE-CHAIN,FR

12053-0313

$45.41

33001

ARM-COMP-SWING,F.S.BLACK

33001-0733-18R

$962.56

33032

SHAFT-SWING ARM

33032-0066

$71.54

33040

ADJUSTER-CHAIN

33040-0098

$27.47

33040A

ADJUSTER-CHAIN,F.S.BLACK

33040-0099-18R

$21.41

42036

SLEEVE,17.1X22X55.5

42036-0859

$33.66

42046

WASHER,17.3X32X3.2

42046-009

$7.71

92022

WASHER,8.5X16X1.2

92022-1582

$0.84

92046

BEARING-NEEDLE,TA2230Z

92046-1174

$33.74

92049

SEAL-OIL,MHA22X29X5.7F

92049-1289

$8.63

92210

NUT,8MM,5X12

92210-1588

$0.88

92210A

NUT,8MM,6.5X14

92210-1589

$1.47

92210B

NUT,FLANGED,16MM

92210-1817

$21.63

130

BOLT-FLANGED,6X40

130BA0640

$1.12
