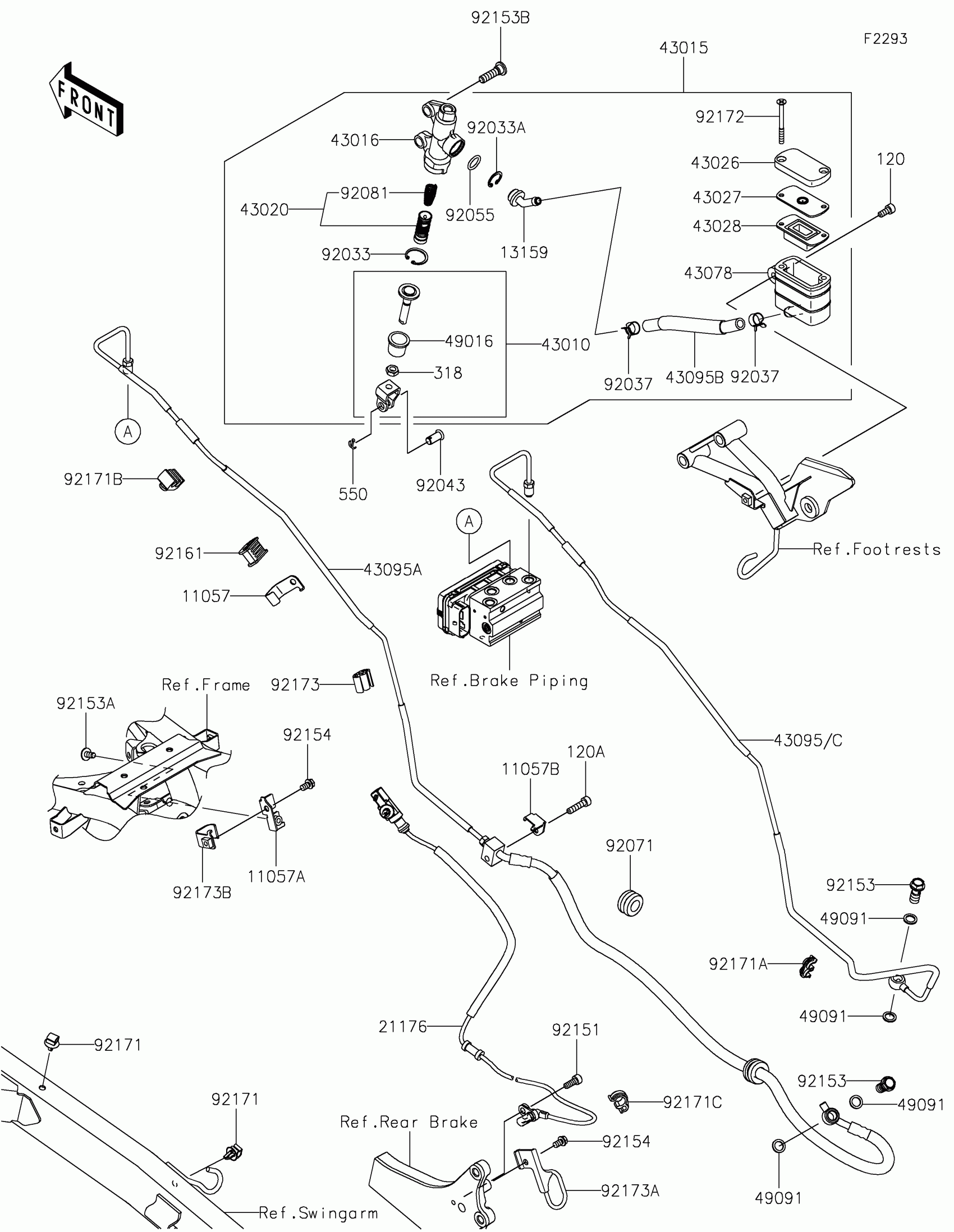

Kawasaki KLR®650 S ABS Rear Master Cylinder Diagram

#

Description
Price

11057

BRACKET,BRAKE HOSE

11057-4377

$2.29

11057A

BRACKET,CLAMP SUPPORT

11057-7882

$8.85

11057B

BRACKET,HOSE-BRAKE

11057-7883

$2.42

13159

CONNECTOR

13159-0008

$10.59

21176

SENSOR,SPEED,RR

21176-0995

$264.90

43010

ROD-ASSY-BRAKE

43010-0031

$67.17

43015

CYLINDER-ASSY-MASTER,RR

43015-0794

$417.98

43016

CYLINDER-MASTER,RR

43016-1208

$156.90

43020

PISTON-COMP-BRAKE

43020-1057

$58.51

43026

CAP-BRAKE

43026-0014

$14.00

43027

PLATE-DIAPHRAGM

43027-0006

$7.25

43028

DIAPHRAGM

43028-0009

$8.85

43078

RESERVOIR

43078-0056

$19.64

43095

HOSE-BRAKE,RR M/C-ABS UNIT

43095-1855

$149.49

43095A

HOSE-BRAKE,ABS UNIT-RR CALIPER

43095-1856

$262.72

43095B

HOSE-BRAKE

43095-1857

$21.17

43095C

HOSE-BRAKE,RR M/C-ABS UNIT

43095-1967

$149.49

49016

COVER-SEAL,BRAKE PISTON

49016-1103

$12.73

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$5.94

92033A

RING-SNAP,20.5MM

92033-1186

$3.78

92037

CLAMP

92037-1710

$8.27

92043

PIN,8X17

92043-0104

$2.98

92055

RING-O,14.8X2.4

92055-0741

$2.82

92071

GROMMET,12.2X26X16

92071-0785

$1.81

92081

SPRING,MASTER CYLINDER

92081-1737

$11.69

92151

BOLT

92151-1166

$1.88

92153

BOLT,OIL,L=23

92153-0627

$4.15

92153A

BOLT,SOCKET,6X12

92153-1617

$1.04

92153B

BOLT,SOCKET,8X30

92153-1624

$3.03

92154

BOLT,FLANGED,6X10

92154-0950

$2.19

92161

DAMPER

92161-2387

$2.29

92171

CLAMP

92171-0640

$3.51

92171A

CLAMP

92171-0817

$4.14

92171B

CLAMP

92171-0818

$3.93

92171C

CLAMP,BRAKE HOSE

92171-1819

$4.85

92172

SCREW

92172-0383

$2.44

92173

CLAMP,METAL PIPE

92173-0986

$2.19

92173A

CLAMP

92173-2454

$10.73

92173B

CLAMP

92173-2517

$3.58

120

BOLT-SOCKET,6X14

120CA0614

$3.68

120A

BOLT-SOCKET,6X25

120CB0625

$1.81

318

NUT-HEX-SMALL,8MM

318BA0800

$1.04

550

PIN-COTTER,2.0X15

550AA2015

$0.90
