Description

Price

11057

BRACKET,REFLECTOR,RR

11057-4368

$12.49

11057A

BRACKET,RR BRAKE SWITCH

11057-7880

$9.85

11057B

BRACKET,REFLECTOR

11057-7911

$5.39

14091

COVER,SIDE STAND SWITCH

14091-1553

$7.47

27005

SWITCH-ASSY-IGNITION

27005-0702

$181.84

27005A

SWITCH-ASSY-IGNITION

27005-5189

$404.89

27008

KEY-LOCK,BLANK

27008-0688

$26.43

27010

SWITCH,SIDE STAND

27010-0118

$75.76

27010A

SWITCH,REAR BRAKE

27010-0969

$47.70

27016

LOCK-ASSY,TOOL COVER

27016-5419

$124.05

27016A

LOCK-ASSY,TANK CAP

27016-5421

$124.05

28012

REFLECTOR-REFLEX,CCC

28012-0045

$15.61

28012A

REFLECTOR-REFLEX

28012-1077

$21.76

28012B

REFLECTOR-REFLEX

28012-1088

$20.82

55020

GUARD,50X30

55020-2334

$2.80

92002

BOLT,6X12

92002-1132

$1.32

92002A

BOLT,FLANGED,6X25

92002-1582

$4.17

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.37

92015A

NUT,FLANGED,6MM

92015-1367

$2.93

92143

COLLAR

92143-1331

$3.14

92145

SPRING,REAR BRAKE

92145-1896

$4.42

92152

COLLAR,6.15X10.15X6

92152-1535

$2.97

92154

BOLT,TORX,6X22

92154-1858

$3.14

92171

CLAMP

92171-0640

$3.51

92172

SCREW,5X12

92172-1459

$0.64

92210

NUT,FLANGED,5MM

92210-0007

$2.20

461

WASHER-SPRING,6MM

461DA0600

$0.68

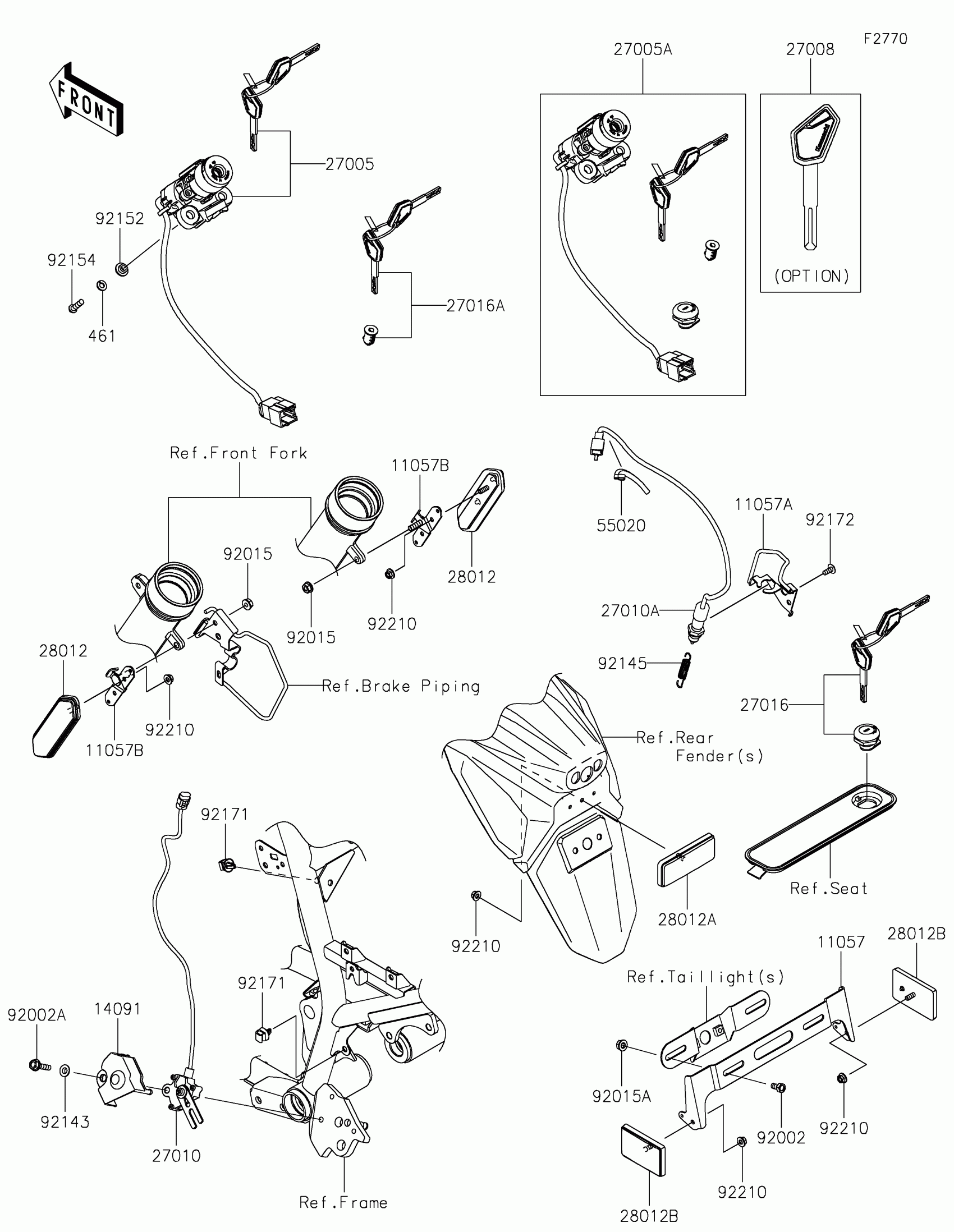

Kawasaki KLR®650 S ABS Ignition Switch Diagram
