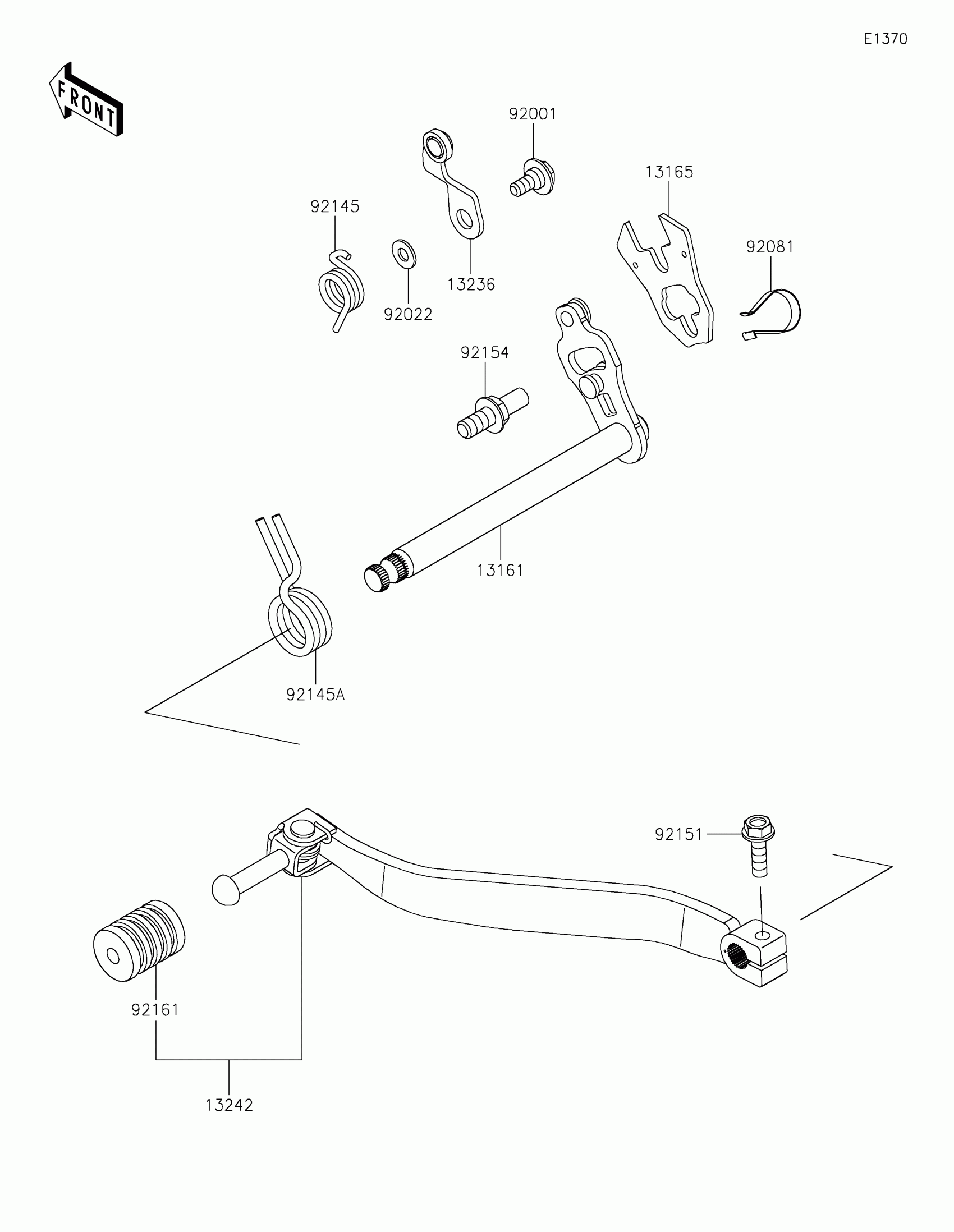

Kawasaki KLR®650 S ABS Gear Change Mechanism Diagram

Description

Price

13161

LEVER-COMP-CHANGE SHAFT

13161-0065

$69.44

13165

PAWL

13165-1120

$13.39

13236

LEVER-COMP

13236-0200

$8.95

13242

LEVER-ASSY-CHANGE

13242-0252

$54.07

92001

BOLT,FLANGED,6X14

92001-1715

$10.25

92022

WASHER,6X12.8X1.2

92022-1827

$3.57

92081

SPRING,CHANGE LEVER

92081-1493

$5.55

92145

SPRING

92145-0773

$8.85

92145A

SPRING,CHANGE PEDAL RETURN

92145-0774

$10.88

92151

BOLT,6X20

92151-1450

$1.76

92154

BOLT,RETURN SPRING

92154-1838

$8.81

92161

DAMPER,CHANGE PEDAL

92161-1652

$6.55
