Description

Price

34003

HOLDER-STEP,RR,LH,F.S.BLACK

34003-0185-18R

$75.68

34003A

HOLDER-STEP,RR,RH,F.S.BLACK

34003-0194-18R

$75.68

34028

STEP,RR,LH

34028-0134

$36.70

34028A

STEP,RR,RH

34028-0135

$32.18

34028B

STEP,FR,LH

34028-0402

$36.69

34028C

STEP,FR,RH

34028-0403

$36.69

34035

HOLDER-ASSY-STEP,FR,LH

34035-0003

Unavailable

34035A

HOLDER-ASSY-STEP,FR,RH

34035-0004

$81.91

92002

BOLT,BANK SENSOR

92002-1995

$10.80

92043

PIN,8X36.5

92043-1339

$7.71

92043A

PIN,6X28

92043-1464

$6.18

92092

BUSHING-RUBBER,8.4X20X18

92092-0039

$11.19

92154

BOLT,SOCKET,8X44

92154-4427

$1.20

92161

DAMPER,12.5X21X2

92161-0943

$1.89

92161A

DAMPER,12.5X20X4

92161-0944

$2.11

92161B

DAMPER

92161-2391

Unavailable

92200

WASHER,RR STEP

92200-0561

$4.27

92200A

WASHER,6.5X13X2.0

92200-0562

$4.95

92200B

WASHER,FR STEP

92200-2537

$5.25

130

BOLT-FLANGED,8X30

130CA0830

$0.86

482

CIRCLIP-TYPE-E

482EA7000

$2.99

550

PIN-COTTER,2.0X15

550AA2015

$0.90

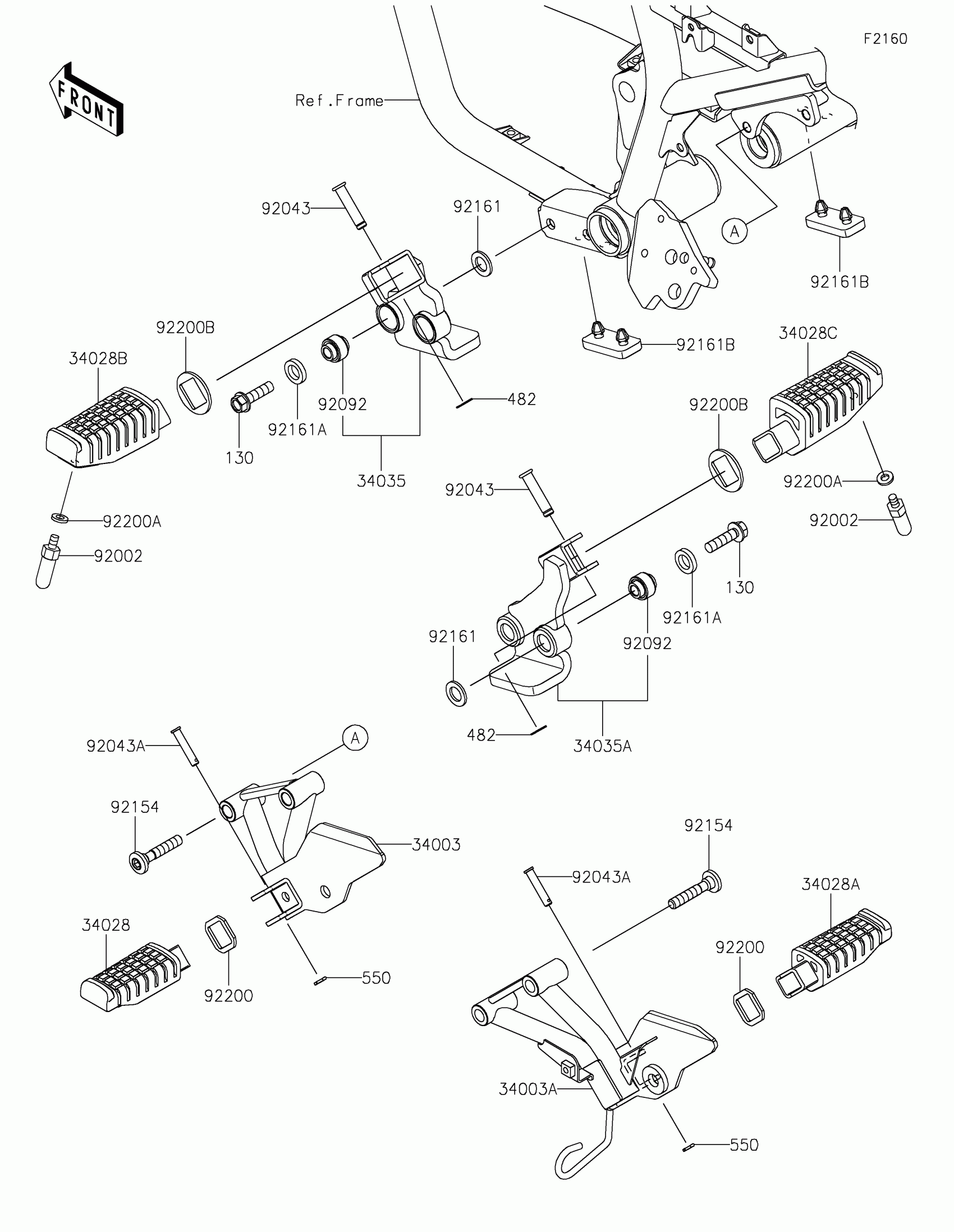

Kawasaki KLR®650 S ABS Footrests Diagram
