Description

Price

11004

GASKET-HEAD

11004-1158

$52.22

11008

HEAD-COMP-CYLINDER

11008-1451

$1,272.46

11009

GASKET,10X14.5X1.5

11009-1105

$5.15

11057

BRACKET,REED VALVE COVER

11057-7187

$23.66

11061

GASKET,REED VALVE COVER

11061-1396

$2.46

12013

GUIDE-VALVE,INTAKE

12013-009

$24.29

12021

VALVE-ASSY-REED

12021-0017

$76.29

14093

COVER,REED VALVE,FR

14093-1081

$42.05

14093A

COVER,REED VALVE,RR

14093-1123

$57.54

16066

HOLDER-THROTTLE BODY

16066-0023

$34.62

32155

PIPE,2ND AIR

32155-4382

$38.86

32155A

PIPE,OIL LINE

32155-4449

$3.85

41077

ADAPTER

41077-0751

$24.98

49002

GUIDE-VALVE,EXHAUST

49002-1002

Unavailable

49054

THERMOSTAT

49054-1053

$49.29

92001

BOLT,FLANGED,6X38

92001-1105

$3.72

92002

BOLT,BANJO,10X25

92002-1170

Unavailable

92004

STUD,8X22

92004-1217

$4.47

92005

FITTING

92005-0715

$23.44

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

$4.37

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.51

92055

RING-O,10MM

92055-1149

$5.21

92151

BOLT,FLANGED,6X30

92151-1105

$3.92

92151A

BOLT,6X14

92151-1810

$1.97

92153

BOLT,SOCKET,6X20

92153-1364

$2.14

92153A

BOLT,FLANGED,10X191

92153-1797

$23.69

92161

DAMPER

92161-2424

$1.22

92173

CLAMP,62MM

92173-0922

$7.71

130

BOLT-FLANGED,5X8

130BD0508

$1.73

132

BOLT-FLANGED-SMALL,6X14

132BA0614

$1.31

132A

BOLT-FLANGED-SMALL,6X18

132BA0618

$3.24

132B

BOLT-FLANGED-SMALL,6X30

132BA0630

$2.17

132C

BOLT-FLANGED-SMALL,6X85

132BA0685

$2.63

132D

BOLT-FLANGED-SMALL,6X12

132BD0612

$1.73

670

O RING,15MM

670B2015

$1.25

670A

O RING,6MM

670D1506

$1.42

670B

O RING,48MM

670D3048

$5.84

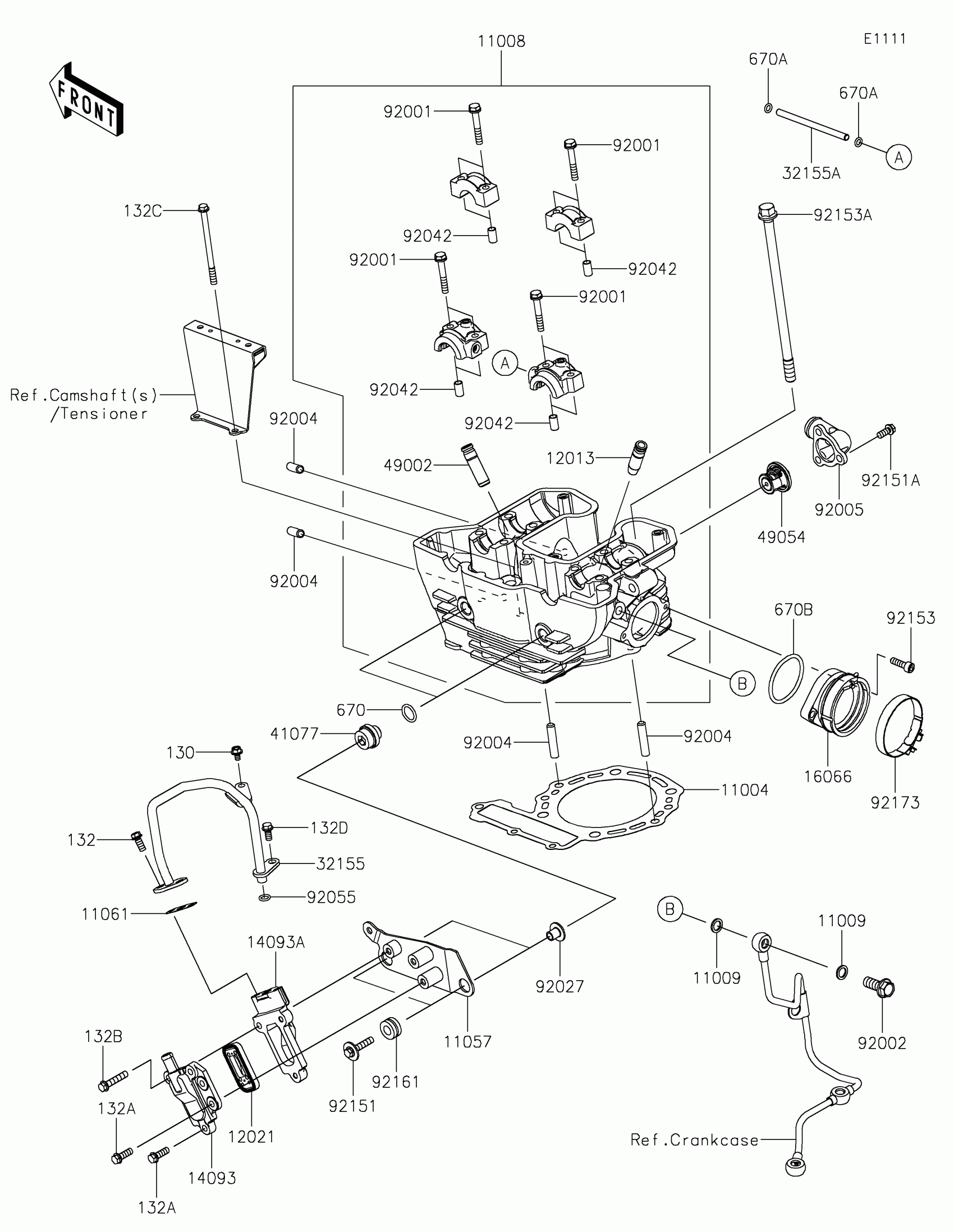

Kawasaki KLR®650 S ABS Cylinder Head Diagram

GUIDE-VALVE,EXHAUST

BOLT,BANJO,10X25
