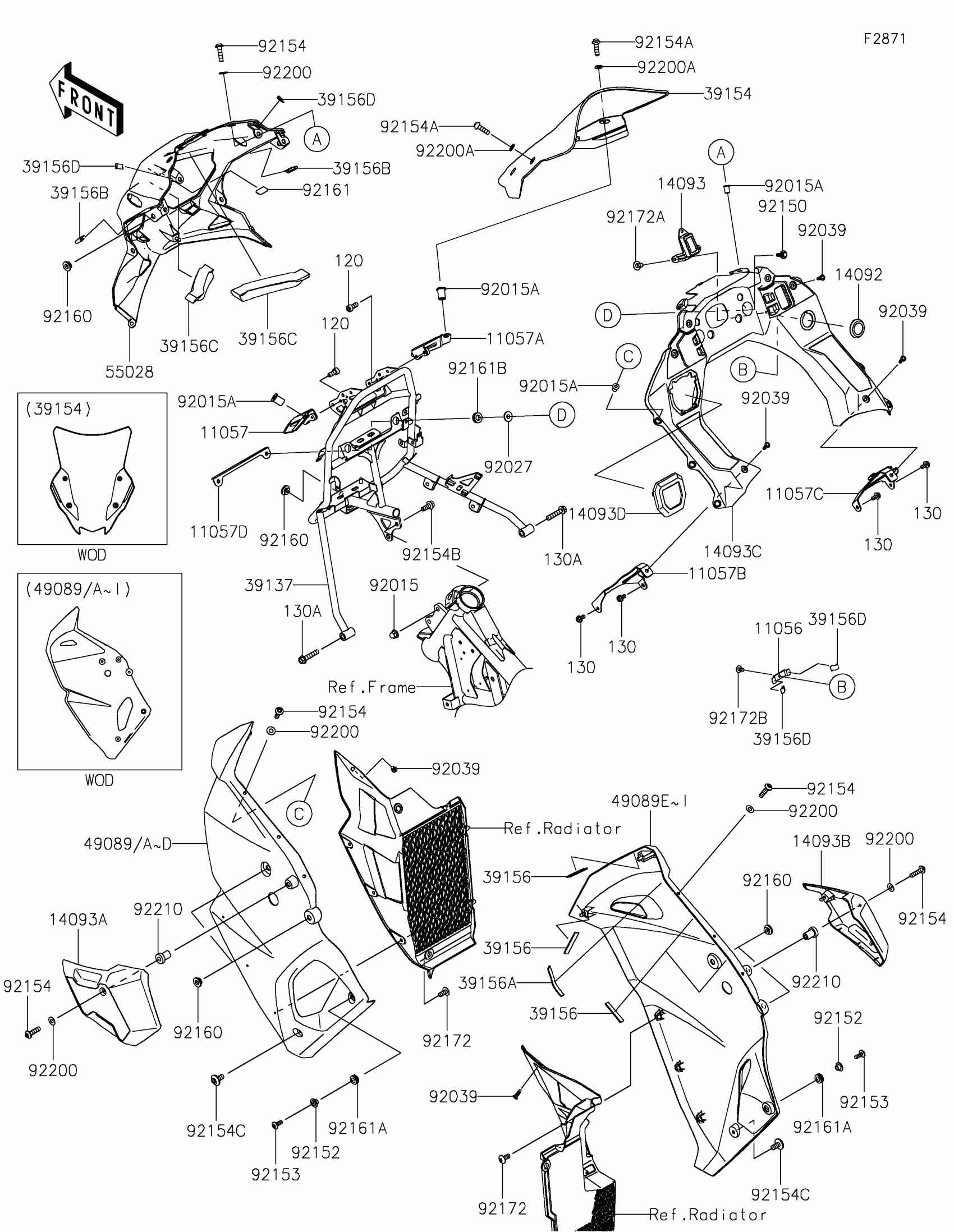

Kawasaki KLR®650 S ABS Cowling Diagram

#

Description
Price

11056

BRACKET,CAP COVER

11056-4313

$1.10

11057

BRACKET,WINDSHIELD,LH

11057-4397

$4.68

11057A

BRACKET,WINDSHIELD,RH

11057-4398

$4.68

11057B

BRACKET,DASHBOARD,LH

11057-7243

$9.61

11057C

BRACKET,DASHBOARD,RH

11057-7245

$11.39

11057D

BRACKET,METER

11057-7893

$5.19

14092

COVER,DC SOCKET

14092-0214

$5.71

14093

COVER,FOG SW.

14093-0565

$2.37

14093A

COVER,SHROUD,LH

14093-1074

$42.53

14093B

COVER,SHROUD,RH

14093-1075

$42.53

14093C

COVER,DASHBOARD

14093-1076

$226.54

14093D

COVER,USB

14093-1077

$30.71

39137

STAY-COMP,COWLING

39137-0731

$329.45

39154

WINDSHIELD

39154-0434

$142.66

39156

PAD,10X50X2

39156-1924

$2.02

39156A

PAD,10X80X2

39156-2238

$1.20

39156B

PAD,25X25X2

39156-2573

$1.12

39156C

PAD,20X15X150

39156-2762

$4.83

39156D

PAD,20X10X2

39156-2849

$0.69

49089

SHROUD-ENGINE,LH,P.S.GRAY

49089-0995-36S

$174.00

49089A

SHROUD-ENGINE,LH,C.L.GREEN

49089-0995-51P

$174.00

49089C

SHROUD-ENGINE,LH,P.C.WHITE

49089-0995-667

$174.00

49089D

SHROUD-ENGINE,LH,F.RED

49089-0995-B1

$174.00

49089E

SHROUD-ENGINE,RH,P.S.GRAY

49089-0996-36S

$174.00

49089F

SHROUD-ENGINE,RH,C.L.GREEN

49089-0996-51P

$174.00

49089H

SHROUD-ENGINE,RH,P.C.WHITE

49089-0996-667

$174.00

49089I

SHROUD-ENGINE,RH,F.RED

49089-0996-B1

$199.09

55028

COWLING,UPP

55028-0800

$119.60

92015

NUT,CAP,8MM

92015-1151

$3.81

92015A

NUT,WELL,5MM

92015-1757

$5.58

92027

COLLAR,L=7.4

92027-1848

$3.57

92039

RIVET

92039-0709

$1.89

92150

BOLT,6X20

92150-1339

$3.35

92152

COLLAR

92152-2770

$2.95

92153

BOLT,6X18

92153-0816

$1.57

92154

BOLT,SOCKET,5X20

92154-0216

$1.54

92154A

BOLT,SOCKET,5X18

92154-1945

$1.27

92154B

BOLT,SOCKET,8X20

92154-2314

$1.74

92154C

BOLT,SOCKET,6X12

92154-2355

$1.43

92160

DAMPER

92160-1613

$2.84

92161

DAMPER,12X23

92161-1367

$0.95

92161A

DAMPER,10X18X6.5

92161-2091

$1.74

92161B

DAMPER,10X20X6

92161-2168

$3.92

92172

SCREW,5X12

92172-0821

$0.73

92172A

SCREW,5X10

92172-0864

$1.04

92172B

SCREW,CROSS,4X8

92172-1227

$0.47

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.36

92200A

WASHER,5.2X10X1

92200-2286

$0.43

92210

NUT,5MM

92210-0001

$4.65

120

BOLT-SOCKET,5X12

120CB0512

$1.30

130

BOLT-FLANGED,6X12

130BA0612

$1.25

130A

BOLT-FLANGED,8X40

130BA0840

$1.44
