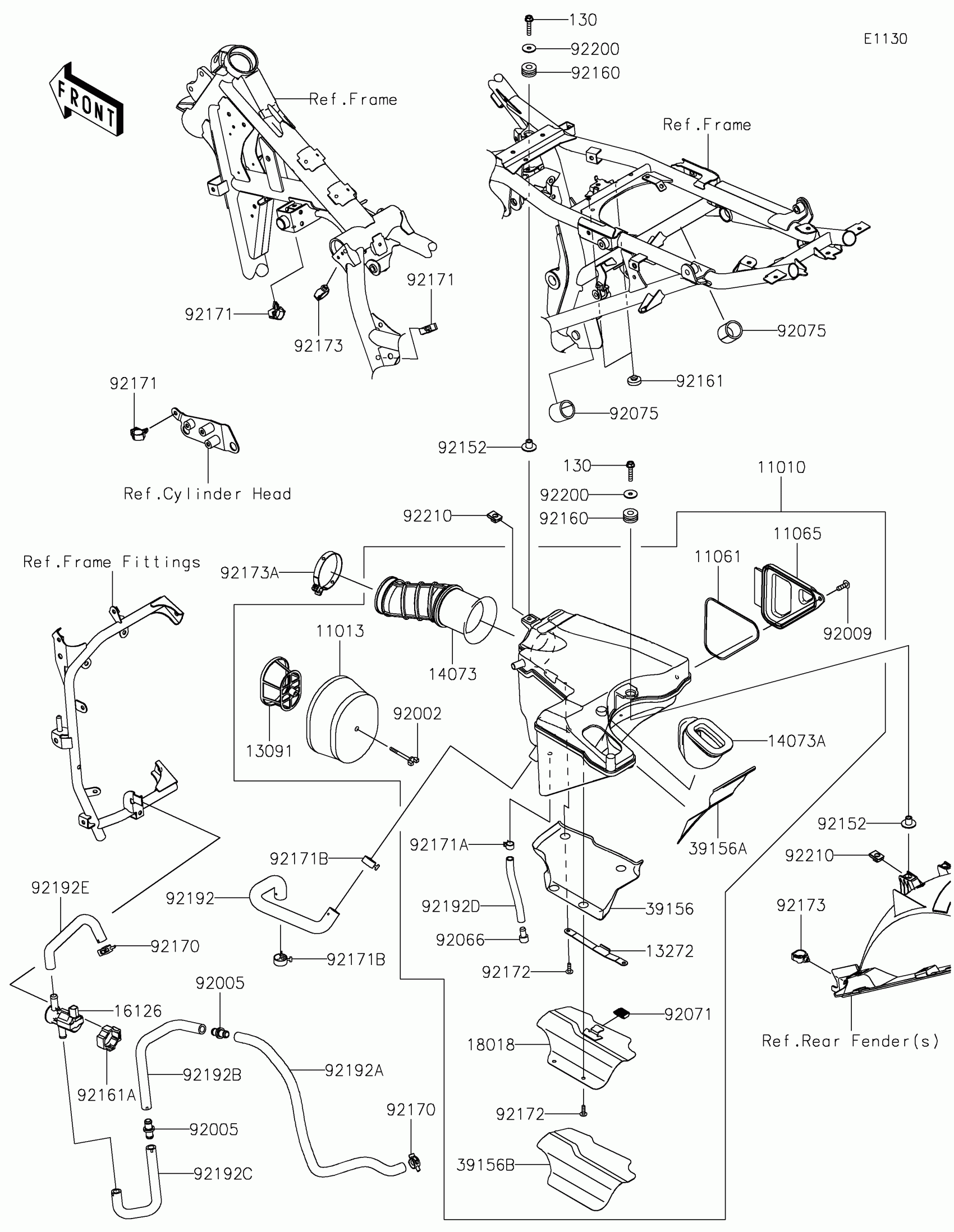

Kawasaki KLR®650 S ABS Air Cleaner Diagram

#

Description
Price

11010

FILTER-ASSY-AIR

11010-1805

$256.11

11013

ELEMENT-AIR FILTER

11013-1152

$20.50

11061

GASKET

11061-1393

$1.69

11065

CAP

11065-1373

$7.58

13091

HOLDER

13091-1473

$25.79

13272

PLATE

13272-3875

$10.93

14073

DUCT

14073-0993

$33.21

14073A

DUCT

14073-0994

$29.95

16126

VALVE,AIR SWITCHING

16126-0033

$86.26

18018

PLATE-HEAT GUARD

18018-0641

$20.47

39156

PAD

39156-2760

$4.83

39156A

PAD

39156-2761

$4.83

39156B

PAD

39156-2793

$2.27

92002

BOLT

92002-1904

$7.54

92005

FITTING

92005-1379

$4.66

92009

SCREW

92009-1460

$2.23

92066

PLUG,DRAIN,8.5X15

92066-0127

$8.19

92071

GROMMET

92071-0786

$9.12

92075

DAMPER,25X31X30

92075-1906

$5.71

92152

COLLAR,6.5X10.5X13.1

92152-0547

$4.27

92160

DAMPER

92160-1162

$3.81

92161

DAMPER

92161-0336

$4.27

92161A

DAMPER,ASWV

92161-0499

$7.15

92170

CLAMP

92170-1118

$5.69

92171

CLAMP,BRAKE HOSE

92171-0316

$2.93

92171A

CLAMP,12MM

92171-1870

$5.76

92171B

CLAMP

92171-1890

$9.10

92172

SCREW,TAPPING,5X16

92172-0280

$0.69

92173

CLAMP,HOLDER CLIP

92173-0868

$2.11

92173A

CLAMP,62MM

92173-0922

$7.71

92192

TUBE,BREATHER

92192-2463

$16.76

92192A

TUBE,FITTING-A/C

92192-2464

$22.36

92192B

TUBE,FITTING-FITTING

92192-2465

$12.59

92192C

TUBE,ASWV-FITTING

92192-2466

$11.07

92192D

TUBE

92192-2493

$9.76

92192E

TUBE,ASWV-REED VALVE

92192-2500

$9.76

92200

WASHER,6.5X22X1.6

92200-1087

$3.01

92210

NUT,6MM

92210-0474

$4.18

130

BOLT-FLANGED,6X30

130BB0630

$3.38
