2010 Kawasaki KLR™650 Rear Master Cylinder Diagram

← All diagrams

Find the part on the Rear Master Cylinder diagram for your 2010 Kawasaki KLR™650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

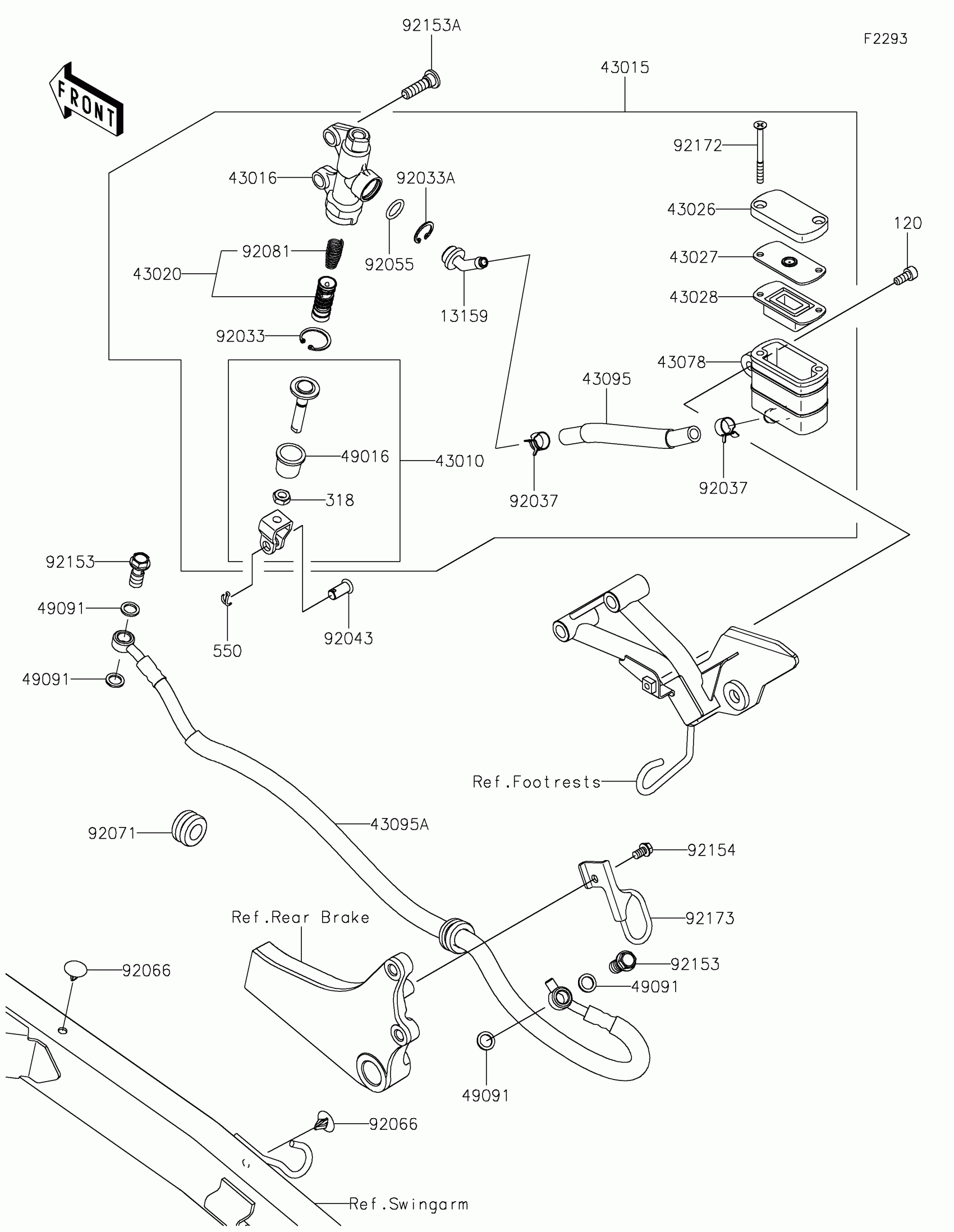

2010 Kawasaki KLR™650 Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$1.47

In stock

132A

1

$2.05

In stock

550

PIN-COTTER,2.0X15

550AA2015

1
Out of stock

13159

CONNECTOR

13159-1056

1
Out of stock

43010

ROD-ASSY-BRAKE

43010-1074

1
Out of stock

43015A

CYLINDER-ASSY-MASTER,RR

43015-0130

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1057

1
Out of stock

43026

CAP-BRAKE

43026-0009

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-1053

1
Out of stock

43028

DIAPHRAGM

43028-1065

1
Out of stock

43064

GROMMET,HOSE CLAMP

43064-007

1
Out of stock

43078A

RESERVOIR

43078-0060

1
Out of stock

43095

HOSE-BRAKE,RR

43095-0256

1
Out of stock

43095A

HOSE-BRAKE,RR MASTER CYLINDER

43095-0464

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92001

BOLT,W/P,6X16

92001-1860

1
Out of stock

92022

WASHER,CIRCRIP

92022-1601

1
Out of stock

92033

RING-SNAP,20.5MM

92033-1186

1
Out of stock

92037

CLAMP

92037-1710

1
Out of stock

92043

PIN,8X17

92043-0104

1
Out of stock

92055

RING-O,MASTER CYLINDER

92055-1251

1
Out of stock

92081

SPRING,MASTER CYLINDER

92081-1737

1
Out of stock

92152

COLLAR,7.1X9.5X7

92152-0561

1
Out of stock

92153

BOLT,OIL,L=23

92153-0627

1
Out of stock

92153A

BOLT,SOCKET,8X30

92153-1624

1
Out of stock

92171

CLAMP,BRAKE HOSE,P.SILVER

92171-0712-458

1
Out of stock

92171A

CLAMP,BRAKE HOSE

92171-1662

1
Out of stock
