Description

Price

550

PIN-COTTER,4.0X35

550AA4035

$1.57

601

BEARING-BALL,#6003G

601B6003G

$16.78

601A

BEARING-BALL,#6004UG

601B6004UG

$37.82

601B

BEARING-BALL,#6204UG

601B6204UG

$26.33

41034

DRUM-ASSY,REAR BRAKE,F.BLACK

41034-0041-21

$630.48

41068

AXLE,RR

41068-0056

$88.23

42033

COUPLING-ASSY,REAR HUB

42033-1112

$229.32

42036

SLEEVE,REAR AXLE,L=16

42036-1206

$14.58

42041

SPROCKET-HUB,43T

42041-1260

$67.76

42046

WASHER,17.3X32X3.2

42046-009

$7.71

92004

STUD,8X16

92004-1150

$4.14

92015

NUT,8MM

92015-1432

$4.93

92033

RING-SNAP,42MM

92033-1041

$4.64

92033A

RING-SNAP,47MM

92033-1042

$3.22

92057

CHAIN,DRIVE,EK520SR-O2X106L

92057-0019

$200.06

92058

JOINT-CHAIN,DRIVE

92058-1102

$11.43

92075

DAMPER,SHOCK,RR HUB

92075-1068

$42.39

92143

COLLAR,REAR BRAKE DRUM,L=113

92143-1060

$36.42

92143A

COLLAR,REAR AXLE,L=30

92143-1061

$21.15

92143B

COLLAR,REAR AXLE,L=17

92143-1062

$26.29

92210

NUT,CASTLE,16MM

92210-1171

$11.17

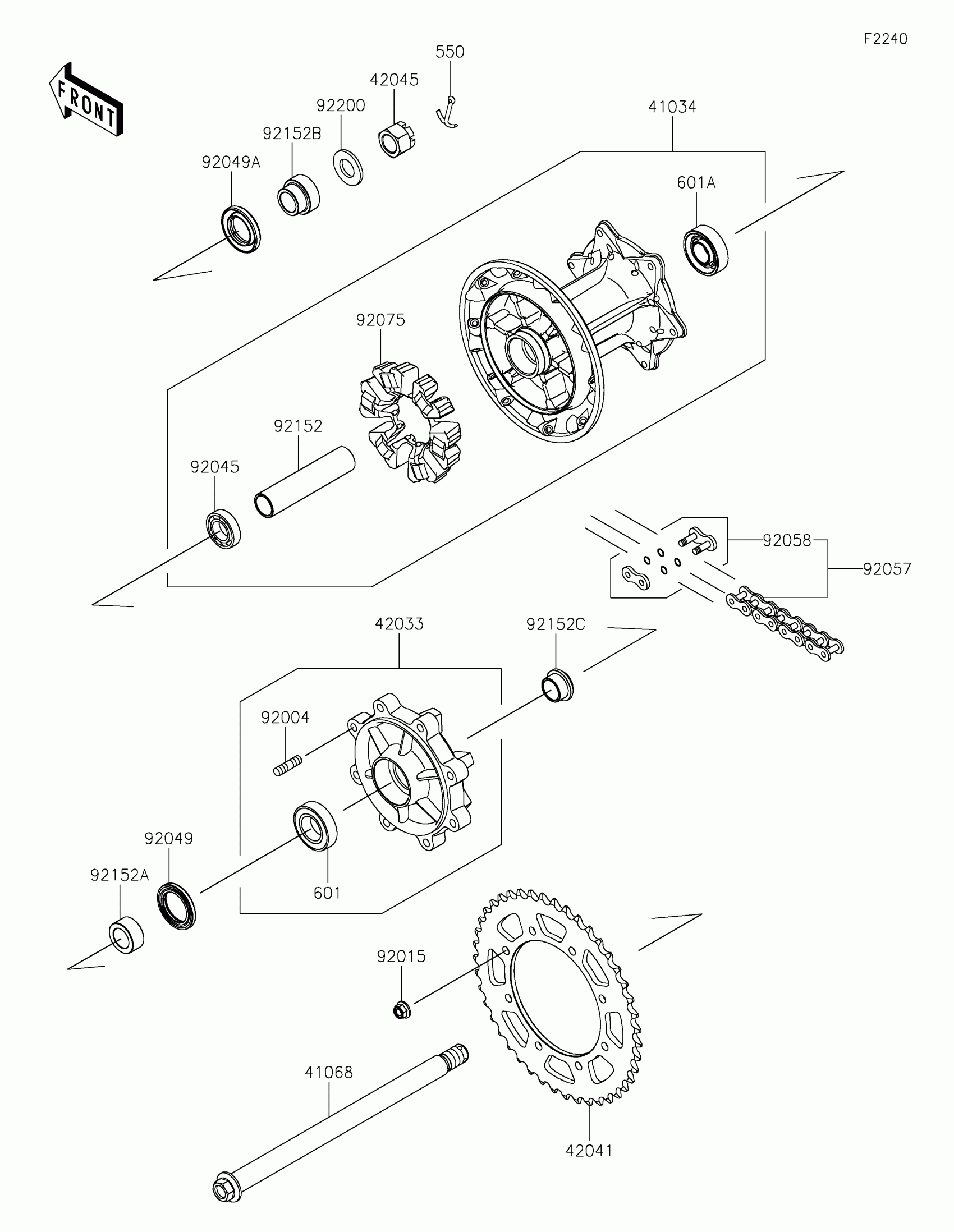

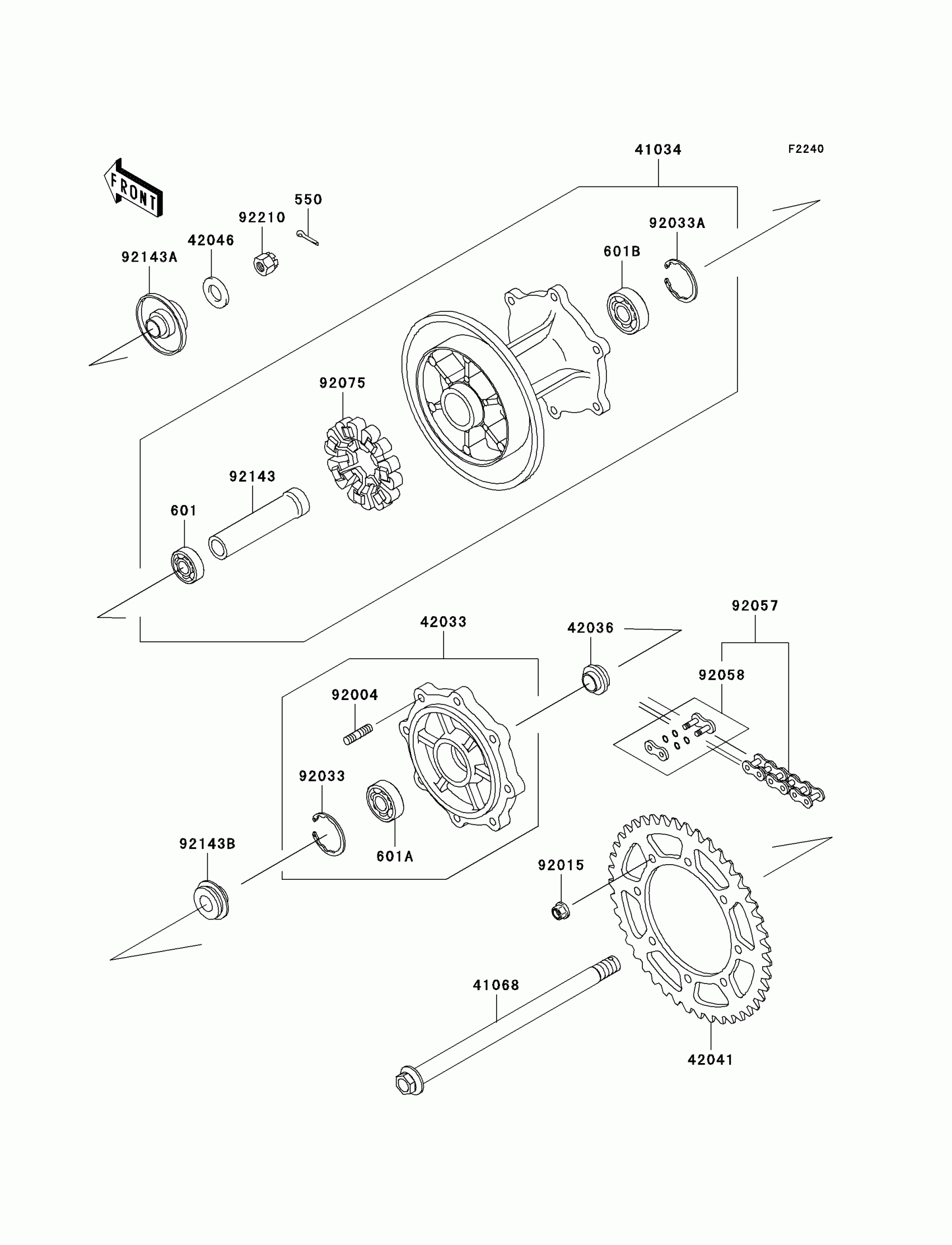

Kawasaki KLR™650 Rear Hub Diagram
