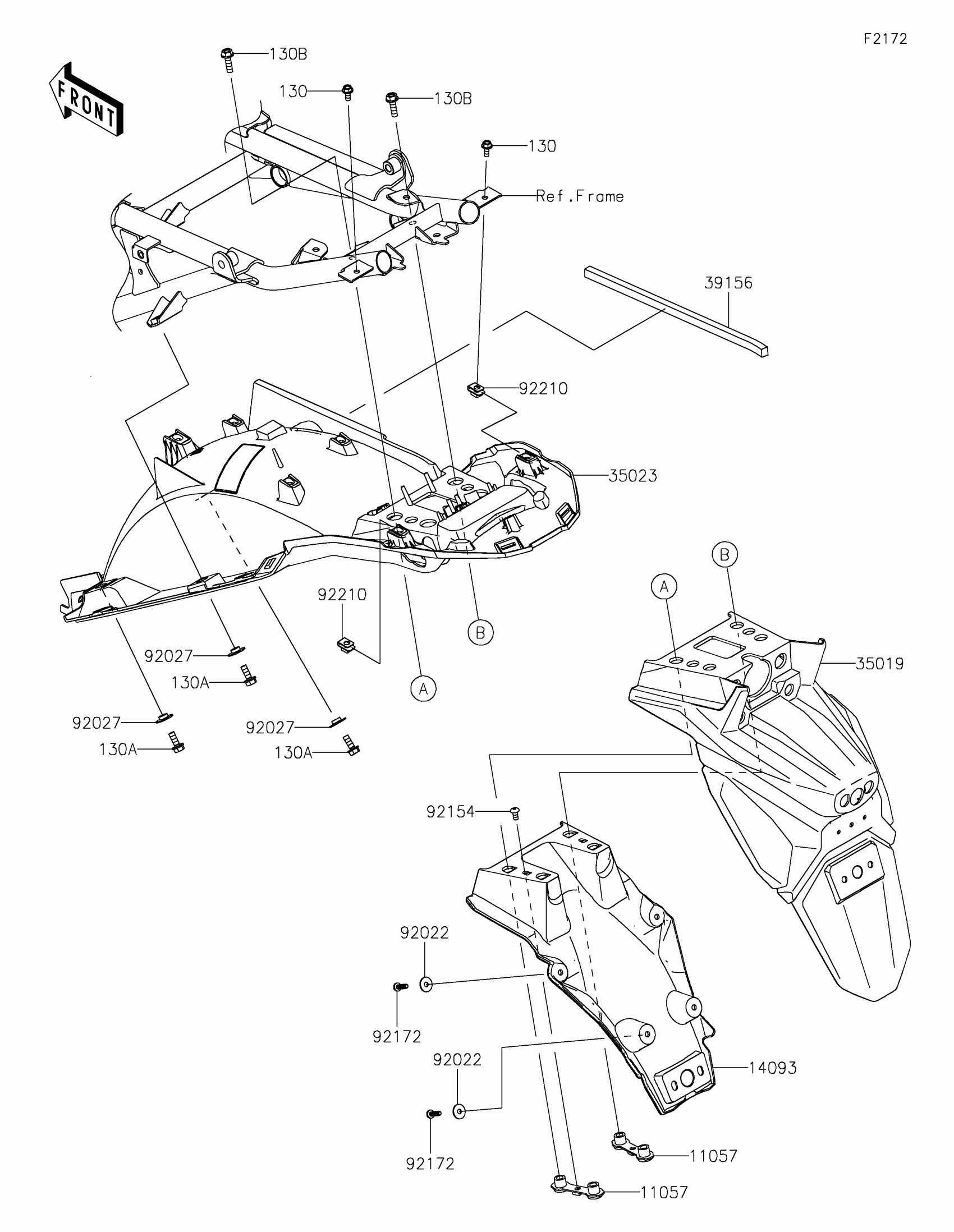

Kawasaki KLR®650 Rear Fender(s) Diagram

Description

Price

11057

BRACKET

11057-0556

$9.68

14093

COVER,FLAP

14093-1086

$42.37

35019

FLAP

35019-0683

$60.13

35023

FENDER-REAR

35023-0479

$85.62

39156

PAD,10X8X280

39156-2662

$4.17

92022

WASHER,5.2X16X1.2

92022-263

$1.41

92027

COLLAR

92027-1794

$3.43

92154

BOLT,SOCKET,5X10

92154-1547

$1.32

92172

SCREW,TAPPING,5X16

92172-0790

$0.85

92210

NUT,PLATE,5MM

92210-0935

$1.68

130

BOLT-FLANGED,5X12

130BA0512

$1.80

130A

BOLT-FLANGED,6X16

130BA0616

$1.12

130B

BOLT-FLANGED,6X20

130BA0620

$1.49
