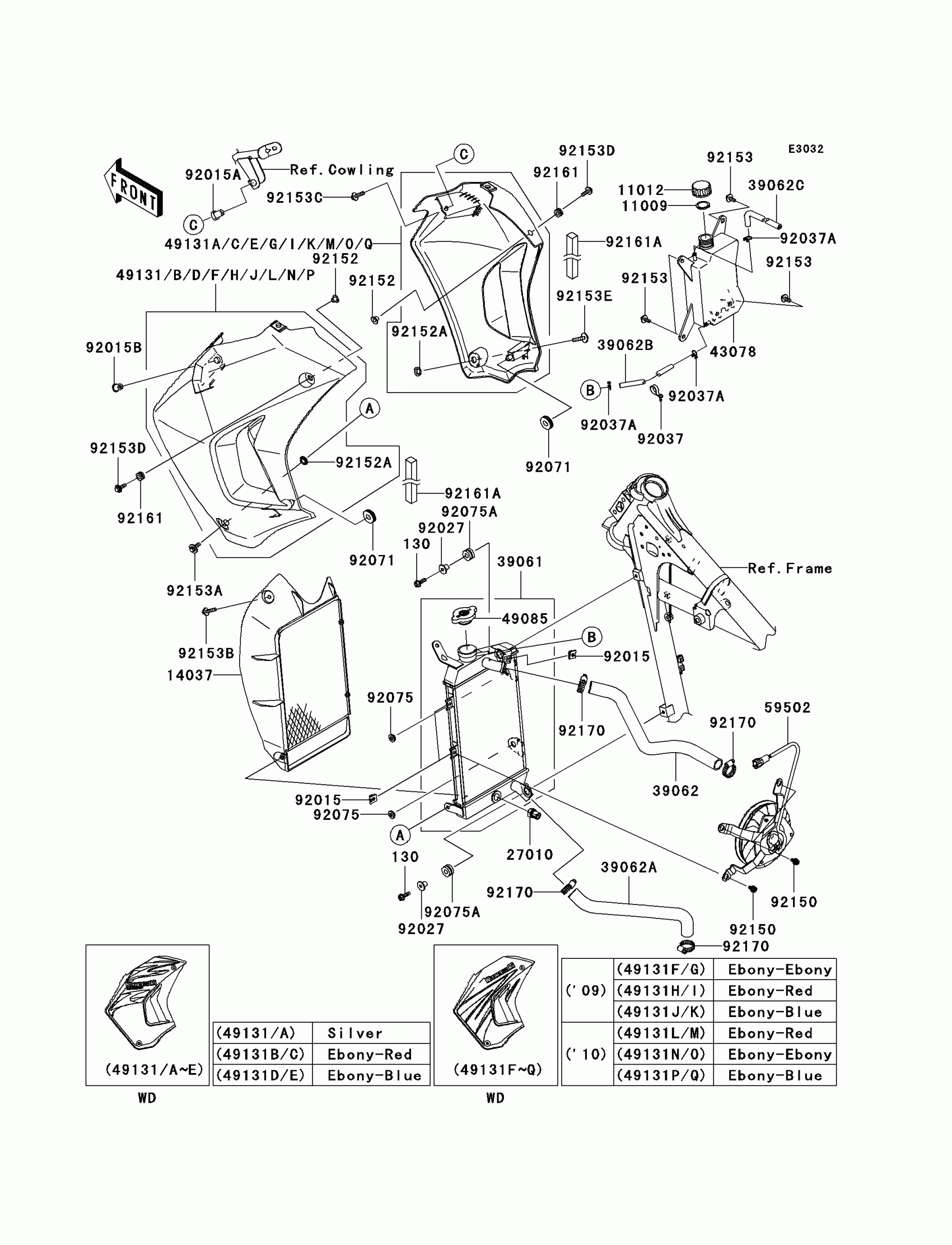

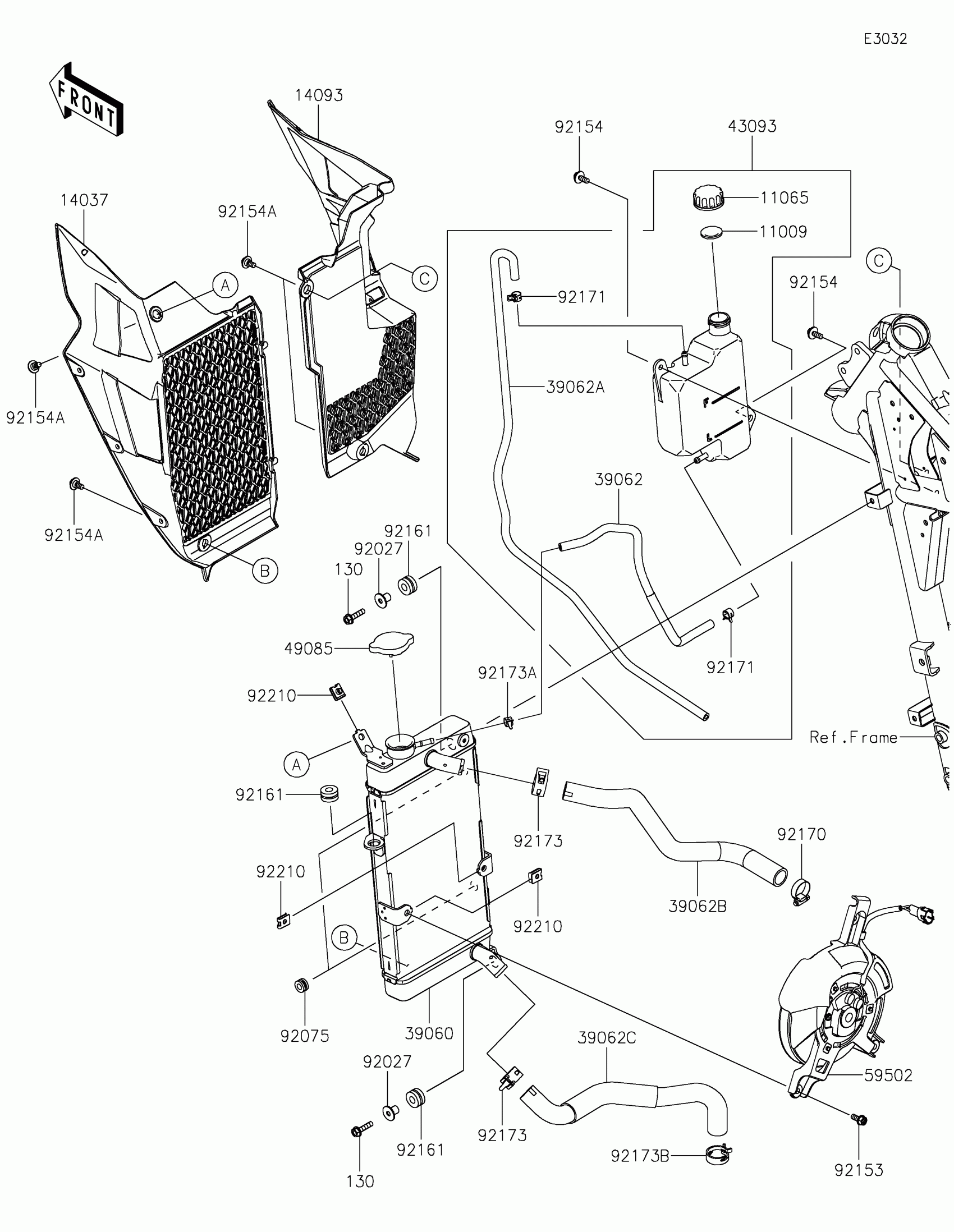

Kawasaki KLR™650 Radiator Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11012

CAP

11012-1084

$1.25

14037

SCREEN

14037-0056

$60.13

27010

SWITCH

27010-1443

$129.76

39061

RADIATOR-ASSY

39061-0098

$1,018.59

39062

HOSE-COOLING,HEAD-RAD.

39062-0148

$53.87

39062A

HOSE-COOLING,W/P-RAD.

39062-0149

$38.92

39062B

HOSE-COOLING,L=447

39062-1195

$21.40

39062C

HOSE-COOLING,RESERVOIR

39062-1220

$21.40

43078

RESERVOIR

43078-1083

$57.12

49085

CAP-ASSY-PRESSURE,P1.1

49085-1070

$44.67

49131L

SHROUD-ENGINE,LH,EBONY

49131-5285-H8

$335.83

49131M

SHROUD-ENGINE,RH,EBONY

49131-5286-H8

$320.61

49131N

SHROUD-ENGINE,LH,EBONY

49131-5287-H8

Unavailable

49131O

SHROUD-ENGINE,RH,EBONY

49131-5288-H8

$335.83

49131P

SHROUD-ENGINE,LH,EBONY

49131-5289-H8

$335.83

49131Q

SHROUD-ENGINE,RH,EBONY

49131-5290-H8

$335.83

59502

FAN-ASSY

59502-0024

Unavailable

92015

NUT

92015-1487

$3.64

92015A

NUT,RUBBER,6MM

92015-1692

$5.61

92015B

NUT

92015-1700

$6.55

92027

COLLAR,6.5X10X14.1

92027-1183

$4.18

92037

CLAMP,SPEED,L=58

92037-1163

$4.93

92037A

CLAMP,TUBE

92037-147

$5.61

92071

GROMMET

92071-1043

$3.91

92075

DAMPER,8MM

92075-1138

$2.76

92075A

DAMPER RUBBER,RR FENR

92075-209

$3.57

92150

BOLT,6X12

92150-1186

$2.56

130

BOLT-FLANGED,6X20

130BA0620

$1.28

92152

COLLAR,6.3X8.3X9.2

92152-0237

$4.27

92152A

COLLAR

92152-1235

$3.15

92153

BOLT,6X16

92153-0863

$1.57

92153A

BOLT,6X20

92153-0864

$5.67

92153B

BOLT,FLANGED WP,6X25

92153-1008

$2.15

92153C

BOLT,FLANGED,6X30

92153-1457

$2.71

92153D

BOLT,6X20

92153-1523

Unavailable

92153E

BOLT,6X30

92153-1895

$3.51

92161

DAMPER

92161-0056

$2.38

92161A

DAMPER

92161-0509

$19.31

92170

CLAMP,COOLING HOSE

92170-1033

$11.50
