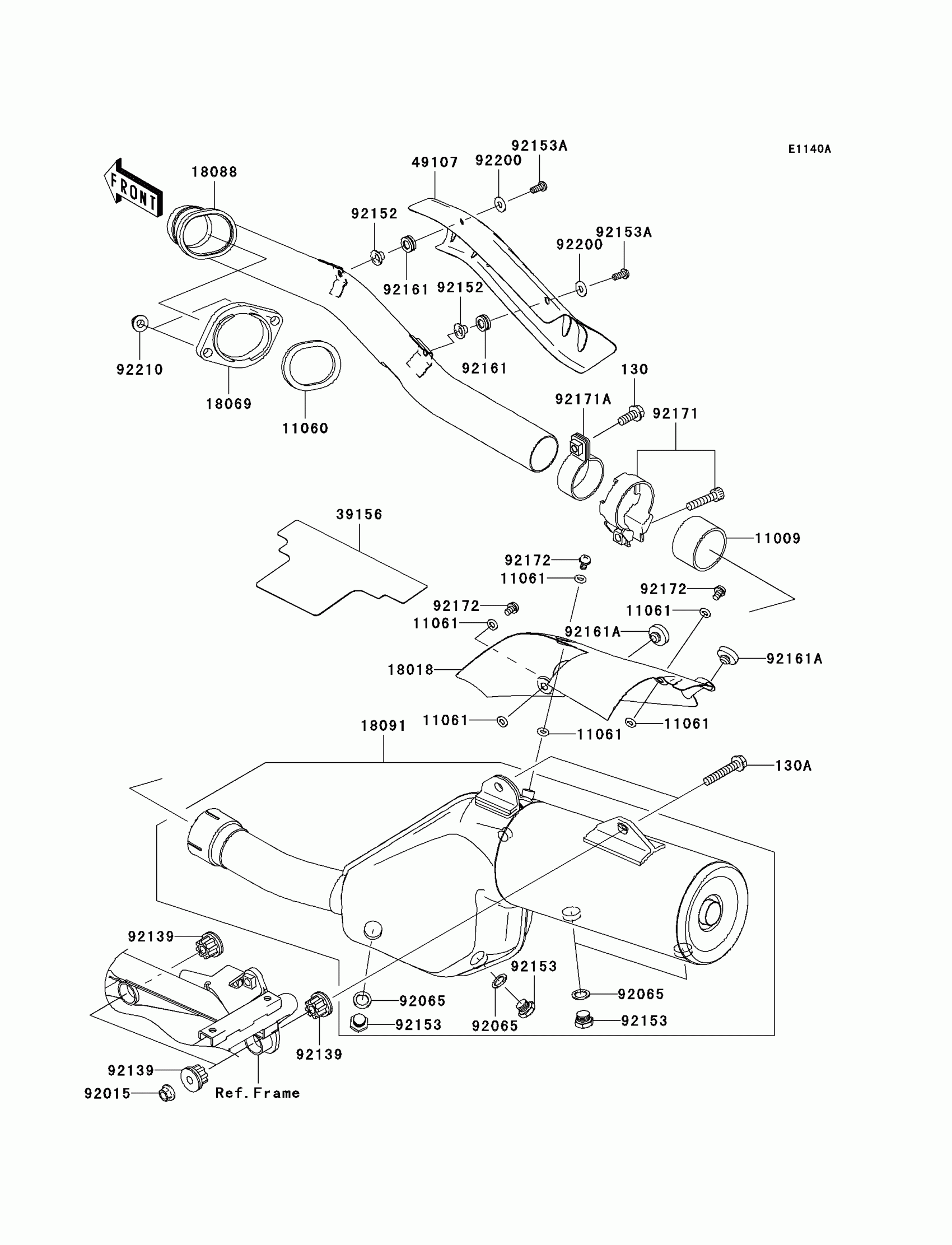

Kawasaki KLR™650 Muffler(s)(EAF) Diagram

#

Description
Price

130

BOLT-FLANGED,8X20

130BD0820

$2.29

130A

BOLT-FLANGED

130CC0845

$3.15

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1666

$30.00

11060

GASKET,EXHAUST PIPE HOLDER

11060-1108

$7.31

11061

GASKET,6.2X11.5X1.5

11061-0372

Unavailable

18018

PLATE-HEAT GUARD

18018-0006

$110.21

18069

HOLDER-EXHAUST PIPE

18069-1063

$33.48

18088

PIPE-EXHAUST

18088-0551

$316.24

18091

BODY-COMP-MUFFLER

18091-0510

Unavailable

39156

PAD

39156-0264

$52.87

49107

COVER-EXHAUST PIPE

49107-0112

$119.86

92015

NUT,8MM

92015-1402

$3.72

92065

GASKET,12.5X18X1,DRAIN PLUG

92065-073

$3.24

92139

BUSHING,MUFFLER

92139-0288

$24.31

92152

COLLAR

92152-0620

$3.72

92153

BOLT

92153-1813

Unavailable

92153A

BOLT,SOCKET,6X14

92153-1886

$2.42

92161

DAMPER

92161-0306

$4.47

92161A

DAMPER

92161-0336

$4.47

92171

CLAMP

92171-0139

Unavailable

92171A

CLAMP,43MM

92171-0752

$18.15

92172

SCREW,6X10

92172-0097

$2.00

92200

WASHER,6.5X16X1.0

92200-3712

Unavailable

92210

NUT,CAP,8MM

92210-1132

$3.33
