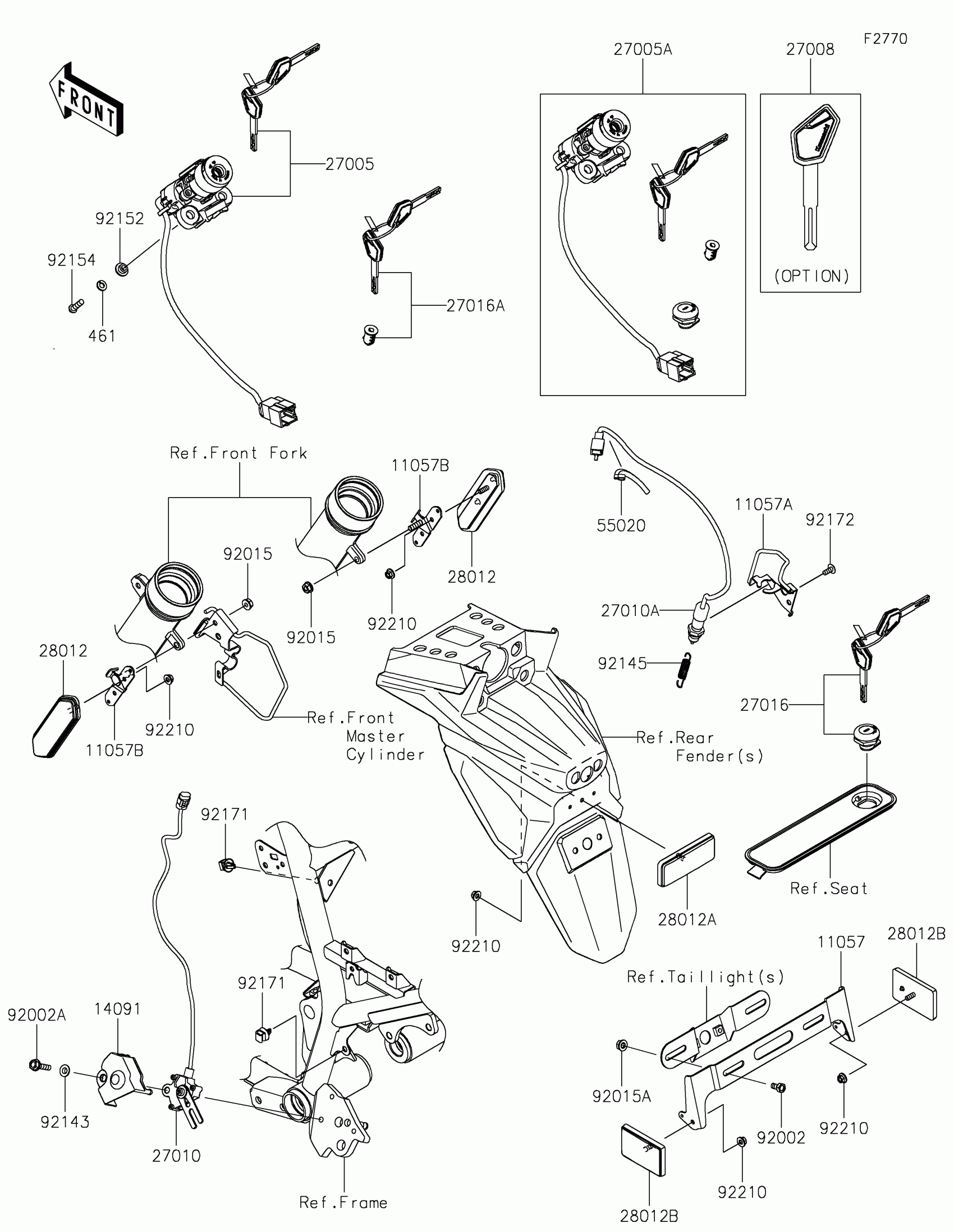

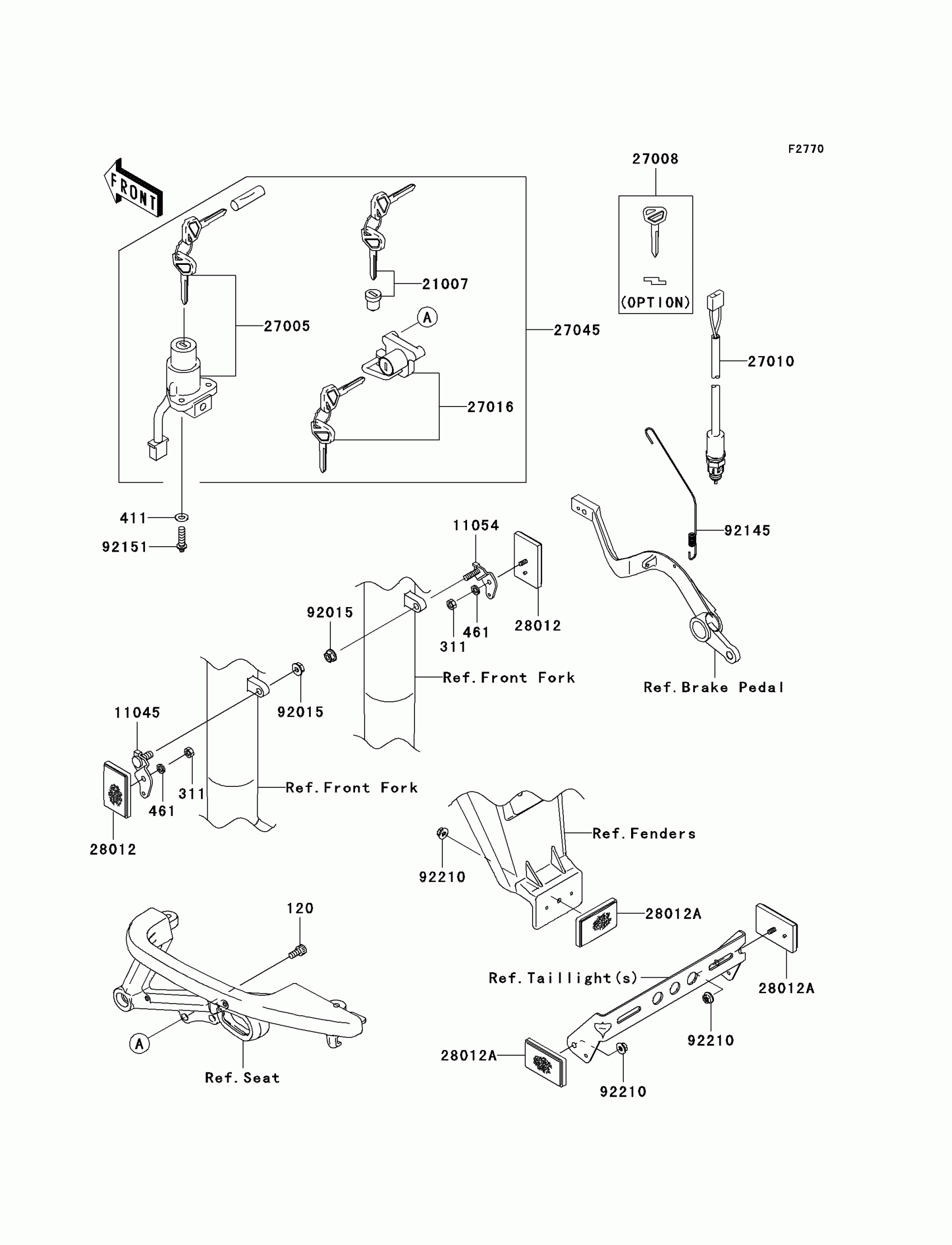

Kawasaki KLR™650 Ignition Switch Diagram

Description

Price

120

BOLT-SOCKET,6X12

120CB0612

$2.05

311

NUT-HEX,5MM

311AB0500

$0.49

411

WASHER-PLAIN,6MM

411AA0600

$2.39

461

WASHER-SPRING,5MM

461DB0500

$1.29

11045

BRACKET,REFLECTOR,FR

11045-1354

$8.03

11054

BRACKET,REFLECTOR,FR

11054-1889

$9.97

21007

ROTOR,LOCK,TANK CAP

21007-5052

$58.38

27005

SWITCH-ASSY-IGNITION

27005-0030

$160.08

27008

KEY-LOCK,BLANK

27008-1220

$14.07

27010

SWITCH,REAR BRAKE

27010-1489

$42.42

27016

LOCK-ASSY,HELMET

27016-5349

$69.10

27045

SWITCH-ASSY

27045-5340

$236.96

28012

REFLECTOR-REFLEX

28012-1003

$20.69

28012A

REFLECTOR-REFLEX

28012-1088

$20.82

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.37

92145

SPRING,REAR BRAKE SWITCH

92145-0422

$7.61

92151

BOLT,TORX,6X22

92151-1946

$3.14

92210

NUT,FLANGED,5MM

92210-0007

$2.20
