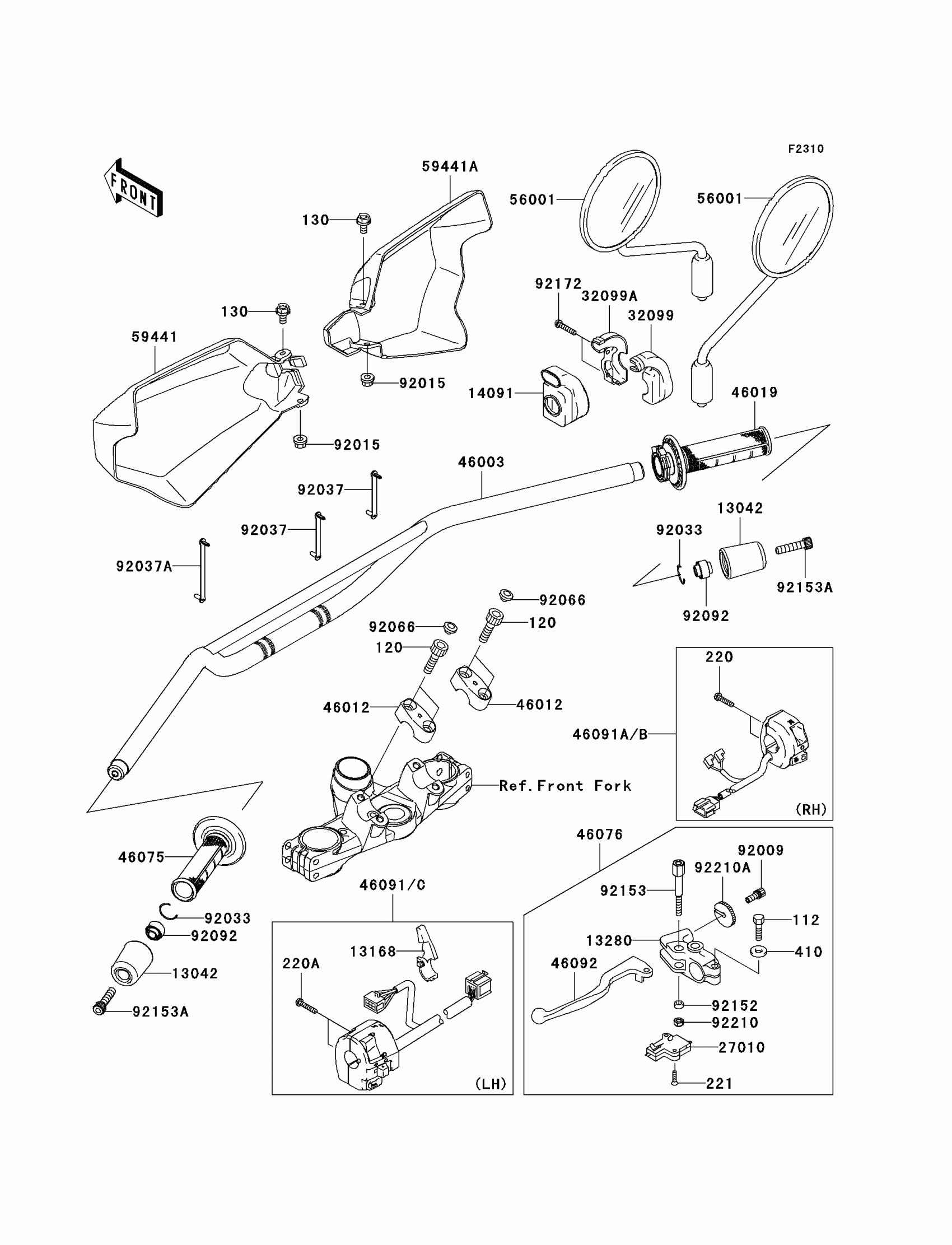

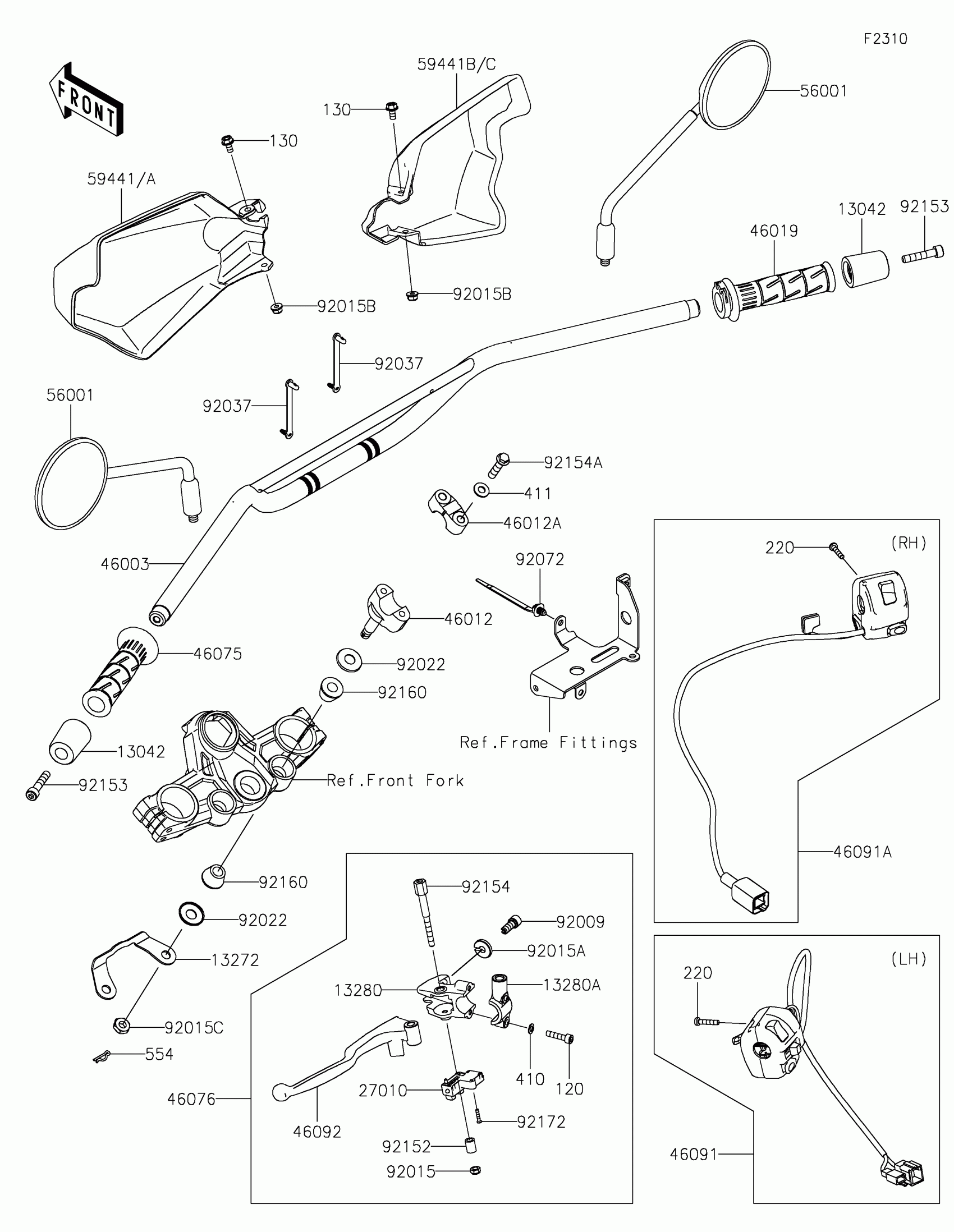

Kawasaki KLR™650 Handlebar Diagram

#

Description
Price

112

BOLT-UPSET,6X22

112BB0622

$4.17

120

BOLT-SOCKET,8X30

120CB0830

$3.57

130

BOLT-FLANGED,6X12

130BB0612

$1.68

220

SCREW-PAN-CROS,5X22

220AB0522

$0.89

220A

SCREW-PAN-CROS,5X25

220AB0525

$2.66

221

SCREW-CSK-CROS,3X16

221AB0316

$3.24

410

WASHER-PLAIN-SMALL,6MM

410AB0600

$0.68

13042

WEIGHT,HANDLE

13042-1006

Unavailable

13168

LEVER,CHOKE

13168-1756

$2.06

13280

HOLDER,CLUTCH LEVER

13280-0105

$33.17

14091

COVER,THROTTLE CASE

14091-0182

$7.67

27010

SWITCH,CLUTCH,BLACK

27010-1094

$25.31

32099

CASE,THROTTLE,RR

32099-0002

$30.89

32099A

CASE,THROTTLE,FR

32099-0003

$30.89

46003

HANDLE,P.SILVER

46003-0104-458

$138.46

46012

HOLDER-HANDLE,UPP,P.SILVER

46012-0042-458

$35.37

46019

GRIP-ASSY,THROTTLE

46019-0028

$47.76

46075

GRIP,LH

46075-0043

$33.48

46076

LEVER-ASSY-GRIP,CLUTCH

46076-0037

$58.31

46091B

HOUSING-ASSY-CONTROL,RH

46091-0135

$153.53

46091C

HOUSING-ASSY-CONTROL,LH

46091-0193

$167.47

46092

LEVER-GRIP,CLUTCH

46092-1206

Unavailable

56001

MIRROR-ASSY

56001-1437

Unavailable

59441

COVER-HANDLE,LH,EBONY

59441-0031-6C

$36.13

59441A

COVER-HANDLE,RH,EBONY

59441-0032-6C

$35.48

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

$11.50

92015

NUT,LOCK,FLANGED,6MM

92015-1603

$3.57

92033

RING-SNAP,OD=22.2

92033-1102

Unavailable

92037

CLAMP,SPEED,L=58

92037-1163

$4.93

92037A

CLAMP,SPEED,L=80.5

92037-1903

$5.99

92066

PLUG

92066-1281

$4.39

92092

BUSHING-RUBBER,HANDLE

92092-1018

Unavailable

92152

COLLAR,6.5X10.5X4

92152-0433

$3.56

92153

BOLT,LEVER SET

92153-1538

$31.36

92153A

BOLT,SOCKET,8X40

92153-1901

$3.76

92172

SCREW,5X20

92172-0069

$2.30

92210

NUT,LOCK,6MM

92210-0006

$1.76

92210A

NUT,CABLE ADJUST LOCK,8MM

92210-0311

$13.93
