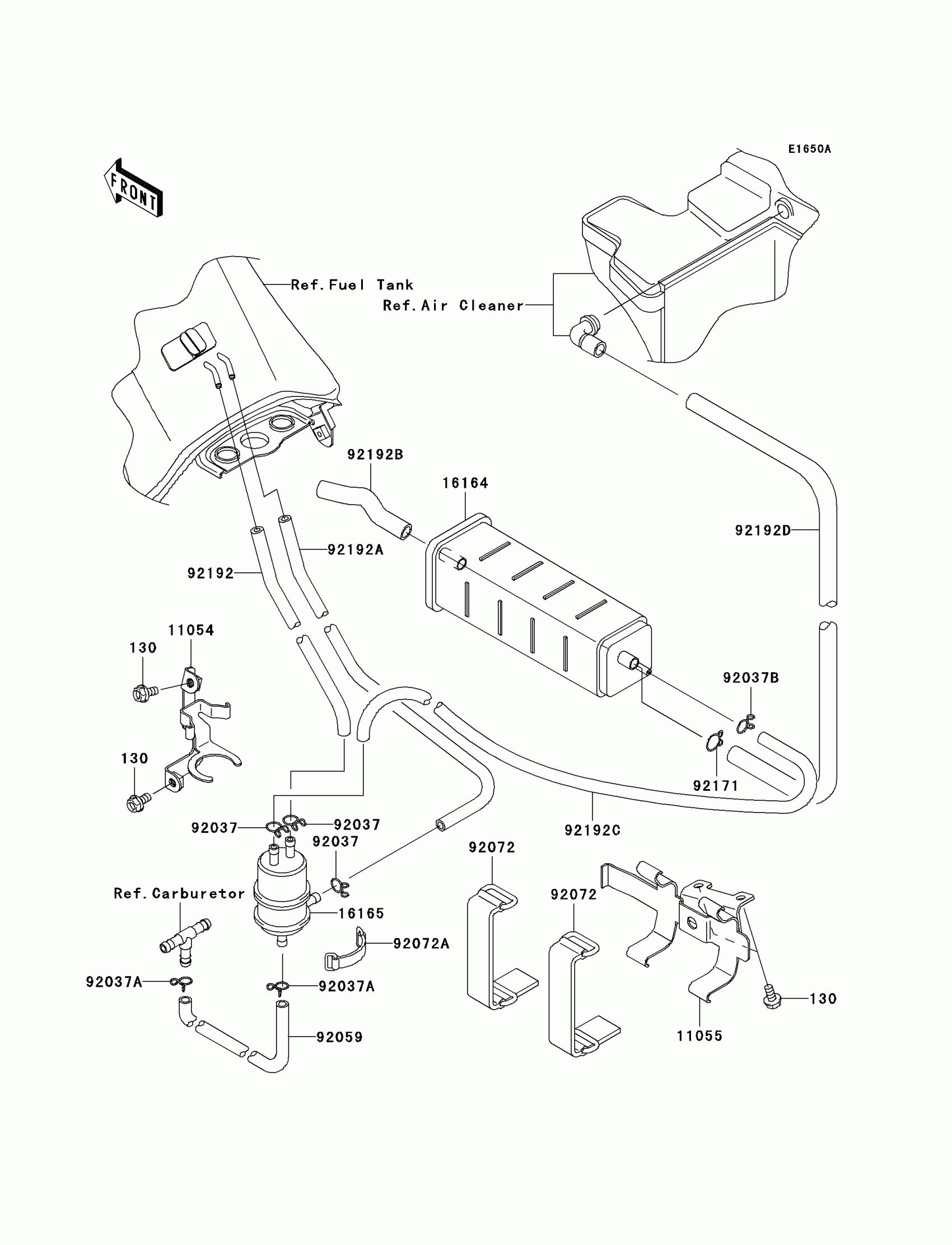

Kawasaki KLR™650 Fuel Evaporative System(E9F/EAF) Diagram

Description

Price

130

BOLT-FLANGED,6X12

130BA0612

$1.46

11054

BRACKET,SEPARATOR

11054-0494

$41.55

11055

BRACKET,CANISTER

11055-1266

$33.63

16164

CANISTER

16164-0009

$140.36

16165

SEPARATOR

16165-1001

$81.73

92037

CLAMP,TUBE

92037-147

$5.84

92037A

CLAMP

92037-1712

$3.97

92037B

CLAMP,14MM

92037-1862

$5.76

92059

TUBE,4X9X310,WHITE

92059-1804

$15.01

92072

BAND,L=90

92072-0135

$14.20

92072A

BAND,L=50

92072-1419

$12.72

92171

CLAMP

92171-0576

$3.97

92192

TUBE,5X9X400

92192-0519

$48.13

92192A

TUBE,5X10X300

92192-0520

$38.92

92192B

TUBE,AIR INTAKE,CANISTER

92192-0743

$31.02

92192C

TUBE,SEPARATOR-CANISTER

92192-0758

$96.60

92192D

TUBE,A/C-CANISTER

92192-0759

$80.94
