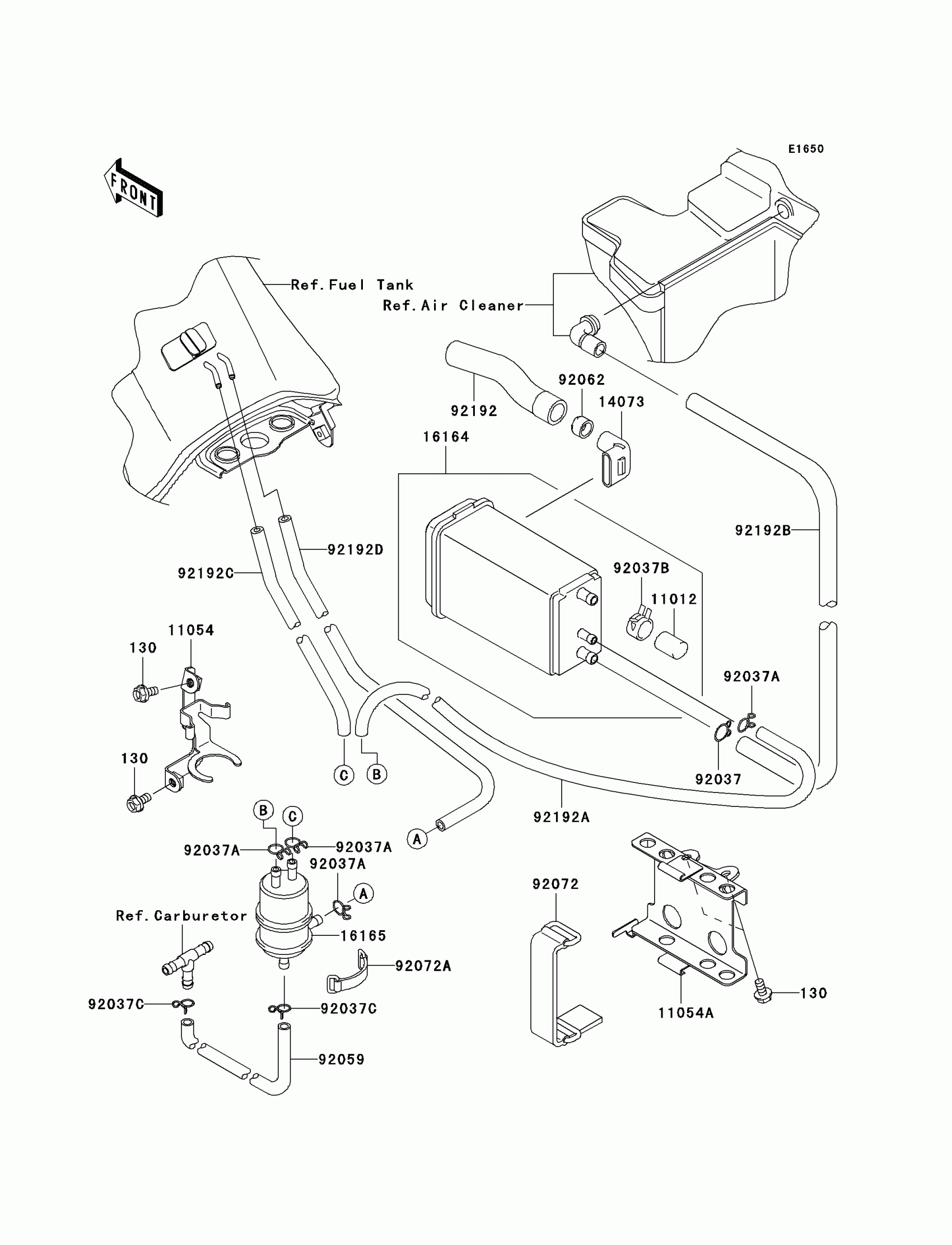

Kawasaki KLR™650 Fuel Evaporative System(E8F) Diagram

Description

Price

130

BOLT-FLANGED,6X12

130BA0612

$1.46

11012

CAP,CANISTER

11012-1388

$8.31

11054

BRACKET,SEPARATOR

11054-0494

$41.55

11054A

BRACKET,CANISTER

11054-0495

$38.81

14073

DUCT,CANISTER

14073-1219

$19.29

16164

CANISTER

16164-1054

$132.79

16165

SEPARATOR

16165-1001

$81.73

92037

CLAMP,12.5MM

92037-1271

$1.80

92037A

CLAMP,TUBE

92037-147

$5.84

92037B

CLAMP,CANISTER

92037-1512

$5.71

92037C

CLAMP

92037-1712

$3.97

92059

TUBE,4X9X310,WHITE

92059-1804

$15.01

92062

NOZZLE,CANISTER

92062-1070

$10.64

92072

BAND,L=90

92072-0135

$14.20

92072A

BAND,L=50

92072-1419

$12.72

92192

TUBE,AIR INTAKE,CANISTER

92192-0336

$37.50

92192A

TUBE,SEPARATOR-CANISTER

92192-0517

$105.62

92192B

TUBE,A/C-CANISTER

92192-0518

$39.13

92192C

TUBE,5X9X400

92192-0519

$48.13

92192D

TUBE,5X10X300

92192-0520

$38.92
