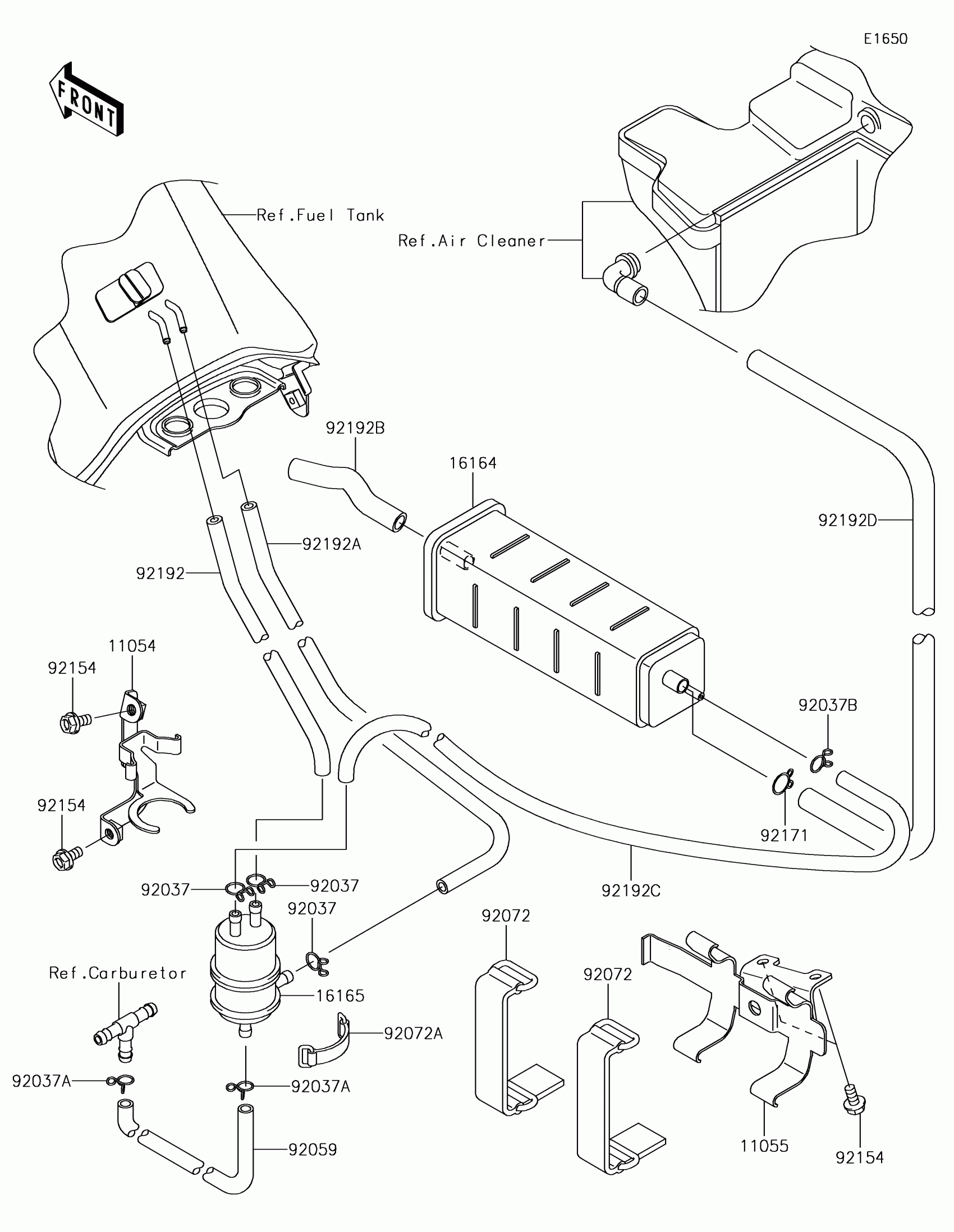

Kawasaki KLR™650 Fuel Evaporative System(CA) Diagram

Description

Price

11054

BRACKET,SEPARATOR

11054-0494

$41.55

11055

BRACKET,CANISTER

11055-1266

$33.63

16164

CANISTER

16164-0009

$140.36

16165

SEPARATOR

16165-1001

$79.83

92037

CLAMP,TUBE

92037-147

$5.61

92037A

CLAMP

92037-1712

$3.81

92037B

CLAMP,14MM

92037-1862

$5.76

92059

TUBE,4X9X310,WHITE

92059-1804

$14.40

92072

BAND,L=90

92072-0135

$13.62

92072A

BAND,L=50

92072-1419

$12.21

92154

BOLT,FLANGED,6X12

92154-1050

$1.68

92171

CLAMP

92171-0576

$3.81

92192

TUBE,5X9X400

92192-0519

$48.13

92192A

TUBE,5X10X300

92192-0520

$38.92

92192B

TUBE,AIR INTAKE,CANISTER

92192-0743

$31.02

92192C

TUBE,SEPARATOR-CANISTER

92192-0758

$96.60

92192D

TUBE,A/C-CANISTER

92192-0759

$80.94
