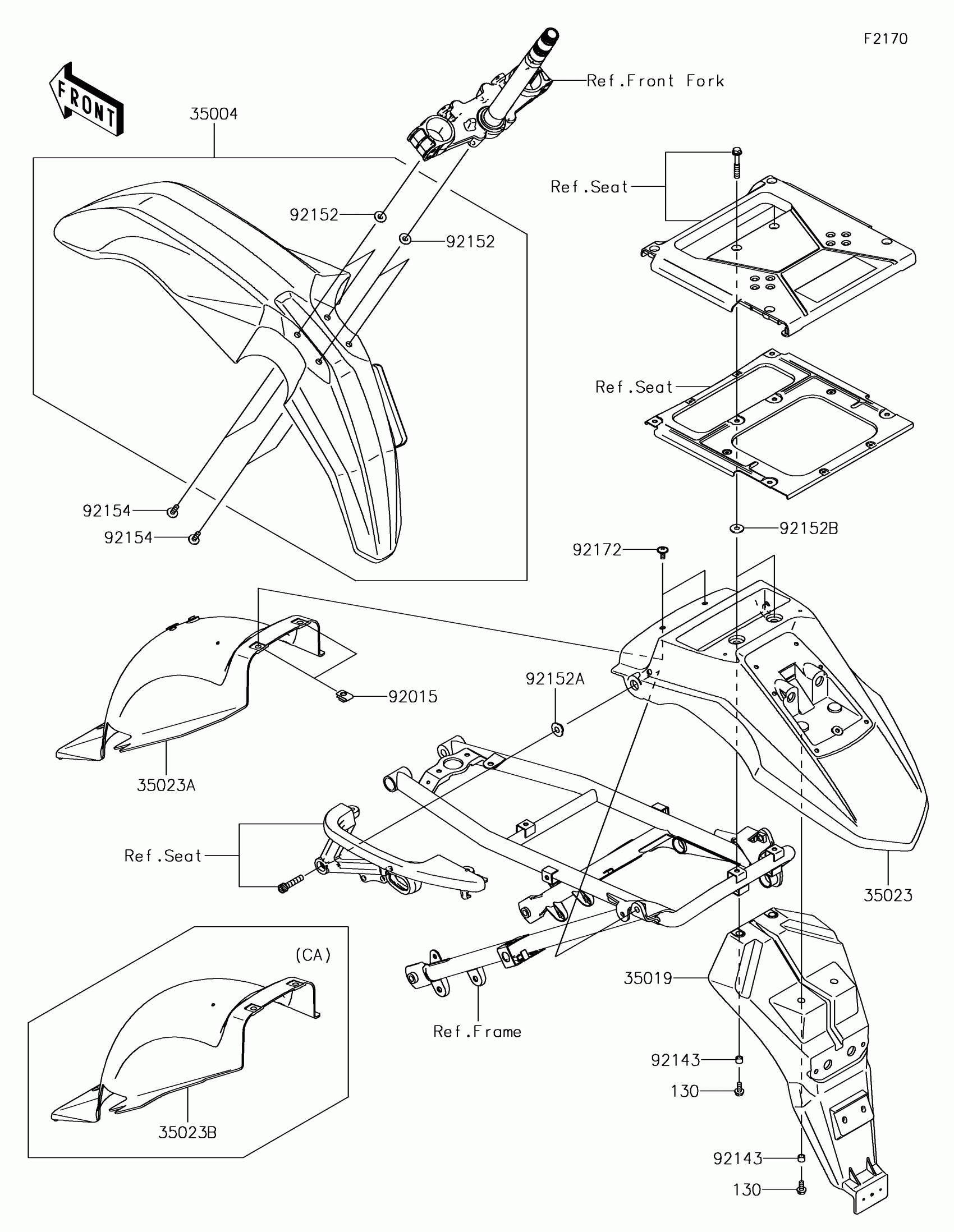

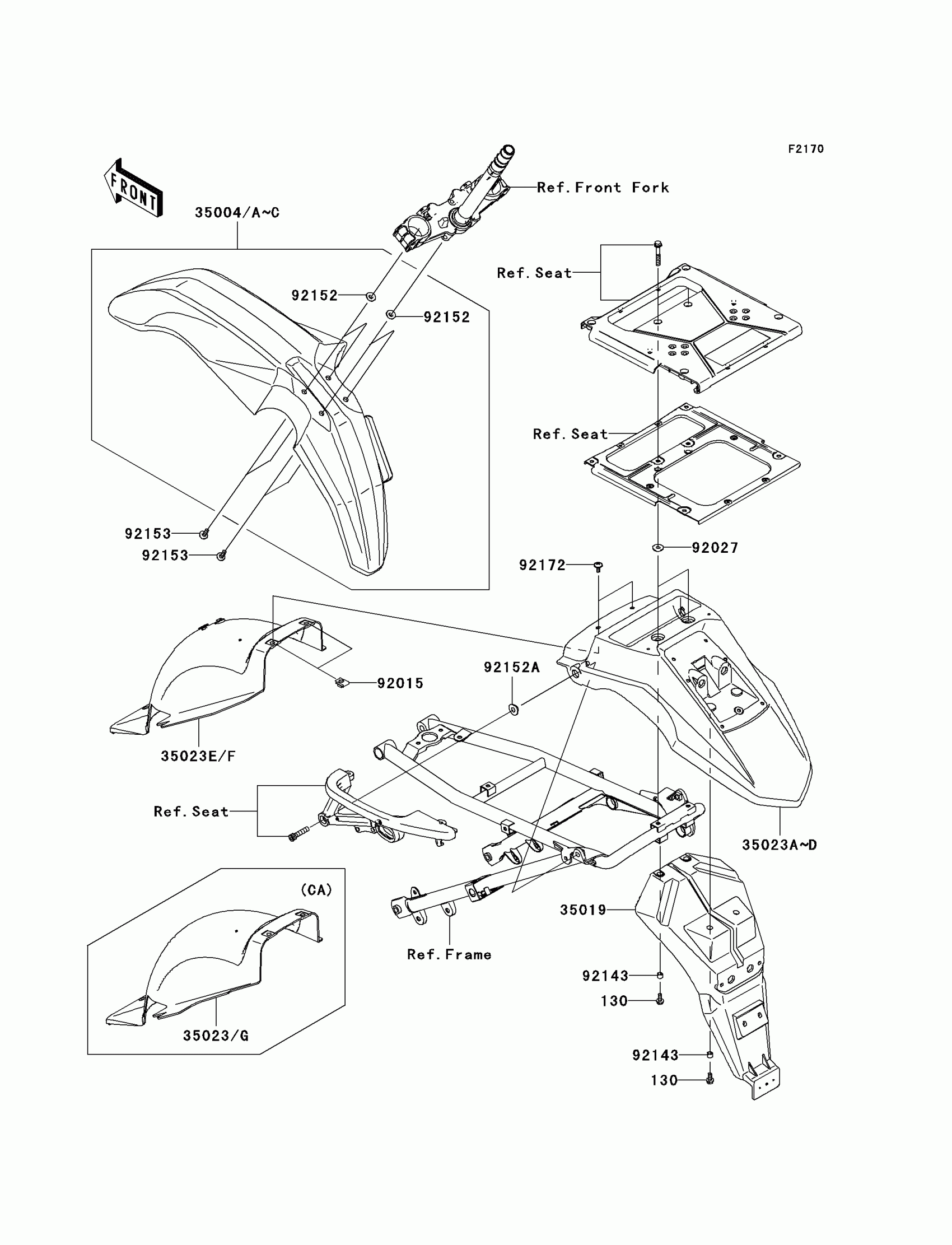

Kawasaki KLR™650 Fenders Diagram

Description

Price

130

BOLT-FLANGED,6X14

130BA0614

$0.97

35004B

FENDER-FRONT,EBONY

35004-0102-6C

$161.15

35019

FLAP

35019-0070

$69.47

35023C

FENDER-REAR,RR,EBONY

35023-0086-6C

$120.67

92015

NUT,6MM

92015-1602

$5.61

92027

COLLAR,L=5.1

92027-1260

$4.67

92143

COLLAR,6.8X10X7

92143-1407

$1.01

92152

COLLAR

92152-0427

$5.91

92152A

COLLAR

92152-0596

$7.67

92153

BOLT,6X20

92153-1523

Unavailable

92172

SCREW,6X14

92172-0004

$1.98

35023F

FENDER-REAR,FR

35023-0178

Unavailable

35023G

FENDER-REAR,FR

35023-0179

$73.53
