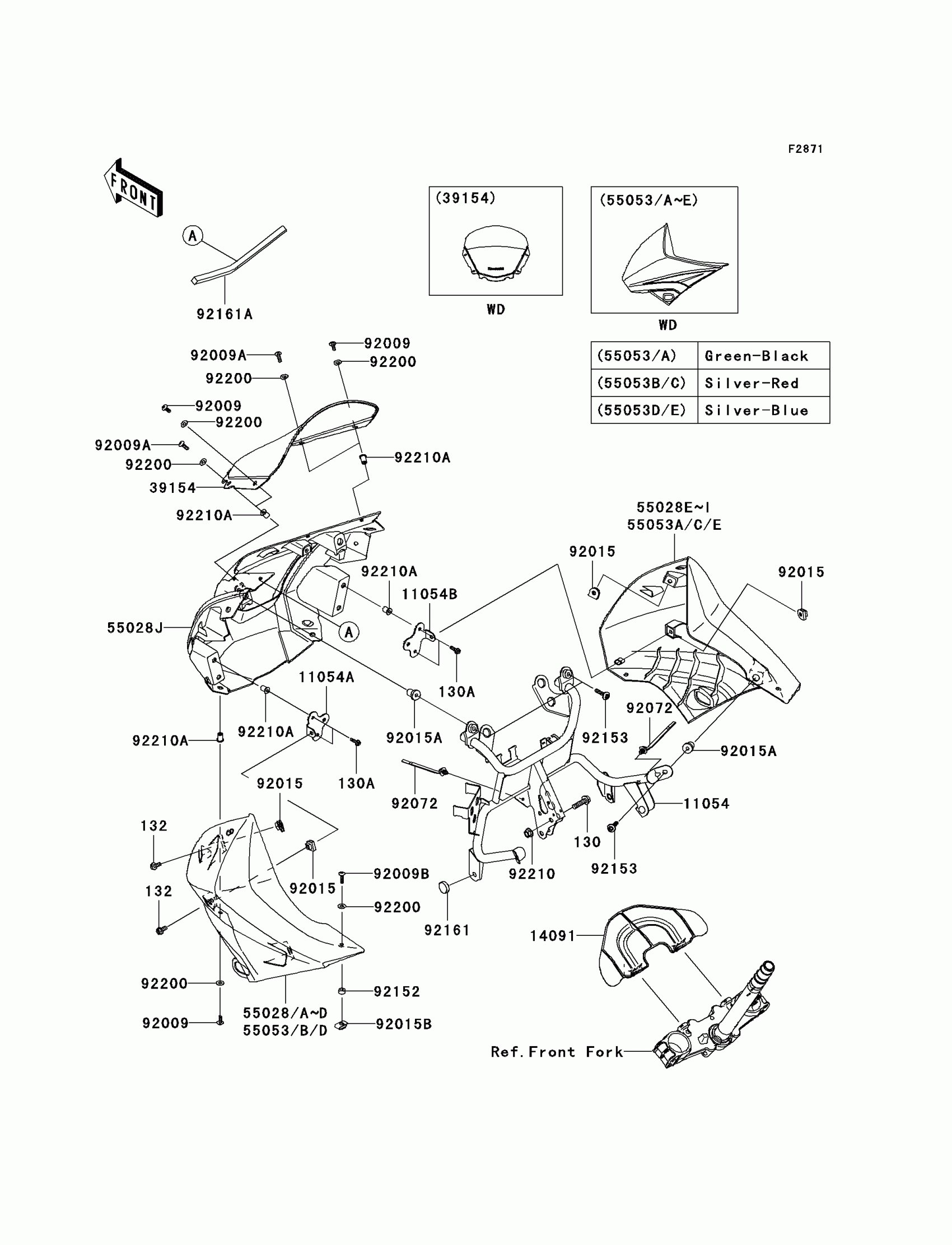

Kawasaki KLR™650 Cowling Diagram

#

Description
Price

130

BOLT-FLANGED,8X30

130BA0830

$1.44

130A

BOLT-FLANGED,5X16

130BB0516

$1.73

132

BOLT-FLANGED-SMALL,6X14

132BB0614

$1.77

11054

BRACKET,UPP COWLING

11054-0391

Unavailable

11054A

BRACKET,UPP COWLING,LH

11054-0457

$10.27

11054B

BRACKET,UPP COWLING,RH

11054-0458

Unavailable

14091

COVER,SOUNDPROOF

14091-0658

$27.34

39154

WINDSHIELD

39154-5028

Unavailable

55028

COWLING,UPP,LH,C.P.RED

55028-0111-G2

$253.79

55028B

COWLING,UPP,LH,EBONY

55028-0111-H8

$202.69

55028C

COWLING,UPP,LH,C.T.BLUE

55028-0111-620

$248.12

55028E

COWLING,UPP,RH,C.P.RED

55028-0112-G2

$253.79

55028G

COWLING,UPP,RH,EBONY

55028-0112-H8

$194.07

55028H

COWLING,UPP,RH,C.T.BLUE

55028-0112-620

$248.12

55028J

COWLING,UPP,CNT,F.BLACK

55028-0201-21

$249.28

92009

SCREW,5X14

92009-1653

$3.03

92009A

SCREW,5X18

92009-1655

$3.29

92009B

SCREW,5X20,BLACK

92009-1656

$3.03

92015

NUT,6MM

92015-1602

$5.61

92015A

NUT,RUBBER,6MM

92015-1692

$5.61

92015B

NUT,5MM

92015-1710

$4.67

92072

BAND,OS170-FT7(BLACK)

92072-1414

$2.84

92152

COLLAR,5.6X12X5.7

92152-0618

$3.01

92153

BOLT,SOCKET,6X30

92153-1528

$2.34

92161

DAMPER

92161-0336

$4.27

92161A

DAMPER,UPP COWLING

92161-0536

$4.31

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

$1.20

92210

NUT,FLANGED,8MM

92210-0304

$2.34

92210A

NUT,WELL,5MM

92210-0498

$5.58
