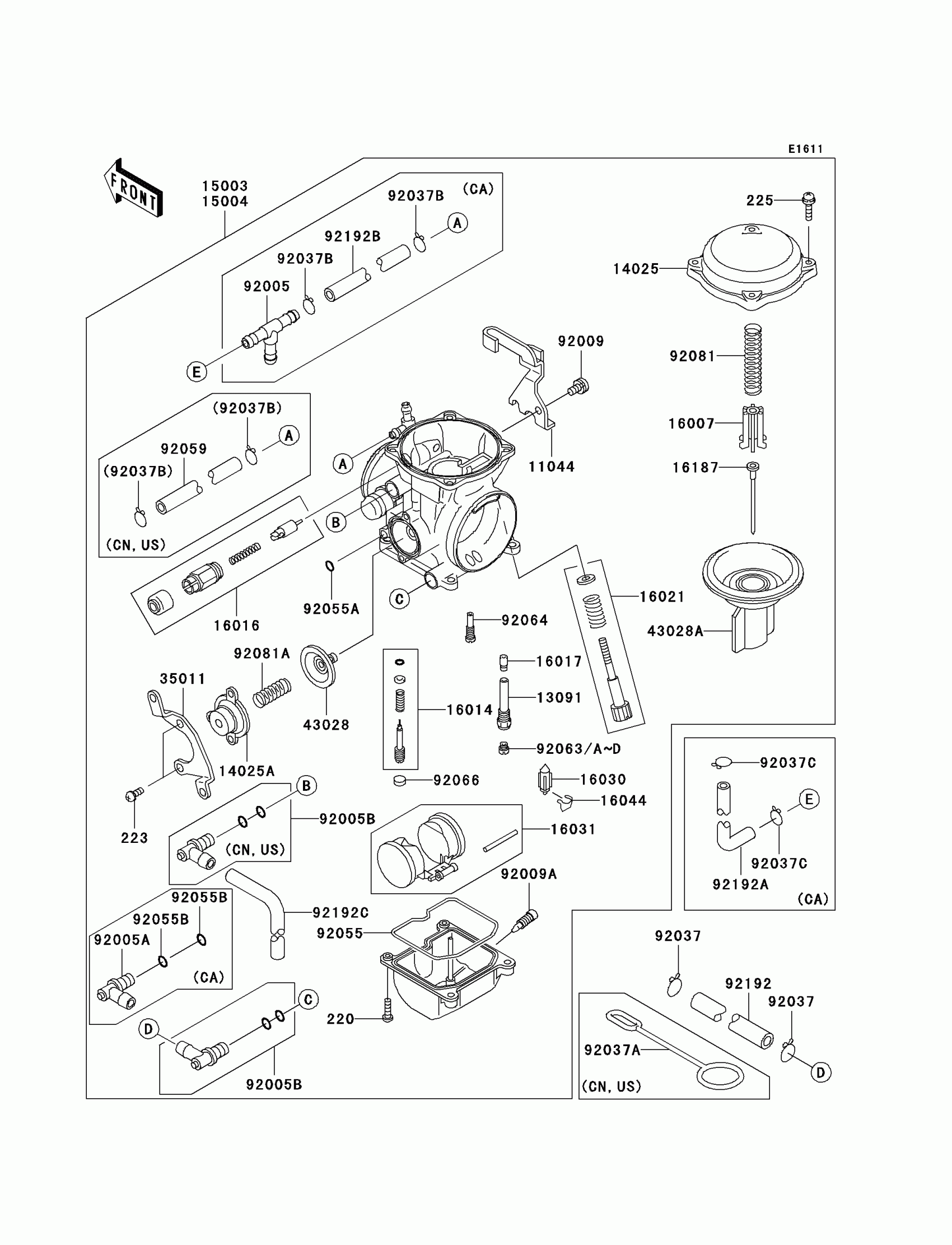

Kawasaki KLR™650 Carburetor(E8F/E9F) Diagram

#

Description
Price

11044

BRACKET,THROTTLE CABLE

11044-1353

$60.78

13091

HOLDER,NEEDLE JET

13091-1425

$26.89

14025

COVER,MIXING CHAMBER

14025-1890

$79.30

14025A

COVER,AIR CUT VALVE

14025-1903

$59.59

16007

SEAT-SPRING,DIAPHRAGM VALVE

16007-1113

$19.49

16014

SCREW-PILOT AIR

16014-1083

$21.44

16016

PLUNGER

16016-1087

$80.64

16017

JET-NEEDLE,#6

16017-1254

Unavailable

16021

SCREW-THROTTLE STOP

16021-1201

$47.83

16030

VALVE-FLOAT

16030-1057

$42.75

16031

FLOAT

16031-1077

$48.44

16044

CLAMP,FLOAT VALVE

16044-007

$6.30

16187

NEEDLE-JET,N6NJ

16187-0275

$37.62

35011

STAY,AIR CUT VALVE

35011-1232

$34.21

43028

DIAPHRAGM,5.9MM,AIR CUT VALVE

43028-1053

Unavailable

43028A

DIAPHRAGM,VALVE

43028-1062

$200.91

92009

SCREW,5X10

92009-1365

$5.84

92009A

SCREW,DRAIN,M6X0.75

92009-1551

$7.86

92037

CLAMP,12.5MM

92037-1271

$1.80

92037B

CLAMP,TUBE

92037-1477

$3.43

92055

RING-O,FLOAT CHAMBER

92055-1222

$13.70

92055A

RING-O

92055-1245

$4.42

220

SCREW-PAN-CROS,4X14

220AA0414

$3.65

223

SCREW-PAN-WS-CROS,4X10

223C0410

$0.73

225

SCREW-PAN-WSP-CROS,4X18

225AB0418

$3.88

92063

JET-MAIN,#140

92063-1013

$11.16

92063A

JET-MAIN,#142

92063-1016

$13.39

92063B

JET-MAIN,#145

92063-1017

$11.16

92063C

JET-MAIN,#148

92063-1324

$13.39

92063D

JET-MAIN,#150

92063-1330

$13.39

92064

JET-PILOT,#40

92064-1108

$13.38

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$4.01

92081

SPRING,DIAPHRAGM VALVE

92081-1718

$26.00

92081A

SPRING,AIR CUT VALVE

92081-1719

$12.05

92192

TUBE,FUEL,6.2X13.2X170

92192-0453

$25.78

92192C

TUBE,L=360

92192-0589

$29.94

15003

CARBURETOR-ASSY,CVK40

15003-0118

$860.11

15004

CARBURETOR-ASSY,CVK40

15004-0050

$860.11

92005

FITTING,FUEL,T-TYPE

92005-1112

$11.16

92005A

FITTING,L-TYPE

92005-1144

Unavailable

92005B

FITTING,L-TYPE

92005-1283

$8.54

92005B

FITTING,L-TYPE

92005-1283

$8.54

92037A

CLAMP,OVER FLOW PIPE

92037-134

$11.03

92037C

CLAMP

92037-1610

$1.64

92055B

RING-O

92055-1246

$3.57

92059

TUBE,5X9X220

92059-1836

$24.51

92192A

TUBE,5X9X40&20

92192-0480

$16.05

92192B

TUBE,L=70

92192-0588

$14.53
