Partiron

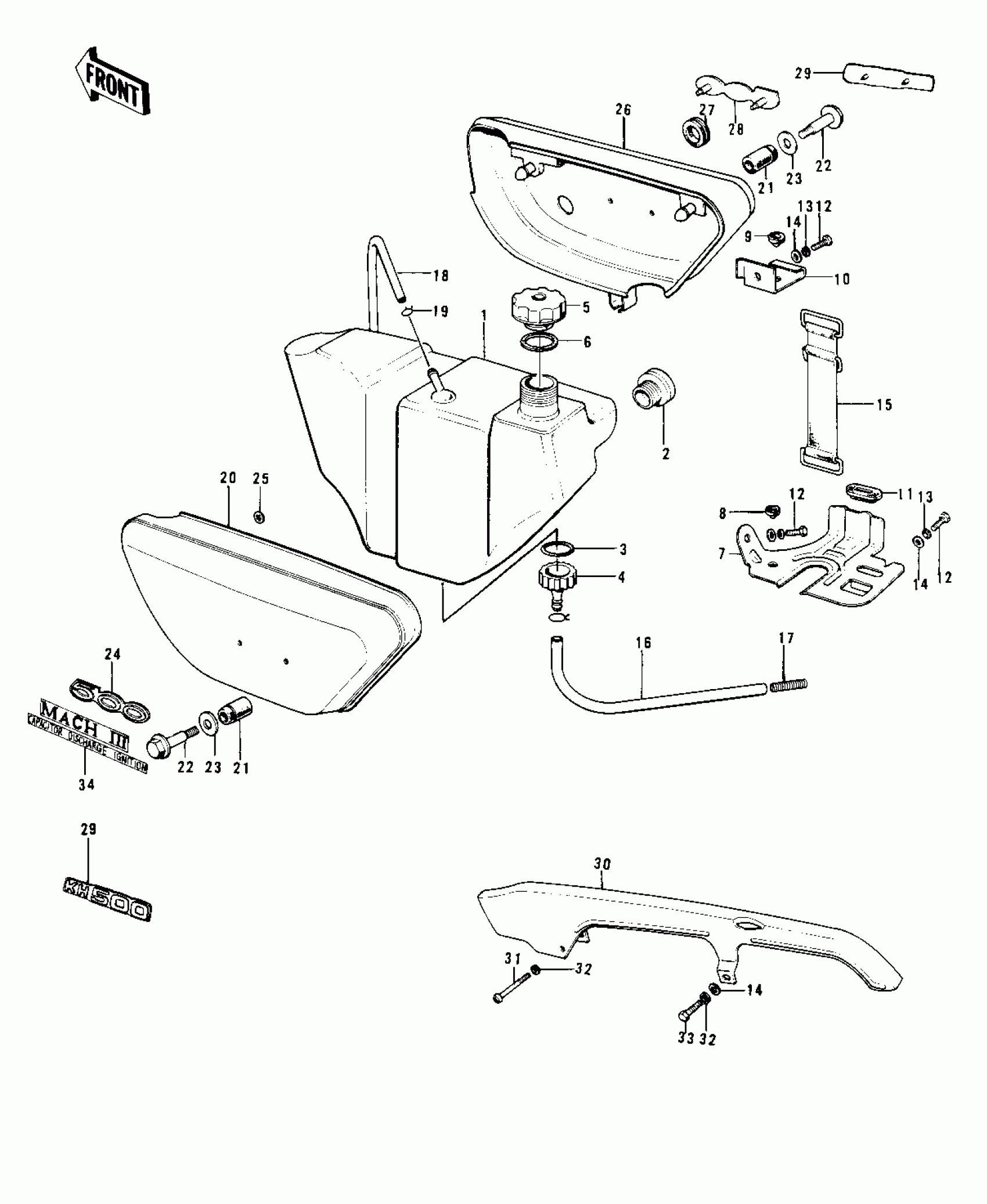

Kawasaki KH500-A8 SIDE COVERS/OIL TANK/CHAIN COVER ('73-'7 Diagram

#

Description
Price

1

TANK,OIL

52001-034

$36.80

2

GAUGE-OIL LEVEL

52015-005

$7.93

3

O RING,15MM

670B2015

$1.49

4

FILTER-OIL

52020-001

$30.64

5

CAP-OIL TANK

52003-019

$9.73

6

GASKET-OIL TANK CAP

92065-085

$4.81

7

PLATE,1.0T

31101-002

Unavailable

8

DAMPER RUBBER,PLATE

92075-183

$1.08

9

DAMPER,RUBBER

92075-078

$4.39

10

PLATE,1.6T

32101-008

Unavailable

11

DAMPER RUBBER

92075-166

Unavailable

12

BOLT-UPSET 6X14

112B0614

$1.49

13

WASHER SPRING 6MM

461F0600

Unavailable

14

WASHER PLAIN 6MM

411B0600

Unavailable

15

BAND,OIL TANK

32100-017

Unavailable

16

PIPE,OIL

92059-082

$32.64

17

SPRING PIPE CLAMP B

92081-027

Unavailable

18

TUBE-PVC,5X600

700Q05600

Unavailable

19

CLAMP,TUBE

92037-072

$7.22

20

COVER,L.H SIDE,C.LIME

36001-037-77

$107.54

20

COVER,L.H SIDE,C.RED

36001-037-1X

Unavailable

20

COVER,L.H SIDE,LIME

36001-037-1Y

Unavailable

20

COVER,L.H SIDE,BLUE

36001-037-2W

$95.03

20

COVER,L.H SIDE,GOLD

36001-037-2X

Unavailable

20

COVER,L.H SIDE D.BURG

36001-037-3T

$108.69

20

COVER,L.H SIDE,COPPER

36001-037-3U

$99.76

21

DAMPER RUBBER,SID COV

92075-184

Unavailable

22

BOLT,SIDE COVER FITT

92007-034

Unavailable

23

WASHER PLAIN 8MM

411B0800

Unavailable

24

EMBLEM,L.H SIDE COVER

56018-146

Unavailable

24

EMBLEM,L.H SIDE COVER

56018-195

Unavailable

25

NUT,SPEED,5MM

92018-004

$4.39

26

COVER,RH SIDE,C.LIME

36007-032-77

$75.83

26

COVER,RH SIDE,C.RED

36007-032-1X

$137.63

26

COVER,RH SIDE,LIME

36007-032-1Y

$105.05

26

COVER,RH SIDE,BLUE

36007-032-2W

$109.98

26

COVER,RH SIDE,GOLD

36007-032-2X

$75.51

26

COVER,RH SIDE,D.BURG

36007-032-3T

$121.16

26

COVER,RH SIDE,COPPER

36007-032-3U

$99.95

27

GROMMET-R.H SIDE COV

92071-065

$7.73

28

EMBLEM,R.H SIDE COVER

56018-147

$13.95

28

EMBLEM,R.H SIDE COVER

56018-196

Unavailable

29

EMBLEM,SIDE COVER

56018-213

Unavailable

30

CASE-CHAIN,FR BLACK

36014-046-21

$121.63

30

CASE-CHAIN

36014-053

Unavailable

31

SCREW PAN HEAD 6X50

220E0650

Unavailable

32

WASHER SPRING 6MM

461F0600

Unavailable

33

BOLT,HEX HEAD,6X14

92001-121

Unavailable

34

DECAL,SIDE COVER

56027-145-SP

$2.39

34

DECAL,SIDE COVER

56027-197-SP

Unavailable

34

DECAL,SIDE COVER

56027-198-SP

Unavailable
