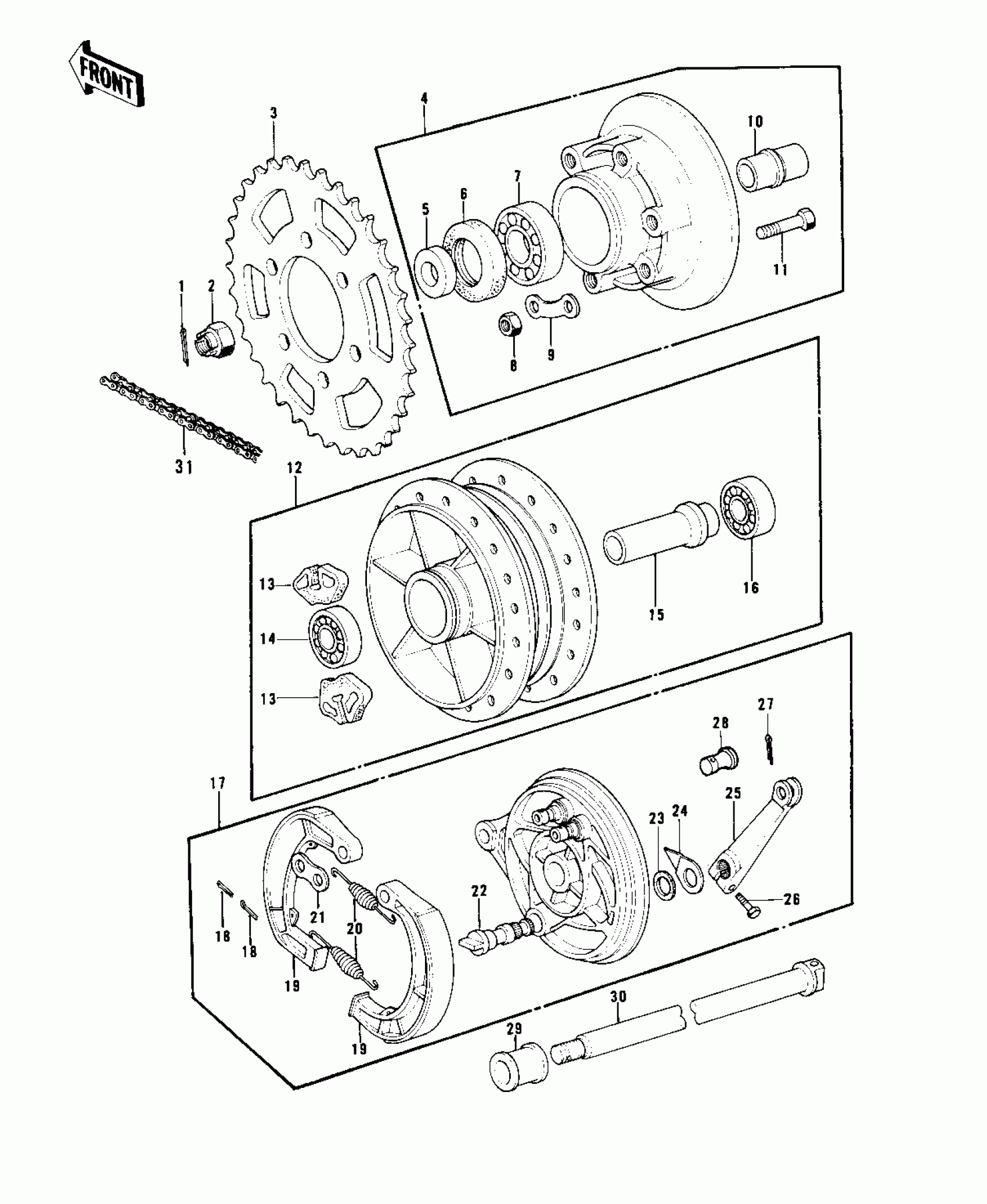

Kawasaki KH500-A8 REAR HUB/BRAKE/CHAIN ('73-'75 D/E/F & '7 Diagram

#

Description
Price

1

PIN-COTTER,4.0X35

550D4035

$1.50

2

NUT,16MM

92015-055

Unavailable

3

REAR SPROCKET 45T

42041-046

$110.51

3

RR SPROCKET 43T (OPT)

42041-047

Unavailable

3

RR SPROCKET 47T (OPT)

42041-077

Unavailable

4

COUPLING ASSY,RR HUB

42008-014

$134.02

5

COLLAR,RR AXLE SLEEVE

42037-022

Unavailable

6

SEAL-OIL,AJN40627

92050-027

$20.96

7

BEARING-BALL,#6305C3

601B6305

$25.78

8

NUT,10MM

42045-005

$7.98

9

WASHER LOCK

92088-007

$11.42

10

SLEEVE,RR HUB COUPLNG

42036-014

Unavailable

11

BOLT-REAR SPROCKET

92003-087

Unavailable

12

DRUM ASSY,RR BK,BUFF

42005-015-80

$302.06

13

DAMPER REAR HUB SHOCK

42014-014

Unavailable

14

BEARING BALL #6303Z

601B6303Z

$22.31

15

SPACER RR HUB BEARING

42010-014

Unavailable

16

BEARING BALL #6205Z

601B6205Z

Unavailable

17

PANEL-ASY,RR BRK,BUFF

42006-031-80

$256.14

17

PANEL-ASY,RR BRK,BUFF

42006-061-80

$348.50

18

PIN-COTTER,3.0X25

550D3025

Unavailable

19

SHOE,BRAKE

41048-013

Unavailable

20

SPRING,BRAKE SHOE

41049-012

$9.49

20

SPRING,BRAKE SHOE

41049-012

$9.49

21

WASHER-BRAKE SHOE

41045-006

$7.22

22

CAM SHAFT-BRAKE

41050-011

Unavailable

22

CAM-BRAKE

41050-017

Unavailable

23

SEAL,BRAKE CAM

41051-003

$4.26

24

INDICATOR,BRAKE SHOE

41085-004

$14.51

25

LEVER,REAR BRAKE CAM

42029-024

$46.51

26

BOLT-SMALL-UPSET 8X25

115G0825

Unavailable

27

PIN-COTTER,2.5X25

550D2525

Unavailable

28

PIN

92043-093

Unavailable

29

COLLAR REAR AXLE

42032-017

Unavailable

30

AXLE,REAR

42031-042

Unavailable

30

AXLE,RR

42031-053

$56.17

31

DR CHAIN 530X106 H1D

92057-038

$271.01

31

CHAIN,530X106 SH-D

92057-1044

$425.69

31

CHAIN,530X106 SH-D

92057-1044

$425.69
