1976 Kawasaki KH500-A8 Optional Parts Diagram

← All diagrams

Find the part on the Optional Parts diagram for your 1976 Kawasaki KH500-A8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

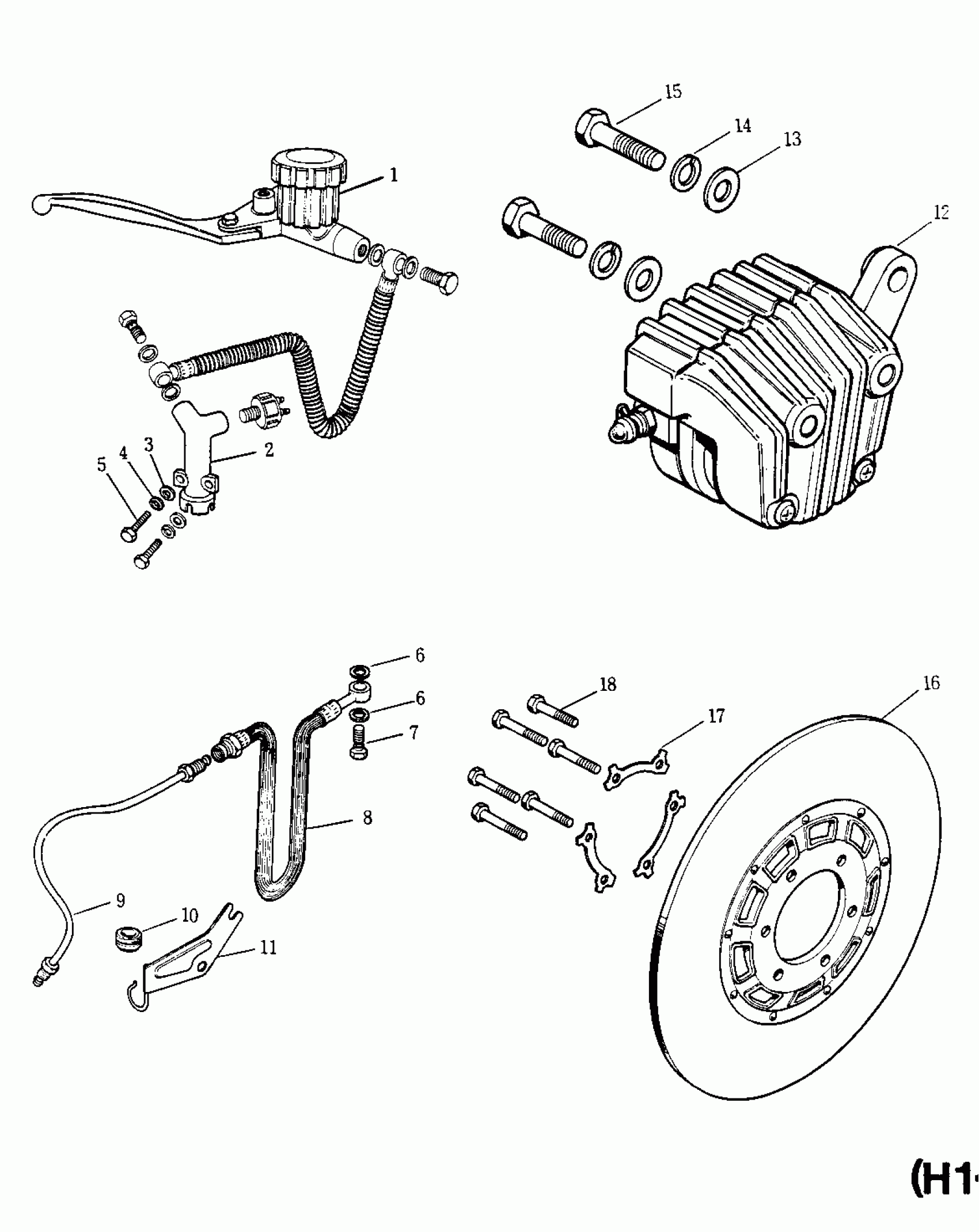

1976 Kawasaki KH500-A8 Optional Parts Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1-18

R.H. DISC BRAKES H1/2

99990-516

—
Out of stock

1

CYLINDER ASSY,MASTER

43015-018

1
Out of stock

1

CYLINDER ASSY,MASTER

43015-018

1
Out of stock

2

JOINT-FOUR WAY

43075-001

1
Out of stock

3

WASHER-PLAIN-SMALL,6MM

410B0600

—
Out of stock

4

WASHER SPRING 6MM

461F0600

—
Out of stock

5

BOLT-HEX HEAD,6X32

110N0632

1
Out of stock

6

WASHER,10.5X15X1.5

43067-001

—
Out of stock

7

BOLT,OIL,L=23

92002-1888

1
Out of stock

8

HOSE-BRAKE,L=350

43059-1262

1
Out of stock

9

PIPE-FRONT BRAKE,R.H

43060-002

1
Out of stock

10

GROMMET-HOSE BRACKET

43064-001

—
Out of stock

11

BRACKET-BRAKE HOSE

43063-003

1
Out of stock

12

CALIPER ASSY,R.H

43041-002

1
Out of stock

13

WASHER PLAIN 10MM

410B1000

—
Out of stock

14

WASHER SPRING 10MM

461F1000

—
Out of stock

15

BOLT-HEX HEAD,10X43

43070-001

1
Out of stock

16

DISC PLATE-FRONT BRK

41080-001

1
Out of stock

17

WASHER-LOCK,8MM

92088-014

1
Out of stock

18

BOLT-HEX HEAD,8X28

92001-104

1
Out of stock

18

REPAIR ASY,MASTER CY

43073-005

—
Out of stock
