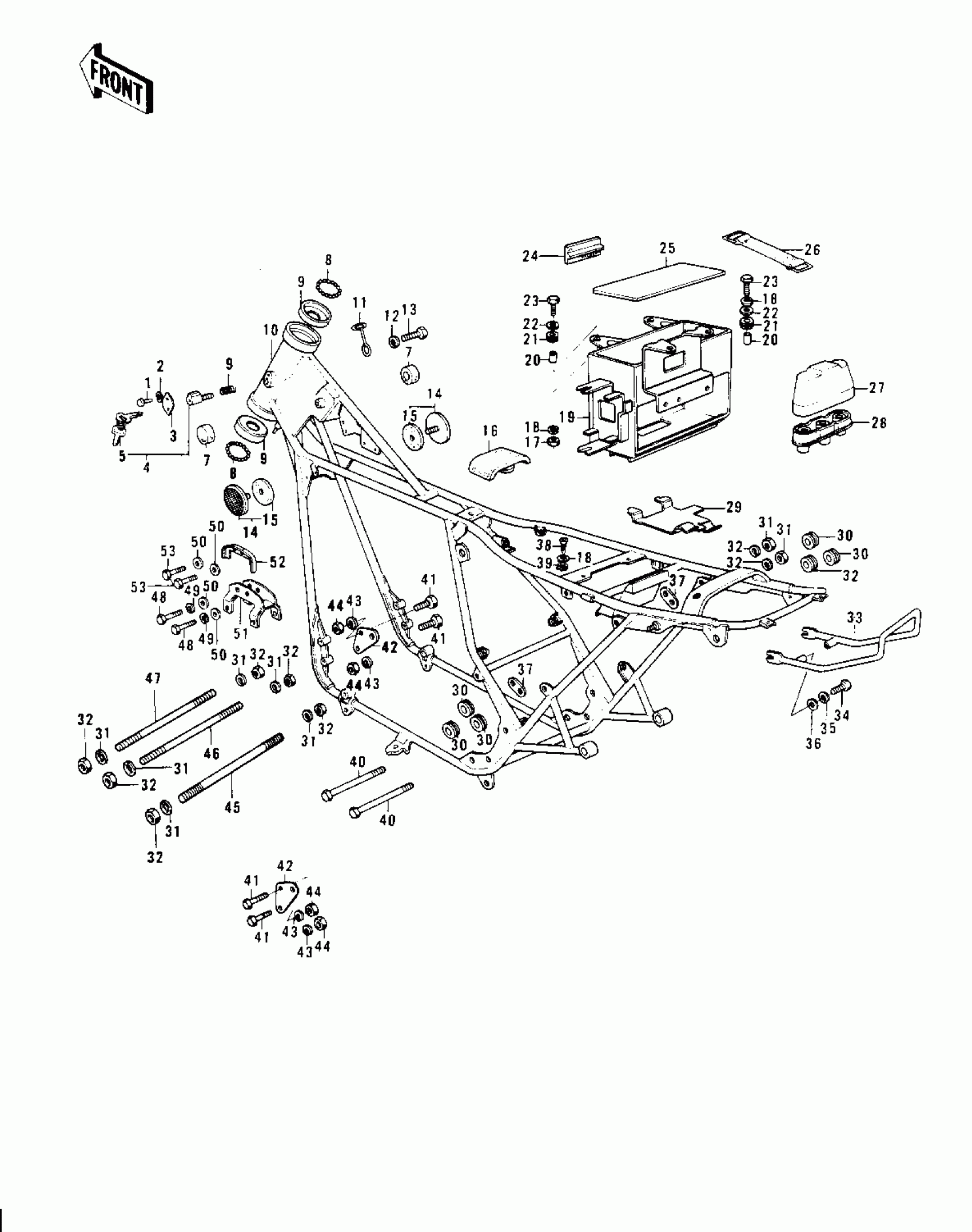

1977 Kawasaki KH400-A4 Frame/frame Fittings Diagram

← All diagrams

Find the part on the Frame/frame Fittings diagram for your 1977 Kawasaki KH400-A4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Kawasaki KH400-A4 Frame/frame Fittings Diagram

#

Description
Price
Status
Order Qty

1

SCREW,3.51MM

92008-007

Out of stock

2

WASHER,WAVE

92097-003

Out of stock

3

CAP,STEERING LOCK

11012-1134

Out of stock

4

LOCK ASSY,STEERING

27016-038

Out of stock

5

KEY SET,#901

27008-055-01

Out of stock

5

KEY SET,#910

27008-055-10

Out of stock

6

SPRING,STEERING LOCK

27032-001

Out of stock

7

DAMPER,FUEL TANK

92075-101

Out of stock

8

BALL-STEEL,1/4

600A0800

Out of stock

9

RACE,STEERING STEM BEARING

92048-006

Out of stock

10

FRAME

32002-133

Out of stock

11

CLAMP

92037-108

Out of stock

12

WASHER SPRING 6MM

461F0600

Out of stock

13

BOLT-UPSET,6X12

112G0612

Out of stock

14

REFLECTOR,REFLEX

28001-026

Out of stock

15

DAMPER,REFLECTOR

92094-011

Out of stock

16

DAMPER RUBBER,FL TANK

92075-214

Out of stock

17

NUT 6MM

311B0600

Out of stock

18

WASHER SPRING 6MM

461F0600

Out of stock

19

CASE,BATTERY

32097-037

Out of stock

20

COLLAR,6.8X10X8.5

92027-129

Out of stock

21

DAMPER RUBBER

92075-076

Out of stock

22

WASHER,6.5X20X1.6

92022-125

Out of stock

23

BOLT 6X22

112B0622

Out of stock

24

SEAT RECTIFIER RUBBER

32103-003

Out of stock

25

MAT BATTERY

32103-006

Out of stock

26

BAND,L=90

92072-045

Out of stock

26

BAND,L=90

92072-045

Out of stock

27

COVER-SPARK PLUG

32132-003

Out of stock

28

HOLDER-SPARK PLUG COV

32132-002

Out of stock

29

BRACKET,FUSE CASE

32116-004

Out of stock

30

GROMMET

92071-056

Out of stock

31

NUT-HEX-FINE,10MM

314B1000

Out of stock

32

WASHER SPRING 10MM

461F1000

Out of stock

33

STAY,REAR FENDER

35032-028

Out of stock

34

BOLT,8X20

115G0820

Out of stock

35

WASHER SPRING 8MM

461F0800

Out of stock

36

WASHER PLAIN 8MM

411B0800

Out of stock

37

PLATE-ENGINE MOUNT

32030-023

Out of stock

38

SCREW-PAN-CROS,6X14

220B0614

Out of stock

39

WASHER LOCK 6MM

464H0600

Out of stock

40

BOLT,FLANGED,10X110

92001-1602

Out of stock

41

BOLT,10X45

92001-1182

Out of stock

41

BOLT,10X45

92001-1182

Out of stock

42

PLATE,ENGINE MOUNT,FR

32030-030

Out of stock

43

WASHER SPRING 8MM

461F0800

Out of stock

44

NUT,8MM

311B0800

Out of stock

45

BOLT,10X237

92003-182

Out of stock

45

BOLT,10X237

92003-182

Out of stock

46

BOLT,10X252

92003-209

Out of stock

46

BOLT,10X252

92003-209

Out of stock

47

BOLT,10X225

92003-181

Out of stock

47

BOLT,10X225

92003-181

Out of stock

48

BOLT-UPSET

112G0630

Out of stock

49

WASHER SPRING 6MM

461F0600

Out of stock

50

WASHER PLAIN 6MM

411B0600

Out of stock

51

BRACKET,IGNITION COIL

32058-052

Out of stock

52

BRACKET,IGNITION COIL

32058-053

Out of stock

53

BOLT-UPSET,6X16

112G0616

Out of stock
