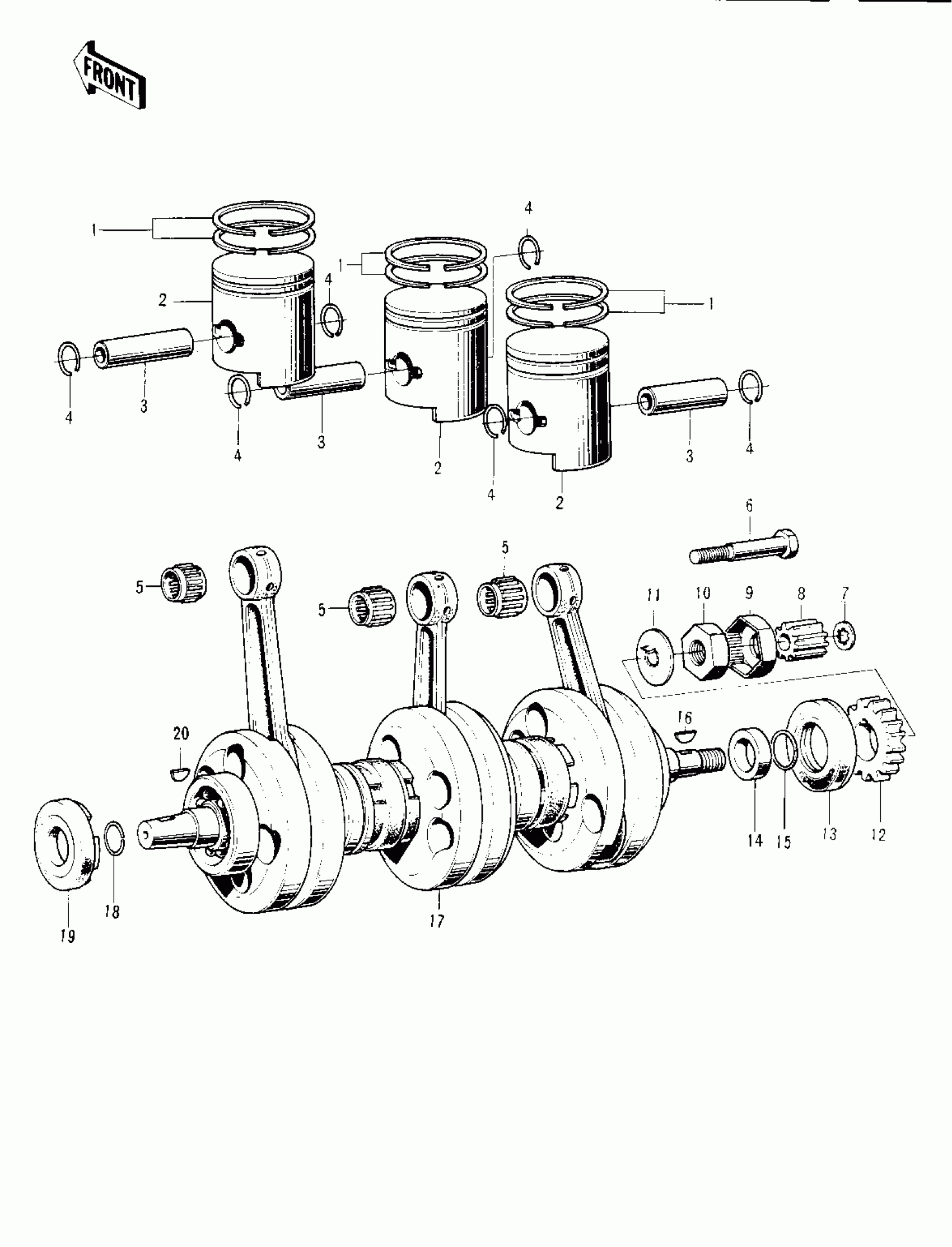

Find the part on the Crankshaft/pistons diagram for your 1976 Kawasaki KH250-A5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Kawasaki KH250-A5 Crankshaft/pistons Diagram

#

Description
Price
Status
Order Qty

1

RING SET,STD

13008-033

Out of stock

1

RING SET,0.040'O.S

13024-041

Out of stock

1

RING SET,0.020'O.S

13025-038

Out of stock

2

PISTON,STD

13001-056

Out of stock

2

PISTON,0.040'O.S

13027-055

Out of stock

2

PISTON,0.020' O.S

13029-057

Out of stock

3

PIN-PISTON

13002-021

Out of stock

4

RING-SNAP

92036-005

Out of stock

5

NEEDLE BEARING SM END

13033-007

Out of stock

6

BOLT-OIL PUMP GEAR

92003-068

Out of stock

7

WASHER LOCK 6MM

463H0600

Out of stock

8

PINION-OIL PUMP

16084-014

Out of stock

9

WASHER LOCK

92024-021

Out of stock

10

NUT,18MM

92015-019

Out of stock

11

WASHER,LOCK,18MM

92024-067

Out of stock

12

PINION-PRIMARY

13121-021

Out of stock

13

OIL SEAL,TC326210

92050-052

Out of stock

14

COLLAR CRANK OIL SEAL

92027-031

Out of stock

15

"0" RING,22MM

92055-018

Out of stock

16

WOODRUFF KEY

92038-015

Out of stock

17

CRANK CONROD ASSY

13031-1008

Out of stock

18

CIRCLIP

92036-013

Out of stock

19

OIL SEAL TCY256210

92050-041

Out of stock

20

KEY,WOODRUFF

92038-001

Out of stock
