1977 Kawasaki KH100-B8 Swing Arm/shock Absorbers Diagram

← All diagrams

Find the part on the Swing Arm/shock Absorbers diagram for your 1977 Kawasaki KH100-B8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

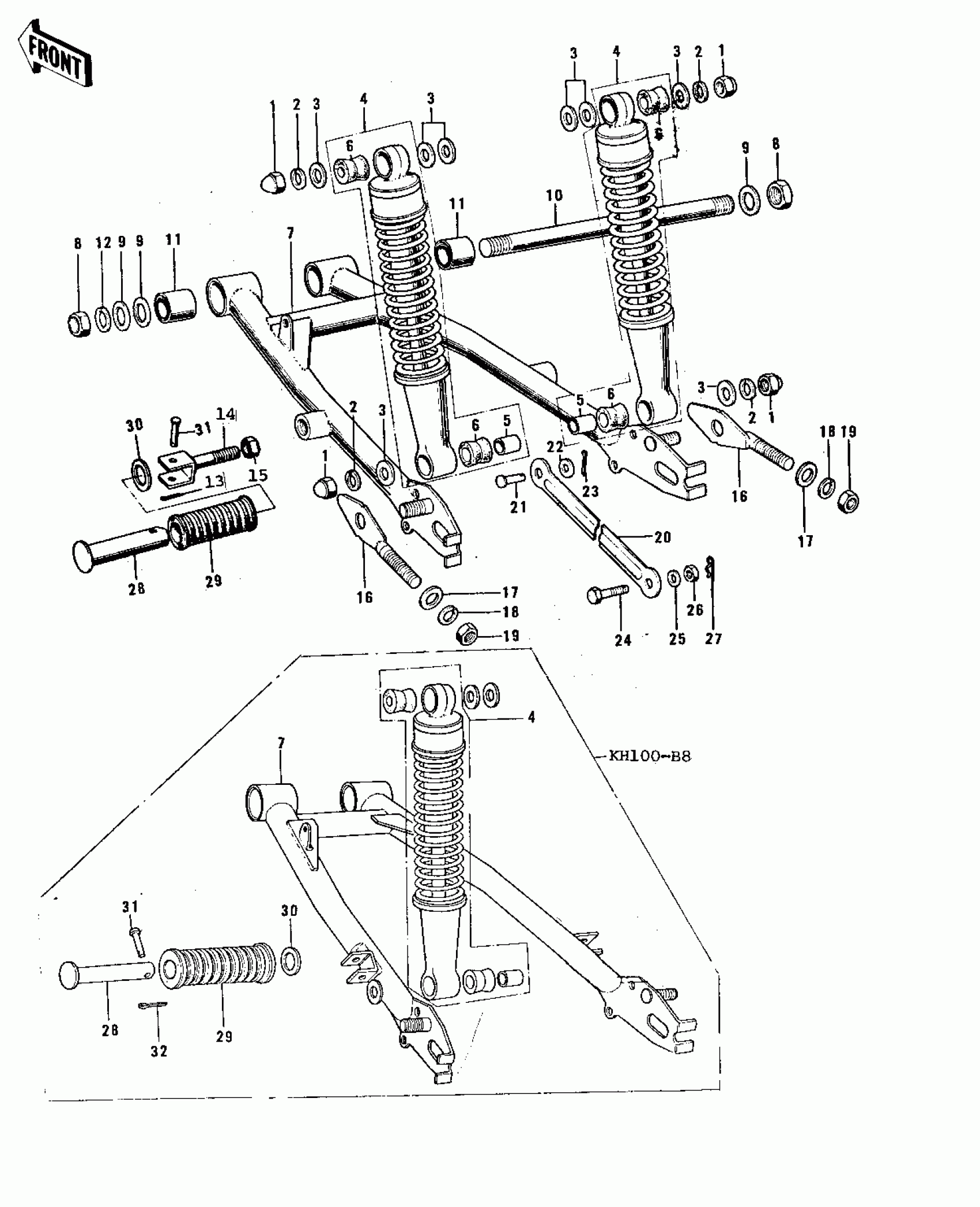

1977 Kawasaki KH100-B8 Swing Arm/shock Absorbers Diagram

#

Description
Price
Status
Order Qty

1

NUT,CAP,12MM

92020-014

Out of stock

2

WASHER-SPRING,12MM

461F1200

Out of stock

3

WASHER PLAIN 12MM

411B1200

Out of stock

4

SHOCK ABSBR RR

45014-038

Out of stock

4

SHOCK ABSBR RR

45014-124

Out of stock

5

BUSHING,SHOCK ABSORB

45016-007

Out of stock

6

BUSHING,SHOK ABN RUB

45017-014

Out of stock

7

ARM,SWING

33001-023

Out of stock

7

ARM,SWING

33001-093

Out of stock

8

NUT-HEX-FINE,10MM

314B1000

Out of stock

9

WASHER PLAIN 10MM

410B1000

Out of stock

10

SHAFT SWING ARM PIVOT

33032-009

Out of stock

11

BUSH SWING ARM SHAFT

92092-006

Out of stock

12

WASHER SPRING 10MM

461F1000

Out of stock

13

PIN COTTER 2.0X15

550D2015

Out of stock

14

BRACKET,REAR FOOTREST

33028-011

Out of stock

15

NUT-HEX-FINE

315B1200

Out of stock

16

ADJUSTER CHAIN

33040-008

Out of stock

17

WASHER-PLAIN-SMALL,6MM

410B0600

Out of stock

18

WASHER SPRING 6MM

461F0600

Out of stock

19

NUT 6MM

311B0600

Out of stock

20

TORQUE LINK REAR BRK

43007-007

Out of stock

21

PIN,SPRING,10X12

43009-001

Out of stock

22

WASHER PLAIN 10MM

410B1000

Out of stock

23

PIN-COTTER,2.5X20

550D2520

Out of stock

24

BOLT,10X32

92003-003

Out of stock

25

WASHER SPRING 10MM

461F1000

Out of stock

26

NUT-HEX-FINE,10MM

314B1000

Out of stock

27

PIN-SNAP,8MM

554A0800

Out of stock

28

STEP,RR

34028-009

Out of stock

29

RUBBER,REAR FOOTREST

92076-024

Out of stock

30

WASHER-PLAIN (OPT)

92022-199

Out of stock

31

PIN,6X28

92043-1464

Out of stock
