1977 Kawasaki KH100-B8 Engine Covers Diagram

← All diagrams

Find the part on the Engine Covers diagram for your 1977 Kawasaki KH100-B8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

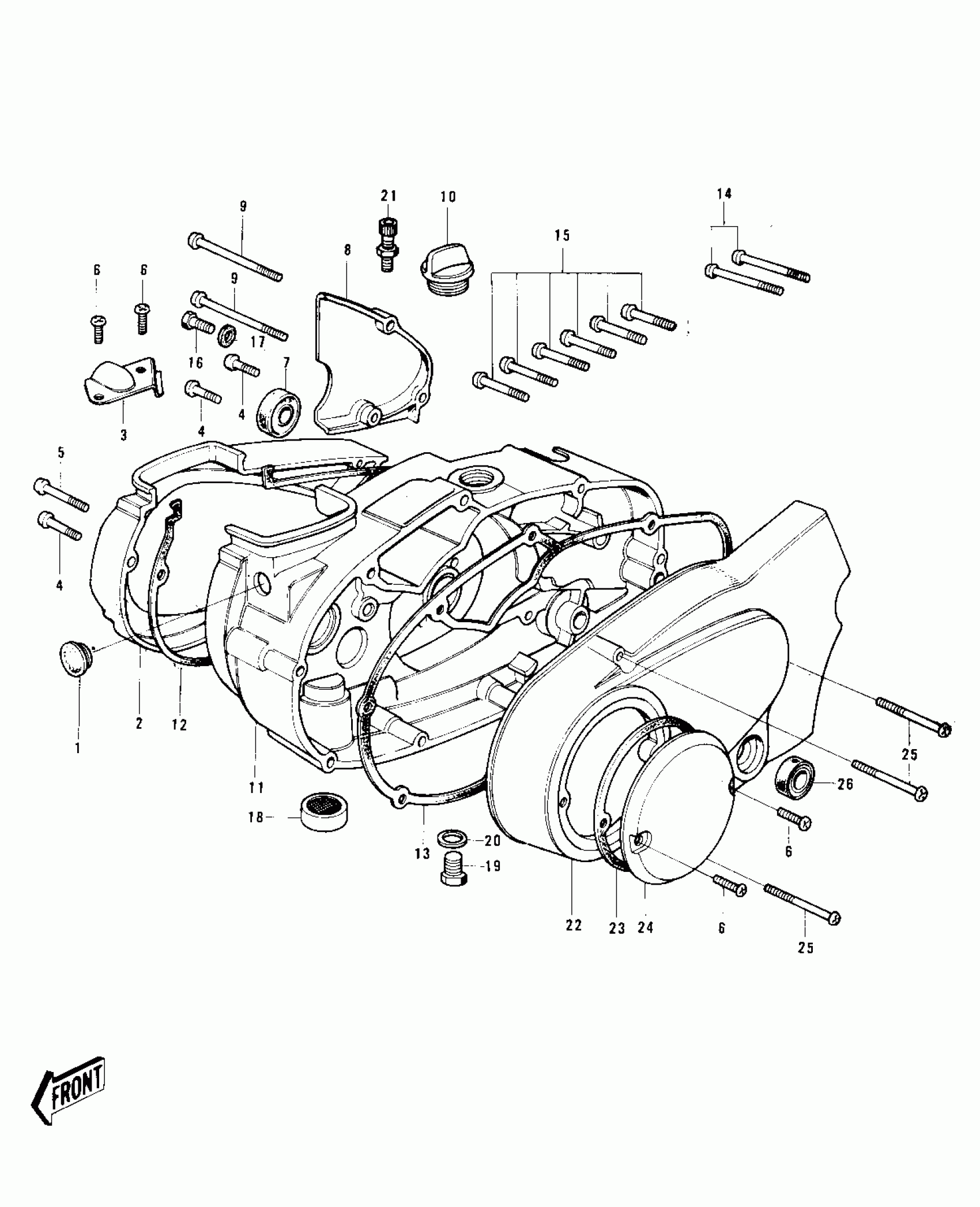

1977 Kawasaki KH100-B8 Engine Covers Diagram

#

Description
Price
Status
Order Qty

1

CAP,RUBBER

14039-001

Out of stock

2

COVER,CARB BARREL

14030-1005

Out of stock

3

COVER,CLUTCH CABLE

14076-005

Out of stock

3

COVER,DRAIN PLUG

14025-1137

Out of stock

4

SCREW-PAN-CROS,6X20,WHITE

220B0620

Out of stock

5

SCREW PAN HEAD 6X35

220B0635

Out of stock

6

SCREW PAN HEAD 6X12

220B0612

Out of stock

7

OIL SEAL TB14257

653B142507

Out of stock

8

COVER,OIL PUMP,BUFF

14030-050-80

Out of stock

9

SCREW-PAN-CROS,6X75

220B0675

Out of stock

10

CAP-OIL FILLER

16115-018

Out of stock

11

COVER,R.H,ENG,BARREL

14032-1017

Out of stock

12

GASKET,CARBURETOR COVER

11060-1201

Out of stock

13

GASKET,CLUTCH COVER

11060-1198

Out of stock

14

SCREW PAN HEAD 6X45

220B0645

Out of stock

15

SCREW PAN HEAD 6X30

220B0630

Out of stock

16

BOLT,HEX HEAD,6X14

92001-121

Out of stock

17

WASHER OIL PUMP BANJO

92022-077

Out of stock

18

PLUG,25X12

16116-006

Out of stock

19

PLUG,DRAIN,10X12

92067-001

Out of stock

20

GASKET,10.5X16X1

92065-058

Out of stock

21

ADJUSTER-CABLE

16002-012

Out of stock

22

COVER,GENERATOR

14031-1034

Out of stock

23

GASKET BREAKER COVER

14050-002

Out of stock

24

COVER-BRK POINT,CR

14027-007-79

Out of stock

25

SCREW PAN HEAD 6X40

220B0640

Out of stock

26

SEAL-OIL

92049-1249

Out of stock
