1977 Kawasaki KH100-B8 Carburetor Diagram

← All diagrams

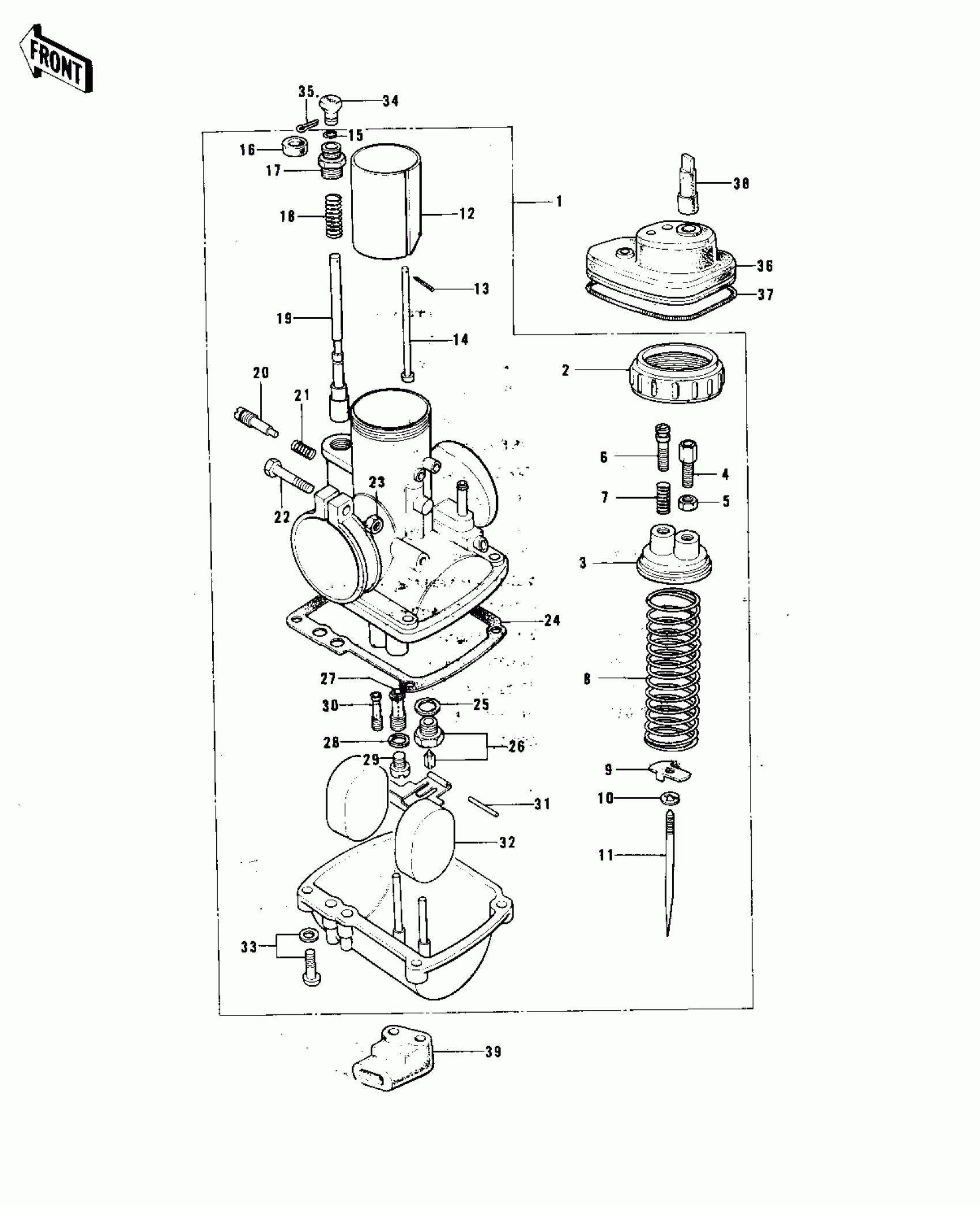

Find the part on the Carburetor diagram for your 1977 Kawasaki KH100-B8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Kawasaki KH100-B8 Carburetor Diagram

#

Description
Price
Status
Order Qty

1

CARBURETOR ASSY,

16001-230

Out of stock

2

CAP-CHAMBER,MIXING

16004-010

Out of stock

3

TOP-CHAMBER,MIXING

16005-005

Out of stock

4

CABLE ADJUSTER

16002-002

Out of stock

4

ADJUSTER-CABLE

16002-017

Out of stock

5

NUT,CABLE ADJUST LOCK

16003-004

Out of stock

6

SCREW-THROTTLE STOP

16021-002

Out of stock

7

SPRING,THROTTLE STOP SCREW

16022-005

Out of stock

8

SPRING,THROTTLE VALVE

16006-013

Out of stock

9

SEAT-SPRING,THROTTLE VALVE

16007-020

Out of stock

10

CLAMP,E-TYPE

16008-010

Out of stock

11

NEEDLE-JET,4EJ7

16009-059

Out of stock

12

VALVE-THROTTLE,CA2.0

16025-057

Out of stock

13

PIN COTTER 1.2X10

550D1210

Out of stock

14

ROD,THROTTLE VLV STP

16024-012

Out of stock

15

CLAMP

92037-1077

Out of stock

16

BOOT,STARTER PLUNGER

16036-012

Out of stock

17

CAP-STARTER PLUNGER

16012-021

Out of stock

18

SPRING,STARTER PLUNGER

16013-010

Out of stock

19

PLUNGER,STARTER

16016-012

Out of stock

20

SCREW-PILOT AIR

16014-002

Out of stock

21

SPRING,PILOT AIR SCREW

16022-007

Out of stock

22

SCREW,CLAMP

16010-004

Out of stock

23

NUT 6MM

311B0600

Out of stock

23

NUT 6MM

311B0600

Out of stock

24

GASKET,FLOAT CHAMBER

16019-021

Out of stock

25

GASKET,FLOAT VALVE SEAT

16029-002

Out of stock

26

VALVE-FLOAT,#2.0

16030-001

Out of stock

26

FLOAT VALVE ASSY

16030-009

Out of stock

27

NEEDLE JET O-Z

16017-068

Out of stock

28

WASHER,MAIN JET

16034-001

Out of stock

29

JET-MAIN,#A77.5R

92063-1032

Out of stock

29

MAIN JET NO 72.5R

92063-108

Out of stock

29

JET-MAIN,#75R

92063-109

Out of stock

29

JET-MAIN,#A80R

92063-1030

Out of stock

29

JET-MAIN,#82.5R

92063-124

Out of stock

30

JET-PILOT,#17.5

92064-020

Out of stock

31

PIN,FLOAT

16032-003

Out of stock

32

FLOAT

16031-015

Out of stock

33

SCREW-FLOAT CHAMBER

16033-012

Out of stock

34

KNOB,CARBURETOR

92077-022

Out of stock

35

PIN-COTTER,1.6X15

550D1615

Out of stock

36

BOOT,CARBURETOR

14038-035

Out of stock

37

SPRING COIL

92081-047

Out of stock

38

PLUG,12X40

16147-001

Out of stock

39

GROMMET,OVERFLOW PIPE

16136-007

Out of stock
