2005 Kawasaki KFX80 Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 2005 Kawasaki KFX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

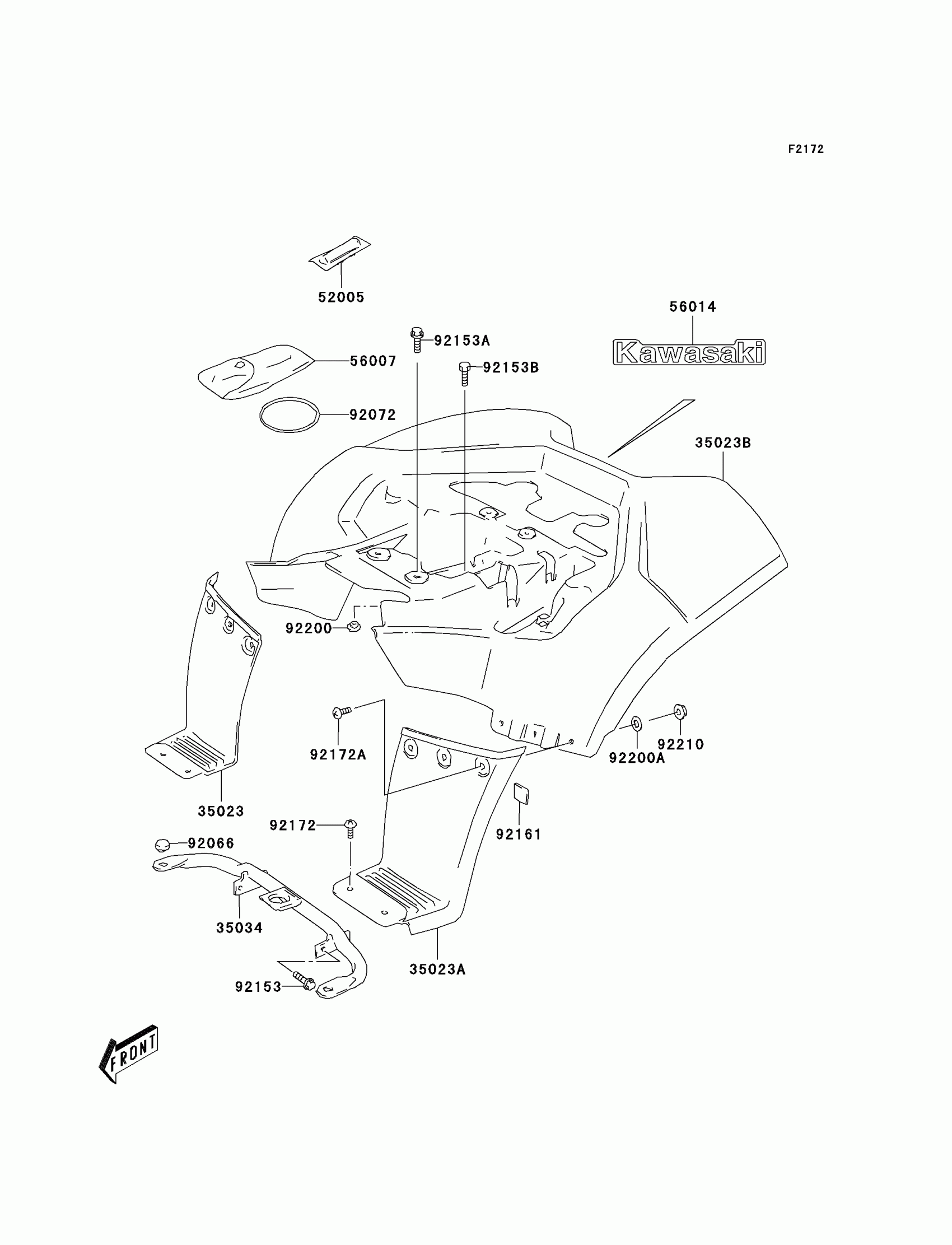

2005 Kawasaki KFX80 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35023

FENDER-REAR,BLACK

35023-S006-504

1
Out of stock

35023A

FENDER-REAR,BLACK

35023-S007-504

1
Out of stock

35023B

FENDER-REAR,L.GREEN

35023-S008-535

1
Out of stock

35034

REINFORCE,REAR FENDER

35034-S003

1
Out of stock

52005

GAUGE,AIR

52005-S005

1
Out of stock

56007

TOOL-KIT

56007-S004

1
Out of stock

56014

EMBLEM,BLACK/GREEN

56014-S012-554

1
Out of stock

92066

PLUG

92066-S026

1
Out of stock

92072

BAND,TOOL

92072-S006

1
Out of stock

92153

BOLT

92153-S012

1
Out of stock

92153A

BOLT,REAR FENDER

92153-S227

1
Out of stock

92153B

BOLT,REAR FENDER

92153-S228

1
Out of stock

92161

DAMPER

92161-S077

1
Out of stock

92172

SCREW,FRONT FENDER

92172-S152

1
Out of stock

92172A

SCREW,REAR FENDER

92172-S158

1
Out of stock

92200

WASHER

92200-S018

1
Out of stock

92200A

WASHER,REAR FENDER

92200-S119

1
Out of stock

92210

NUT

92210-S066

1
Out of stock
