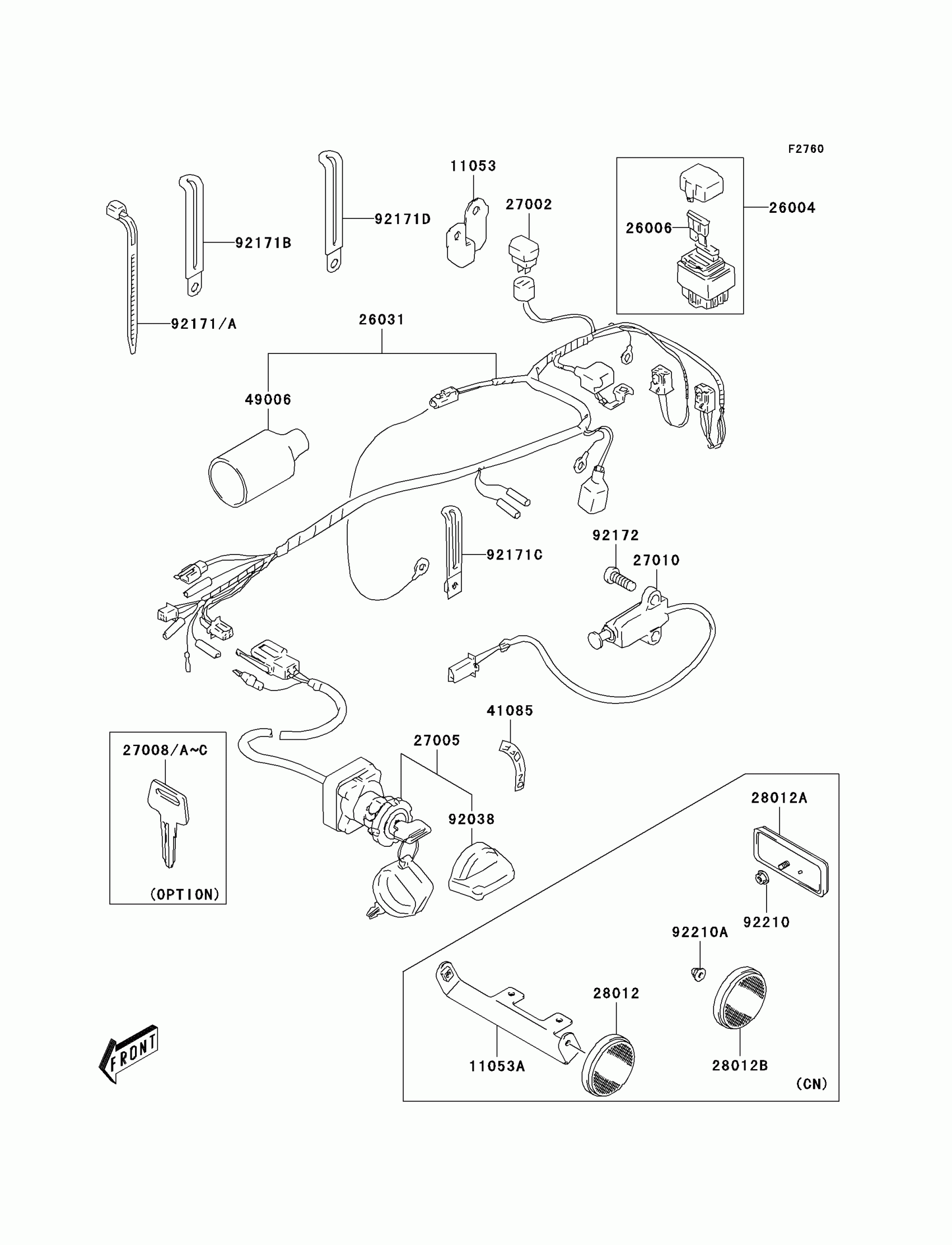

Kawasaki KFX80 Chassis Electrical Equipment Diagram

Description

Price

11053

BRACKET

11053-S005

$11.12

26004

FUSE-ASSY

26004-S001

$20.81

26006

FUSE,5A

26006-S005

$1.71

26031

HARNESS

26031-S001

$134.18

27002

RELAY-ASSY

27002-S004

$33.26

27005

SWITCH-ASSY-IGNITION

27005-S004

$116.16

27008

KEY-LOCK,BLANK,(TYPE:C)

27008-S002

$8.47

27008A

KEY-LOCK,BLANK,(TYPE:D)

27008-S003

$8.47

27008B

KEY-LOCK,BLANK(TYPE:E)

27008-S006

Unavailable

27008C

KEY-LOCK,BLANK(TYPE:F)

27008-S007

$8.47

27010

SWITCH,PARKING BRAKE

27010-S017

$99.42

41085

INDICATOR

41085-S003

$2.86

49006

BOOT

49006-S018

$7.47

92038

COVER,KEY

92038-S005

$11.90

92171

CLAMP,L=125

92171-S014

$2.36

92171A

CLAMP,L=165

92171-S016

Unavailable

92171C

CLAMP,L=95

92171-S055

Unavailable

92171D

CLAMP

92171-S080

$3.78

92171E

CLAMP,WIRING HARNESS

92171-S081

$2.90

92172

SCREW

92172-S150

$1.64

11053A

BRACKET

11053-S009

Unavailable

28012

REFLECTOR-REFLEX,FR

28012-S001

Unavailable

28012A

REFLECTOR-REFLEX,RR

28012-S003

$19.81

28012B

REFLECTOR-REFLEX,REAR SIDE

28012-S004

Unavailable

92210

NUT

92210-S067

$1.64

92210A

NUT

92210-S097

$1.64
