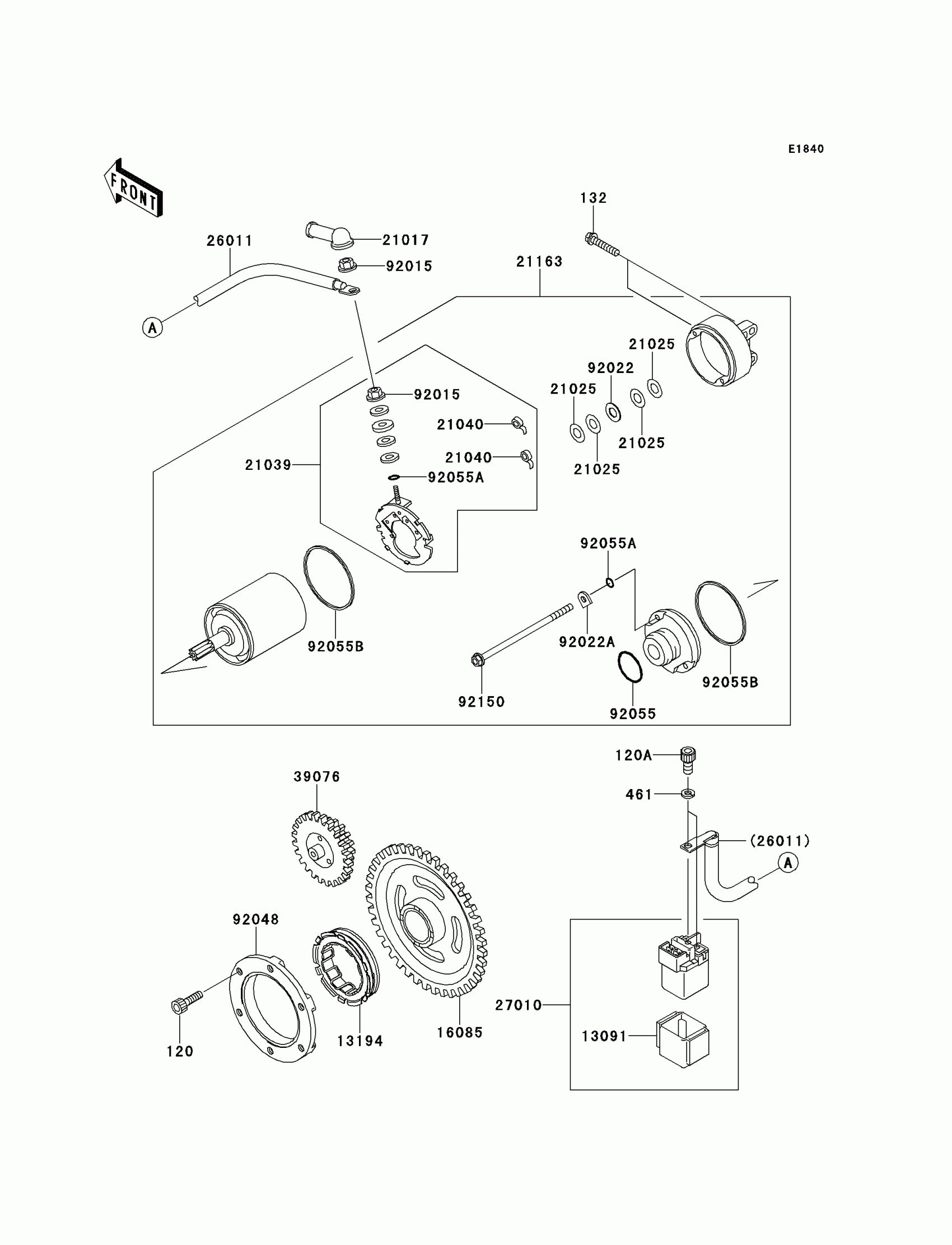

Kawasaki KFX700 Starter Motor(A6F) Diagram

#

Description
Price

120

BOLT-SOCKET,8X16

120CA0816

$3.39

120A

BOLT-SOCKET,5X10

120CB0510

Unavailable

132

BOLT-FLANGED-SMALL,6X30

132BD0630

$2.79

461

WASHER-SPRING,5MM

461DB0500

$1.29

13091

HOLDER

13091-1992

$7.47

13194

CLUTCH-ONEWAY

13194-1094

$121.07

16085

GEAR,STARTER

16085-1238

$120.08

21017

GROMMET,STARTER TERMINAL

21017-017

$7.18

21025

WASHER,9.1X18X0.2

21025-011

$4.67

21039

BRUSH,CARBON

21039-1063

$87.50

21040

SPRING-BRUSH

21040-1057

$8.24

21163

STARTER-ELECTRIC

21163-1320

Unavailable

26011

WIRE-LEAD

26011-1845

$77.75

27010

SWITCH,MAGNETIC

27010-1376

Unavailable

39076

LIMITER,STARTER

39076-0005

$221.89

92015

NUT,STARTER MOTOR

92015-1476

$3.85

92022

WASHER,9.1X18X0.8

92022-1132

$5.42

92022A

WASHER,LOCK,T=2.0

92022-1458

$5.64

92048

RACE,ONE WAY CLUTCH

92048-0002

$103.98

92055

RING-O

92055-1276

$7.54

92055A

RING-O,4.5X2.0

92055-1370

$4.17

92055B

RING-O,STARTER MOTOR

92055-1381

$9.58

92150

BOLT

92150-1243

$10.49
